ECU ECU-57N - Engine Rest Cycle; Rest Cycle Functionality; Crank Disconnect; Crank Disconnect Trigger

•
•
•
ENGINE
REST
CYCLE
FUEL RELAY
START RELAY
HIGH WATER TEMP
LOW OIL
PRESS
MAGNETIC
PICKUP
REMOTE
START
CONTACTS
6
5
4
3
1
15 14 13 X1
FOR
INFORMATION
ON SETUP
OF
POTS AND
SWITCHES SEE
ADJUSTMENTS
PAGE
AUTO
OFF
MANUAL
LOW OIL PRESSURE LAMP
HIGH WATER TEMP LAMP
OVERCRANK LAMP
OVERSPEED
LAMP
ENGINE STARTED LAMP
COMMON ALARM LAMP

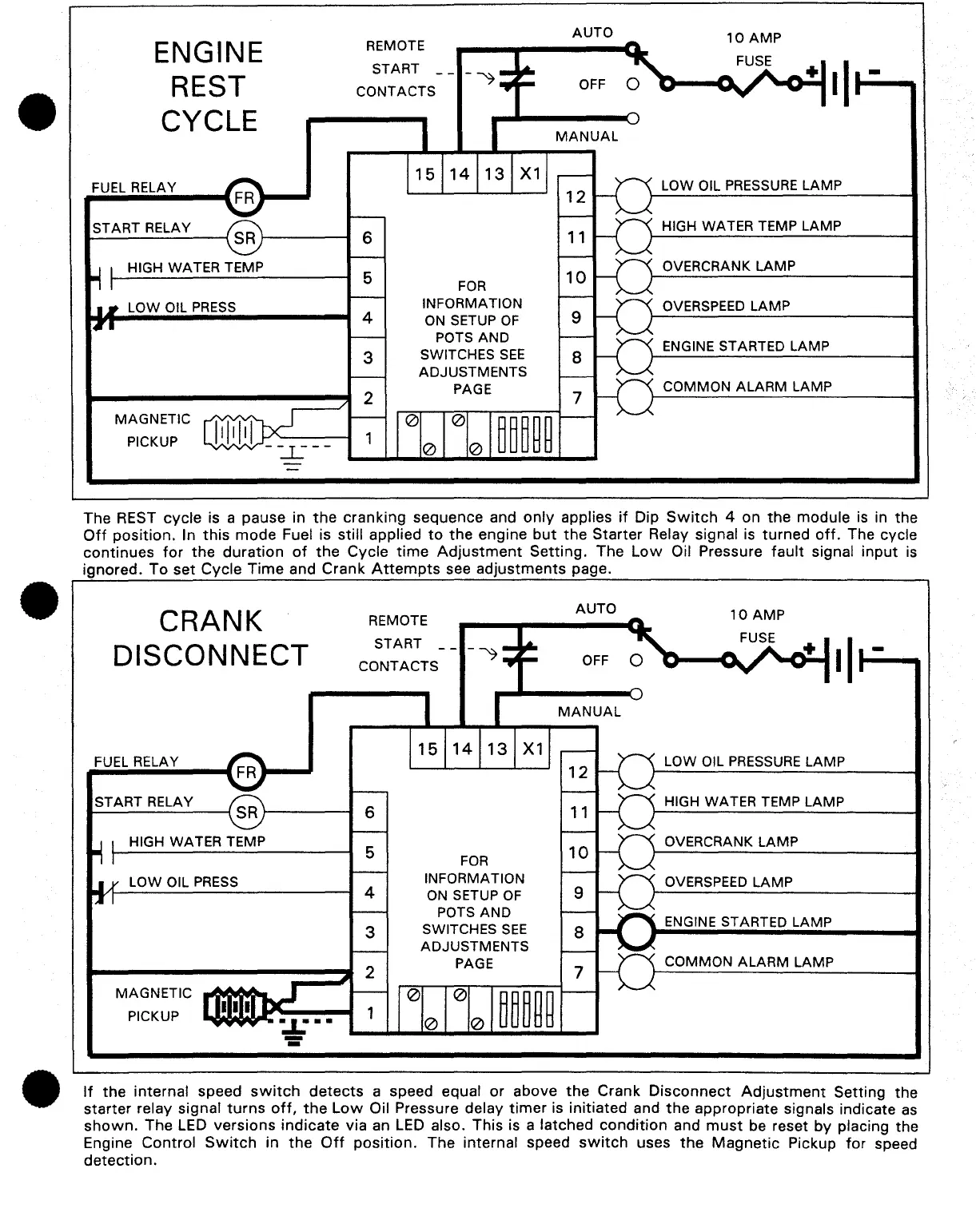

The REST cycle is a pause in the cranking sequence and only applies if Dip Switch 4 on the module is in the
Off position. In this mode Fuel is still applied to the engine but the Starter Relay signal is turned off. The cycle
continues for the duration of the Cycle time Adjustment Setting. The Low Oil Pressure fault signal input is
ignored. To set Cycle Time and Crank Attempts see adjustments page .
CRANK
DISCONNECT
FUEL RELAY
START RELAY
HIGH WATER TEMP
LOW OIL PRESS
MAGNETIC
PICKUP
REMOTE
START
CONTACTS
6
5
4
3
1
15 14 13 X1
FOR
INFORMATION
ON SETUP
OF
POTS AND
SWITCHES SEE
ADJUSTMENTS
PAGE
AUTO
OFF
MANUAL
LOW OIL PRESSURE LAMP
HIGH WATER TEMP LAMP
OVERCRANK
LAMP
OVERSPEED LAMP
ENGINE STARTED LAMP
COMMON
ALARM LAMP
If the internal speed switch detects a speed equal or above the Crank Disconnect Adjustment Setting the
starter relay signal
turns off, the Low Oil Pressure delay timer is initiated and the appropriate signals indicate as
shown. The LED versions indicate via an LED also. This is a latched condition and must be reset by placing the
Engine Control
Switch in the Off position. The internal speed switch uses the Magnetic Pickup for speed
detection.
