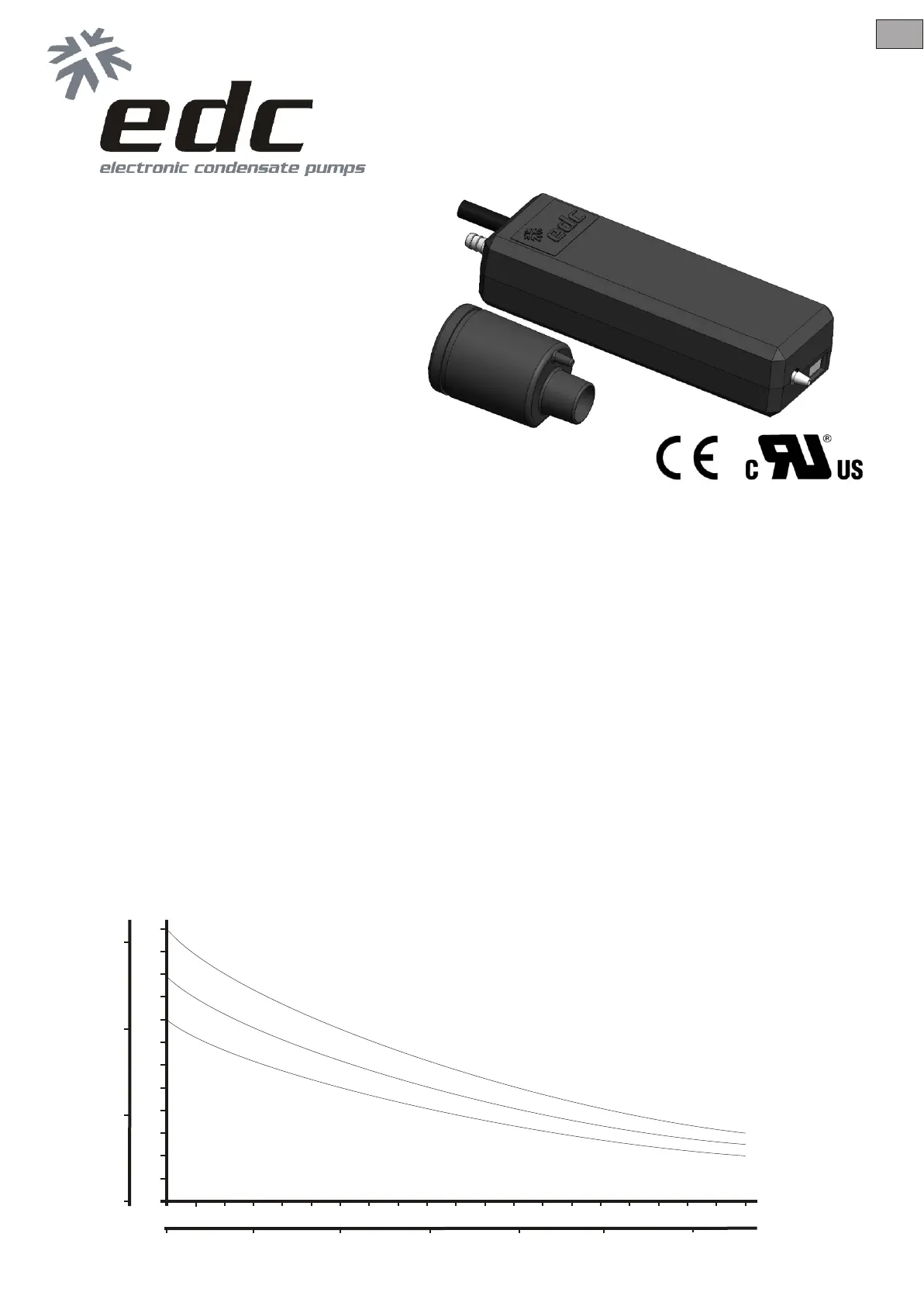

PANTHER
Condensate removal pump
Installation and operating guide
The PANTHER is a self-contained
condensate removal system for use
directly inside trunking and high-
wall-mount air conditioners.The
small remote sensor can be fitted
inside the air handler whilst the
pump unit can be positioned
elsewhere.
2 3 4 5 6 71 9 10 11 12 13 148 16 17 18 19 2015
1
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
30 40 5010
60
20
0
0
0
0
Vertical lift
(m)
(ft)
Flow rate
(l/h)
(US gal/h))
0m Horiz
50m Horiz
100m Horiz
Capacity
Specifications
Power supply: 120/240Vac, 50/60Hz Auto sensing
Power consumption: 16W max., 0.25W when idle
Alarm relay: 5A, 30Vdc, 250Vac Break on fault
Capacity: 12 litres/hour max. (3.17 US gal/h)
Maximum head: Vertical >20m (65 ft), Horizontal >100 m (328 ft)
Suction 1 m max. (3.28 ft)
Ambient temp: 0 - 40°C
Water temp: 25°C max.
Material: Flame retardant ABS UL94 5VA
Discharge tube: 6mm (1/4”) ID
Dimensions: Pump: 135 x 46 x 32mm (5.3” x 1.8” x 1.26”)
Sensor: 45 x 36mm dia. (1.8” x 1.4” dia.)
IP: 20
GB
1
