edc PANTHER - Operation; Sensor Installation

To Next Page

To Previous Page

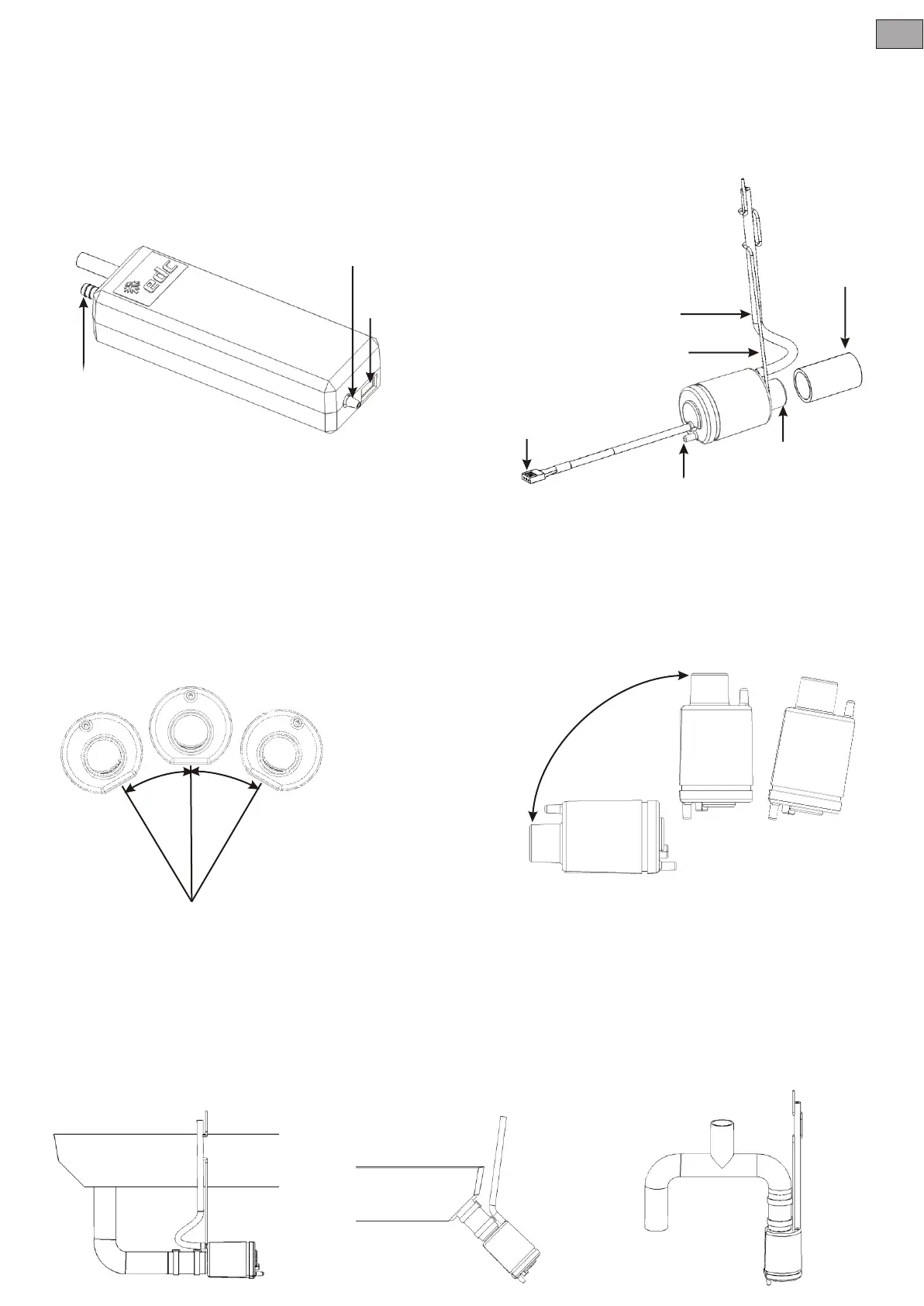

Fig.1.

Pump outlet

Pump inlet (from sensor)

Sensor

socket

Sensor

plug

Breather tube

Breather support

Sensor

inlet

Inlet

connector

Sensor

outlet

Pump

Sensor

Operation

The PANTHER sensor will automatically start the pump when condensate is detected and

stop the pump when the condensate has been removed. The PANTHER sensor is also

fitted with a high water level alarm that will operate the alarm relay if the water level rises

to abnormal levels. The pump will continue to run until the minimum water level is reached

and then the alarm will reset.

The PANTHER sensor can be positioned in any suitable location within the equipment

below the level of the collection tray. The top of the breather tube should be positioned

above the highest level that the condensate may reach. Three typical installations are

shown below. (Fig.4) Horizontal mounting, typical of high wall mounted fan units. (Fig.5)

Angled, typical of direct mounting to collection tray. (Fig.6) Vertical, typical of cassette unit

mounting.

Fig.2.

30° 30°

ü ü

Fig.3.

90°

Sensor installation

The PANTHER sensor can be installed at any angle between horizontal and vertical so

long as the breather tube inlet is above the condensate inlet (Fig. 3). The PANTHER

sensor can also be tilted sideways up to 30° from horizontal (Fig. 2).

Fig.4.

Fig.5.

Fig.6.
