Edco S-EC - Propane System Details; Propane Tank and Connections

Printed in USA
TVW ©2003
Page 5
E-2EC-2GC-411-I-1003
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone (301) 663-1600 • 1-800-638-3326
Fax (301) 663-1607 • 1-800-447-3326
Website: www.edcoinc.com • Email: sales@edcoinc.com

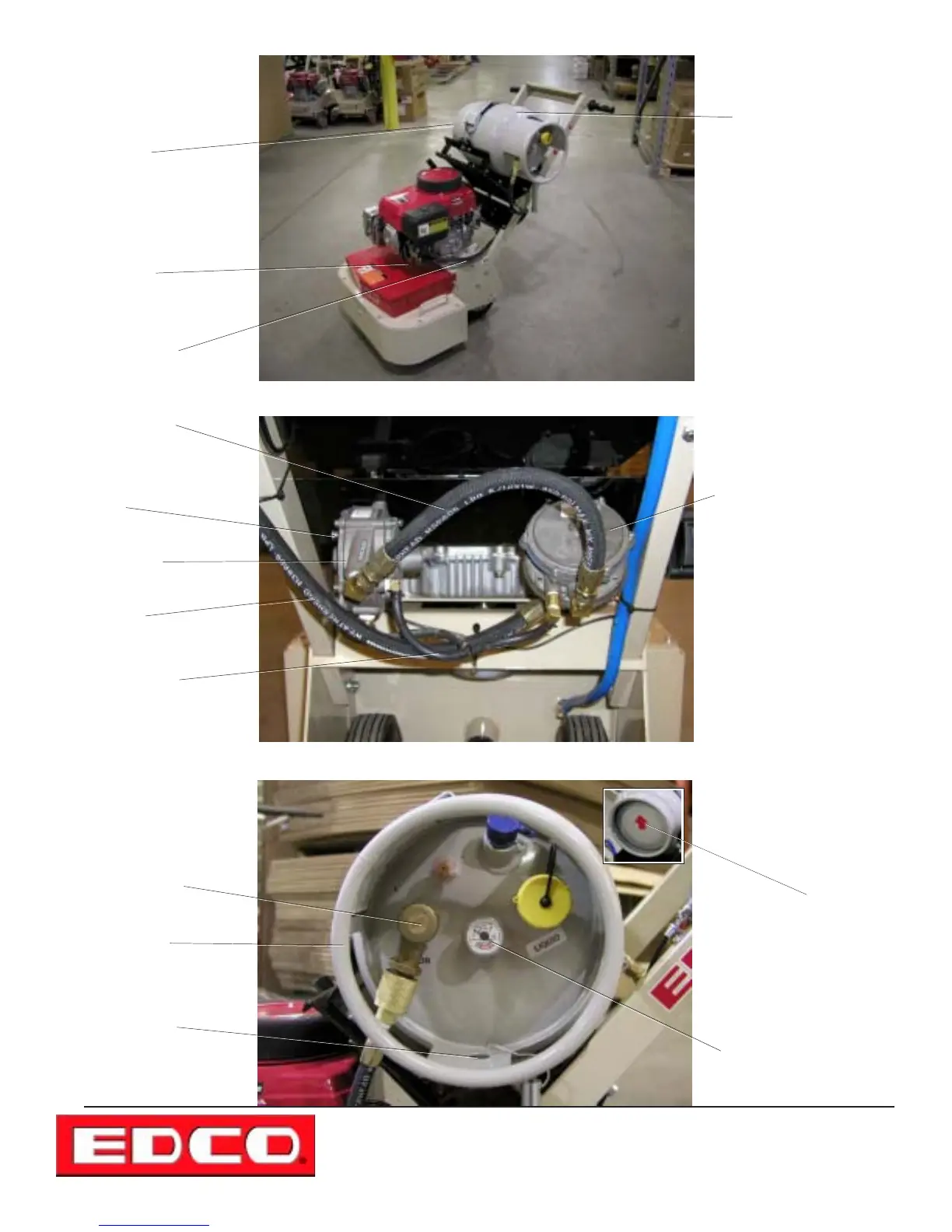

Propane
System
Main Fuel
Valve
Propane Tank
(20 lb horizontal)
Locating
Hole
NOTE: The Red arrow on
the tank will be pointing
“up”. The locating hole is
oriented under the gauge
as viewed in the photo
on the left.
Propane Tank (P/N 15130)
Horizontal Mount (Vapor
Withdrawal)
#1 Main Power
Adjustment
High Pressure
LP Hose
Vacuum
Fuelock - Filter
High Pressure
LP Hose
Vacuum
Hose
Vapor Hose
(Low Pressure)
Dry-Gas
Regulator
#2 Idle Mixture
Screw
Propane Tank
(20 lb horizontal)
Fuel Gauge
Red Arrow
Pointing “Up”
Tank Bottom
