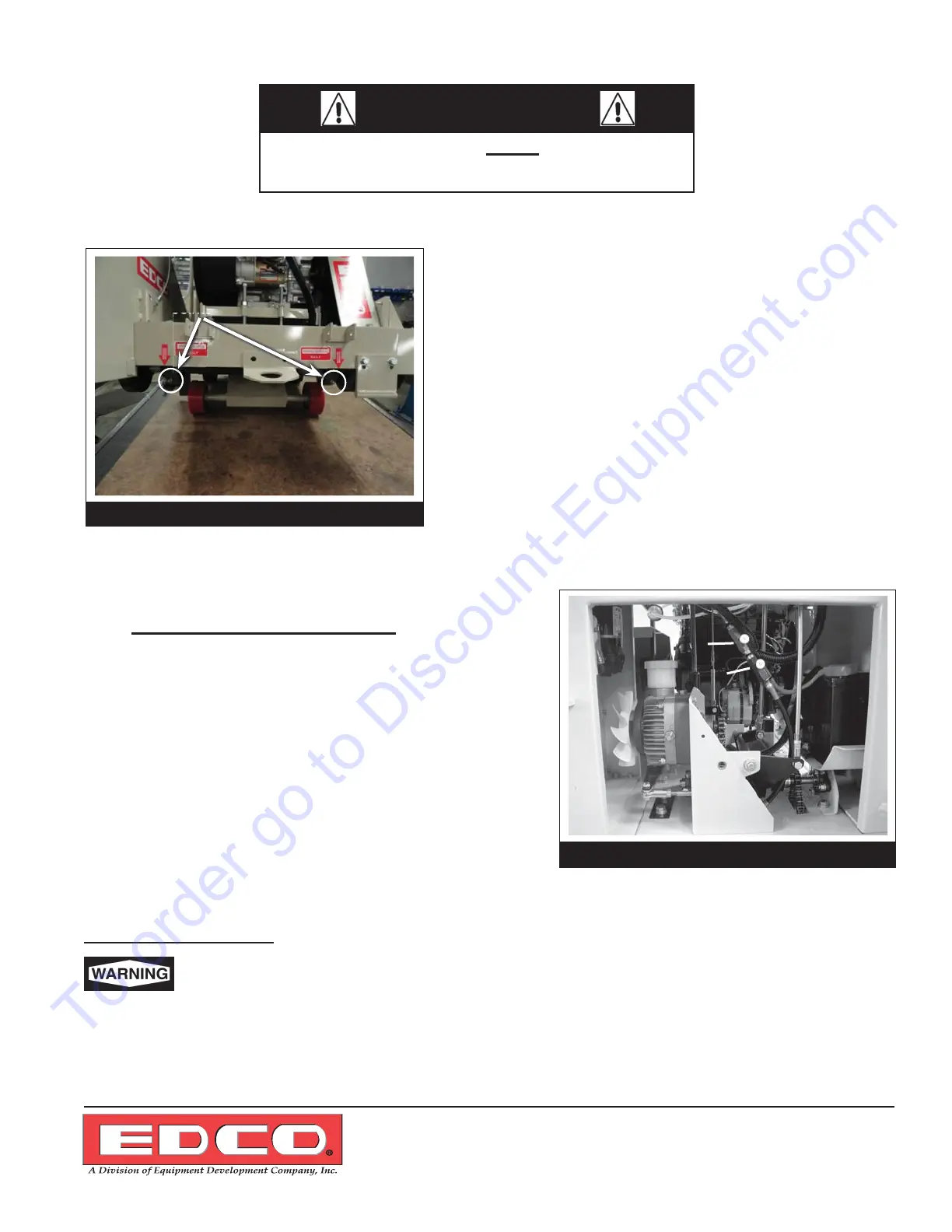

Grease Bearings - (12 Total)
Arbor Shaft Bearings (2) must be greased every 4 hours.
(Figure 16)
All other Bearings (8/10) must be greased every 40 hours.
Those include:
Front Wheel Bearings (2), Fork Assembly Bearings (2)
Rear Drive Wheel Bearings (2), Clutch Sprocket Bearings (2)
Jack Shaft on SS36-57D (2)
Important!
Arbor Shaft Bearings MUST be lubricated
EVERY FOUR HOURS!
Hydraulic Fluid Flow Controls: (Figure 17)
A - Blade Lowering Control Valve - RED
To readjust:
Loosen lock nut 1/4 to 1/2 turn
Turn knob
counter clockwise = faster movement
clockwise = slower movement
Retighten lock nut DO NOT OVER TIGHTEN
B -Blade Raising Control Valve - BLACK
Adjust same as above if necessary.
Transporting the Saw:
Extreme care must be taken when loading or unloading this machine.
• When hoisting this machine, use the built-in hoisting bar. Use proper hoisting equipment and techniques.
• Remove the blade before transporting or hoisting.
• Do not transport the saw with the engine running.
• Be certain the area surrounding the machine is clear of personnel before hoisting.
Figure 17
A
B
Figure 16
Arbor Shaft Bearing
grease points
