SS26-38K Gasoline Powered Operating Controls

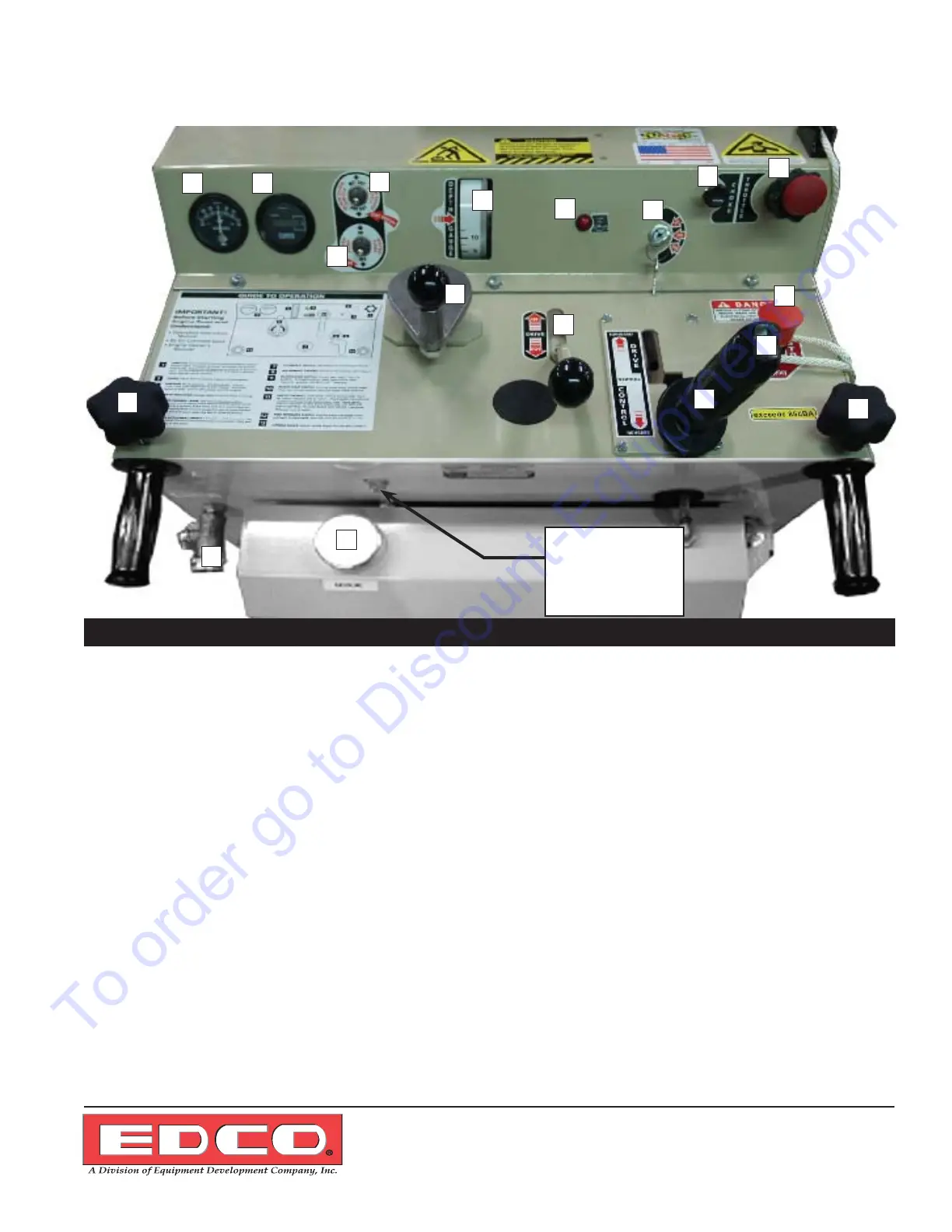

SS26-38K Operator’s Console
1. Ammeter
2. Hour Meter
3. Cut Control
4. Depth Gauge
5. Blade Saver Switch
6. Water Pump Switch
7. Ignition Switch
8. Choke
9. Throttle
10. Handle Locks
11. Clutch
12. Drive Control Lever
13. Blade Lift/Lower Rocker Switch
14. Water Hook Up
15. Gasoline Fill Cap
16. Low Oil Indicator
17. Emergency Stop
Figure 3
NOTE: Due to design changes and advances in technology your machine may not look
exactly like machines illustrated in this manual. All controls function in the same manner.
DC Hydaulic
Power Unit mounted
inside compartment at
this location.
(See page 10)
