water cassettes
12
INSTALLATION, OPERATION
AND MAINTENANCE MANUAL

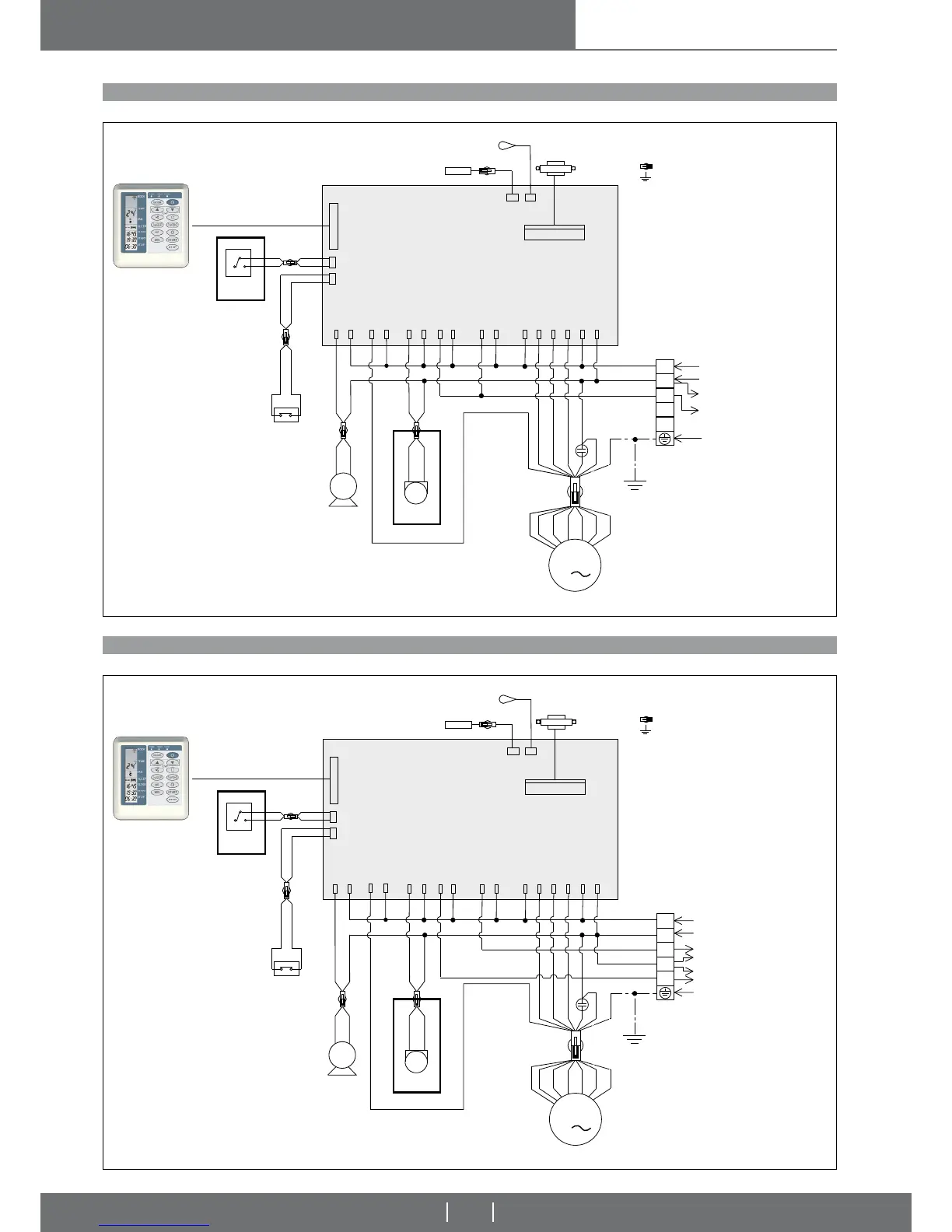

WIRING DIAGRAM OF 2 PIPE SYSTEM WATER CASSETTE WITH WALL MOUNTED CONTROL (CS/4S + HC/4S)
WIRING DIAGRAM OF 4 PIPE SYSTEM WATER CASSETTE WITH WALL MOUNTED CONTROL (CS/4S + HC/4S)
WALL MOUNTED CONTROL WITH THE SAME FUNCTIONS AS THE REMOTE CONTROL – CASSETTES WITH A CONTROL BOARD THAT IS MANAGED ONBOARD
WALL MOUNTED CONTROL WITH THE SAME FUNCTIONS AS THE REMOTE CONTROL – CASSETTES WITH A CONTROL BOARD THAT IS MANAGED ONBOARD
Pic. 26
Pic. 27
LEGENDA:
Connector
Earth
L Phase
N Neutral
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Drain pump (230Vac/50Hz)
FS Float switch (NC)
LS1 SM limit switch (60x60 cassette)
Safety switch (90x90 cassette: when
opening the fi lter panel, the unit will stop)
Com Common
P1,P2,...,Pn Terminals
C3 Condenser
LEGENDA:
Connector
Earth
L Phase
N Neutral
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Drain pump (230Vac/50Hz)
FS Float switch (NC)
LS1 SM limit switch (60x60 cassette)
Safety switch (90x90 cassette: when
opening the fi lter panel, the unit will stop)
Com Common
P1,P2,...,Pn Terminals
C3 Condenser
