Eden CS/4S 21 - Page 13

Vers. 2009-3
water cassettes
13
INSTALLATION, OPERATION
AND MAINTENANCE MANUAL

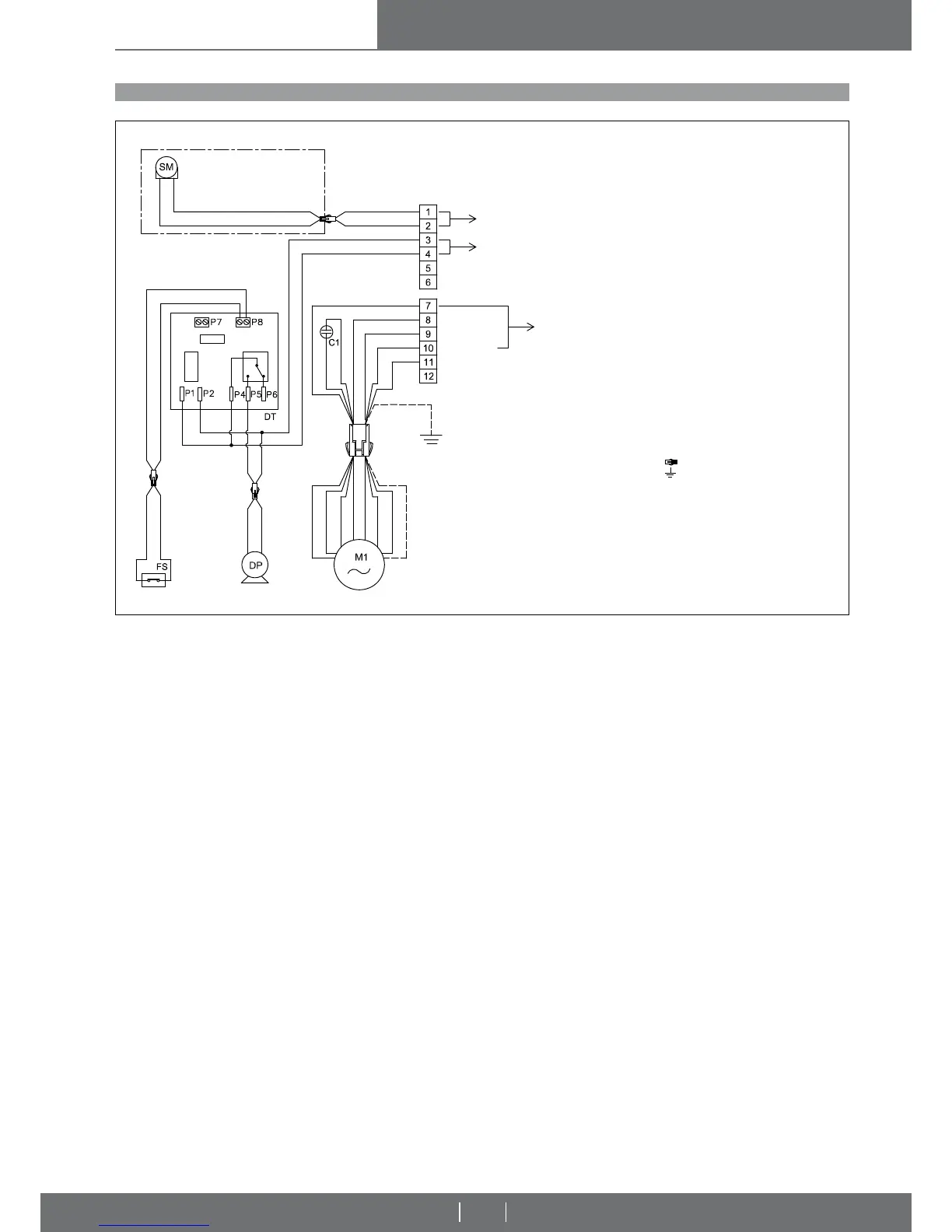

WIRING DIAGRAM OF 2/4 PIPE SYSTEM WATER CASSETTE FORESEEN FOR WALL MOUNTED CONTROL (CS/4S + HC/4S)
CASSETTES WITHOUT A CONTROL BOARD THAT IS MANAGED ONBOARD
Pic. 28
LEGENDA:
Connector
Earth
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Drain pump (230Vac/50Hz)
FS Float switch (NC)
DT Timer
C1 Condenser
FRONTAL
PANEL
Louver motor electrical supply
(230Vac/50Hz)
Permanent drain pump
electrical supply
(230Vac/50Hz)
Fan motor
electrical supply
(230Vca/50Hz)
Turbo
High speed
Med. speed
Min. speed
Com
