Eden CS/4S 21 - Page 15

Vers. 2009-3
water cassettes
15
INSTALLATION, OPERATION
AND MAINTENANCE MANUAL
UNITS 2nd SERIES
UNITS 2
nd SERIES

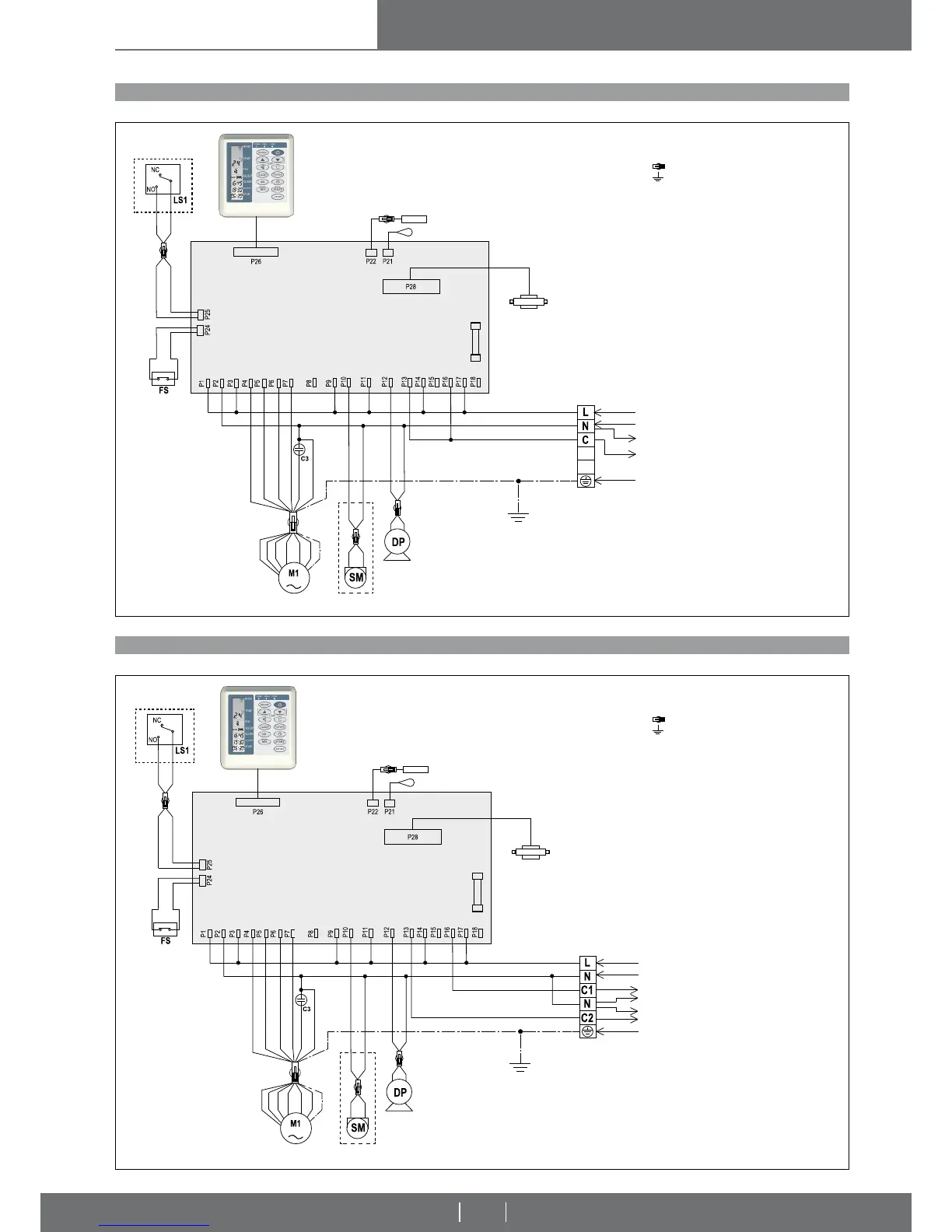

WIRING DIAGRAM OF 2 PIPE SYSTEM WATER CASSETTE WITH WALL MOUNTED CONTROL (CS/4S + HC/4S - 2nd SERIES)
WIRING DIAGRAM OF 4 PIPE SYSTEM WATER CASSETTE WITH WALL MOUNTED CONTROL (CS/4S + HC/4S - 2nd SERIES)
WALL MOUNTED CONTROL WITH THE SAME FUNCTIONS AS THE REMOTE CONTROL – CASSETTES WITH A CONTROL BOARD THAT IS MANAGED ONBOARD
WALL MOUNTED CONTROL WITH THE SAME FUNCTIONS AS THE REMOTE CONTROL – CASSETTES WITH A CONTROL BOARD THAT IS MANAGED ONBOARD
Pic. 31
Pic. 32
LEGENDA:
Connector
Earth
L Phase
N Neutral
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Drain pump (230Vac/50Hz)
FS Float switch (NC)
LS1 SM limit switch (60x60 cassette)
Safety switch (90x90 cassette: when
opening the fi lter panel, the unit will stop)
Com Common
P1,P2,...,Pn Terminals
C3 Condenser
LEGENDA:
Connector
Earth
L Phase
N Neutral
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Drain pump (230Vac/50Hz)
FS Float switch (NC)
LS1 SM limit switch (60x60 cassette)
Safety switch (90x90 cassette: when
opening the fi lter panel, the unit will stop)
Com Common
P1,P2,...,Pn Terminals
C3 Condenser
FUSE
FUSE
TRANSFORMER
230-12 Vac
TRANSFORMER
230-12 Vac
WATER TEMPERATURE SENSOR
WATER TEMPERATURE SENSOR
AIR TEMPERATURE SENSOR
AIR TEMPERATURE SENSOR
TURBO
TURBO
HIGH
HIGH
MEDIUM
MEDIUM
LOW
LOW
FRONTAL
PANEL
FRONTAL
PANEL
FRONTAL
PANEL
FRONTAL
PANEL
ELECTRONIC
CONTROL BOARD
ELECTRONIC
CONTROL BOARD
Electronic supply
230Vac/50Hz
Heat/cool valve
230Vac/50Hz
Earth
Electronic supply
230Vac/50Hz
Cool valve
230Vac/50Hz
Heat valve
230Vac/50Hz
Earth
