Eden SOLO - Connecting reader on C4 PLUSFX control unit

Technical manual SOLO/SOLO3000 – V1.5 p.7/12
POWER
SUPPLY
12Vcc

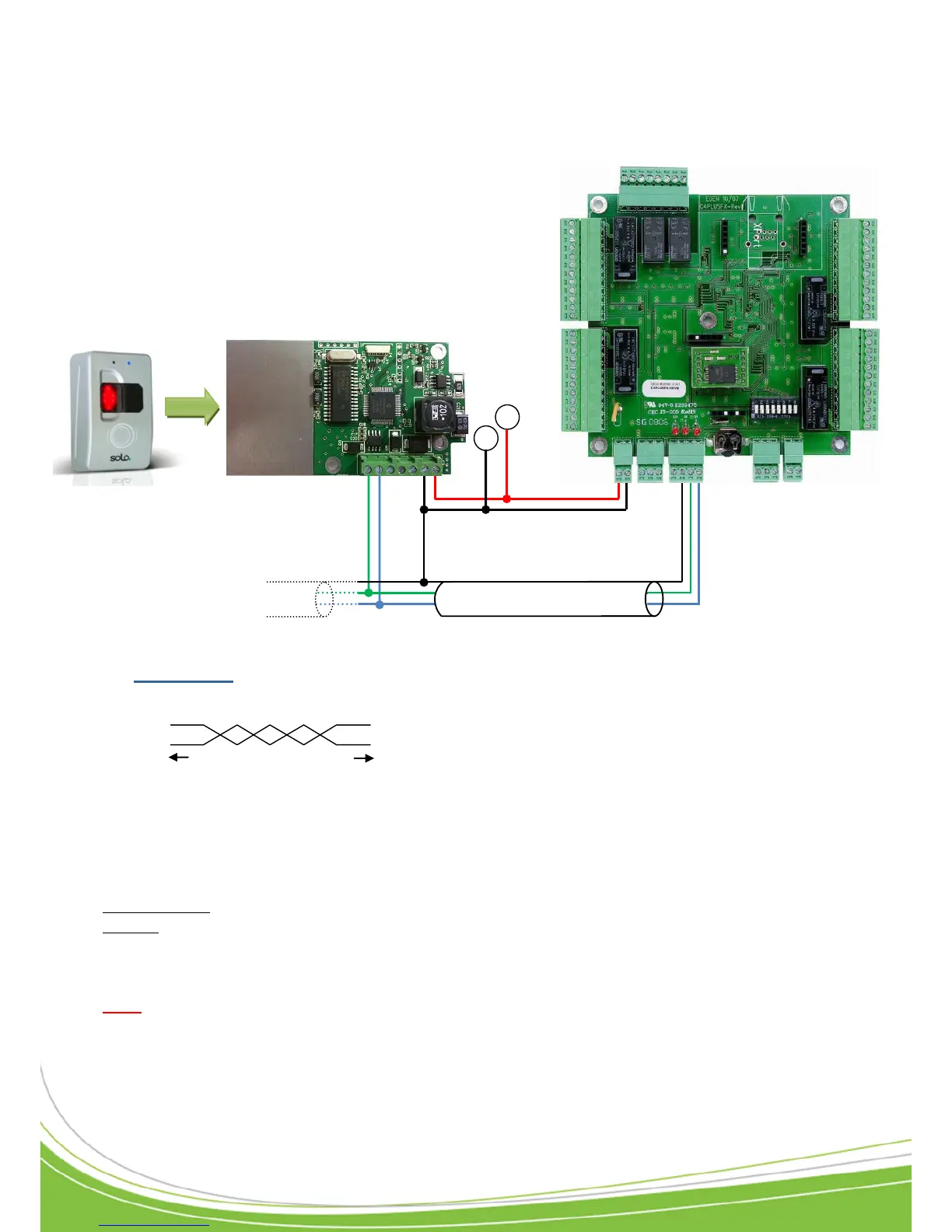

2) Connecting reader on C4PLUSFX control unit
(?) Data sheet :
Be sure to use the same pair for A and B
Be sure to separate the supply from the bus RS485
Characteristic: Sensitive connection
Screen: Mandatory
To achieve 1200m (2730 ft), you need to install a 120 resistor at each end of the network
between points A and B (see above).
Note: The total length must not exceed the recommended distance.
A
B
A
B
SYT recommended
1200m (2730 ft) Max
Ø 0.6 mm (1/30 in)
2 pairs recommended
-
+
RS485
