EN
5
Indicative weight
of the lled
water heater
Capacity
Range
Mass
25 L 45 kg
40 L 70 kg
65 L
Flat
Square
100 kg
80 L 120 kg
75 L 105 kg
100 L 135 kg
150 L 200 kg

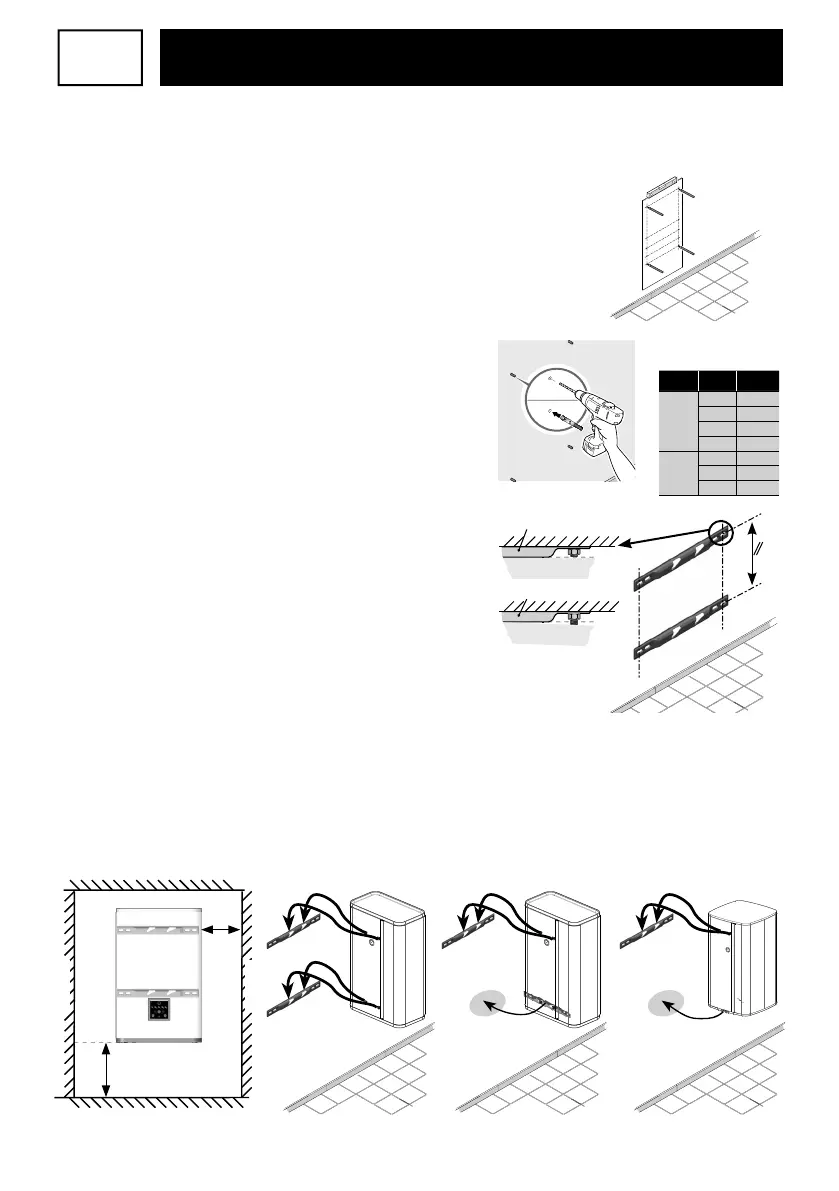

Installation manual: General installation diagram
2. How to install your water heater
2.1 Vertical wall-mounted water heater:
Flat and Square units
X
Position the drilling template (printed on the packaging)
on the wall surface and mark the points corresponding to
the water heater model, ensuring the minimum clearance
spaces to be left around the water heater are respected
(see diagram A).
Y
Drill and plug the water heater, using attachments which
are 10 mm in diameter (Ø) suitable for your wall type
(drywall, concrete, brick).
Important: your wall must be able to bear the weight
of the water heater when lled.
Z
Securely attach the brackets (for 25/40/65/80 L capacities) or
the single bracket (for 75/100/150 L capacities), and use a rule
to check the distances between the brackets. The elements
used for mounting must not protrude beyond the contact
surface with the water heater.
PLEASE NOTE: For models 25/40/65/80 L, if the wall is suf ciently
sturdy
, it is possible to use a single bracket for mounting.
To ensure it is secure, position the lower bracket in the
corresponding mountings on the water heater, with the
openings facing down. The lower bracket acts as a stop,
resting on the wall without screws (Diagram C or D).
[ Lift and t your water heater against the bracket(s), taking care to position the mountings on
top of the brackets.
\ Lower the water heater until the mountings engage in the notches.
Once the mountings are
engaged, it will no longer be possible to slide the water heater from side to side
without exerting signi cant force.
on
Bracket
Wall
Wall
Bracket
Water heater
Water heater
YES
NO
on
20 mm
min.
400 mm
FLOOR
CEILING
È
È
The hot water outlet must be positioned
to the left of the water heater.
WALL
WALL
Diagram B
on
Diagram C
on
Contact
area
Diagram D
on
Contact
area
Diagram A
