Installation manual: General installation diagram
The mounting brackets do not enable any con guration other than those set out
in this manual. Using the brackets to attach the water heater to the ceiling
is strictly PROHIBITED.
2.2 Horizontal wall-mounted water heater
(25/
40/65/80 L)
IMPORTANT: The SQUARE 75/100/150 L model is
wall-mounted only
X Position the drilling template (printed on the packaging)
on the wall surface and mark the points corresponding to
the water heater model, ensuring the minimum clearance
spaces to be left around the water heater are respected
(see diagram E).
Y Drill and plug the water heater and use attachments of
at least 10 mm in diameter (Ø) suitable for your wall type
(drywall, concrete, brick).
Important: your wall must be able to bear the weight of
the water heater when  lled.
Z S ecurely attach the support brackets, and use a rule to
check distances between the brackets. The elements used
for mounting must not protrude beyond the contact sur-
face with the water heater.
[ Lift and  t your water heater against the bracket(s),
taking care to position the mountings on top of the
brackets (diagram F).
\ Lower the water heater until the mountings engage
in the notches. Once the mountings are engaged,
it will no longer be possible to slide the water heater
from side to side without exerting signi cant force.
PLEASE NOTE: The cold water inlet and the hot water outlet must be positioned on the left.
The hot water outlet must be positioned upward.
Indicative weight
of the lled
water heater
Capacity Range Mass
25 L 45 kg
40 L 70 kg
65 L
Flat
100 kg
80 L 120 kg
on
Bracket
Wall
Wall
Bracket
Water heater
Water heater
YES
NO
on
al
l
on
20 mm
min.
400 mm
min.
WALL WALL
FLOOR
CEILING
È
È

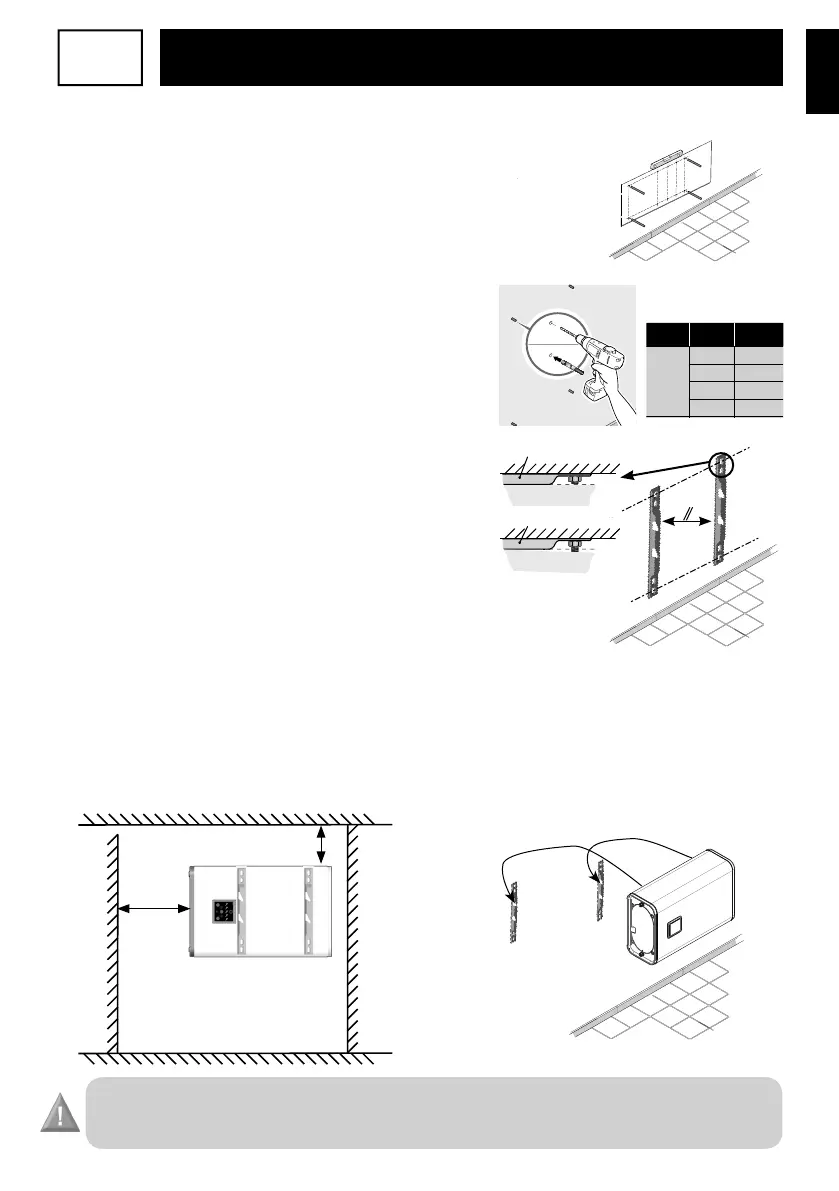

Diagram E Diagram F
