Edesa Flat - Installation Location and Connections; Electrical and Hydraulic Connection Steps

EN
7
Installation manual: Installation location

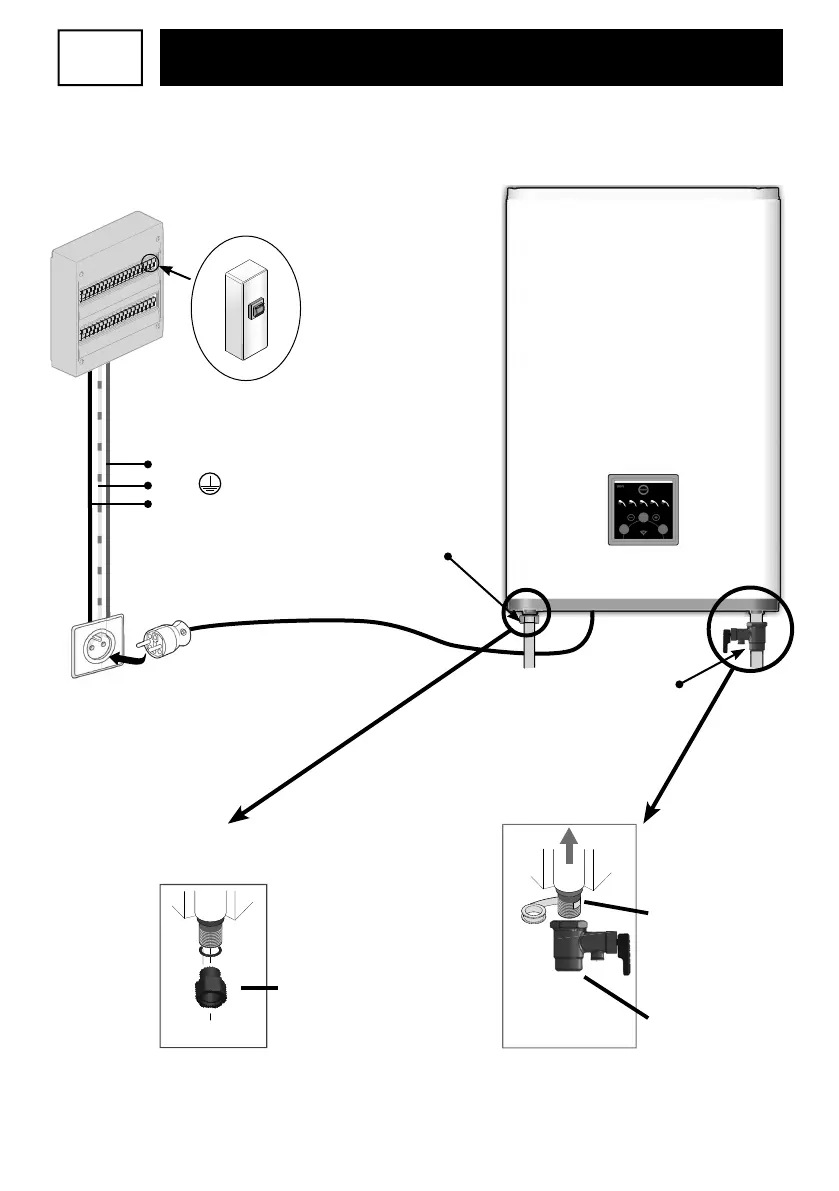

3. Electrical and hydraulic connection
Example for suspended device
Dielectric
union
MANDATORY MANDATORY
Safety valve
Phase
Earth
Neutral
Hot
water
outlet
È
Cold
water
inlet
È
230 V switch board
16 A circuit breaker
and 30 mA differential.
Permanent connection (24/7).
Cold water connection
Thread seal tape
to be applied in
the direction of
the screw thread
Safety valve
X
Y
Hot water connection
Plastic
dielectric
union
Z
