ECW-5210-L Enterprise Access Point ENGLISH
11

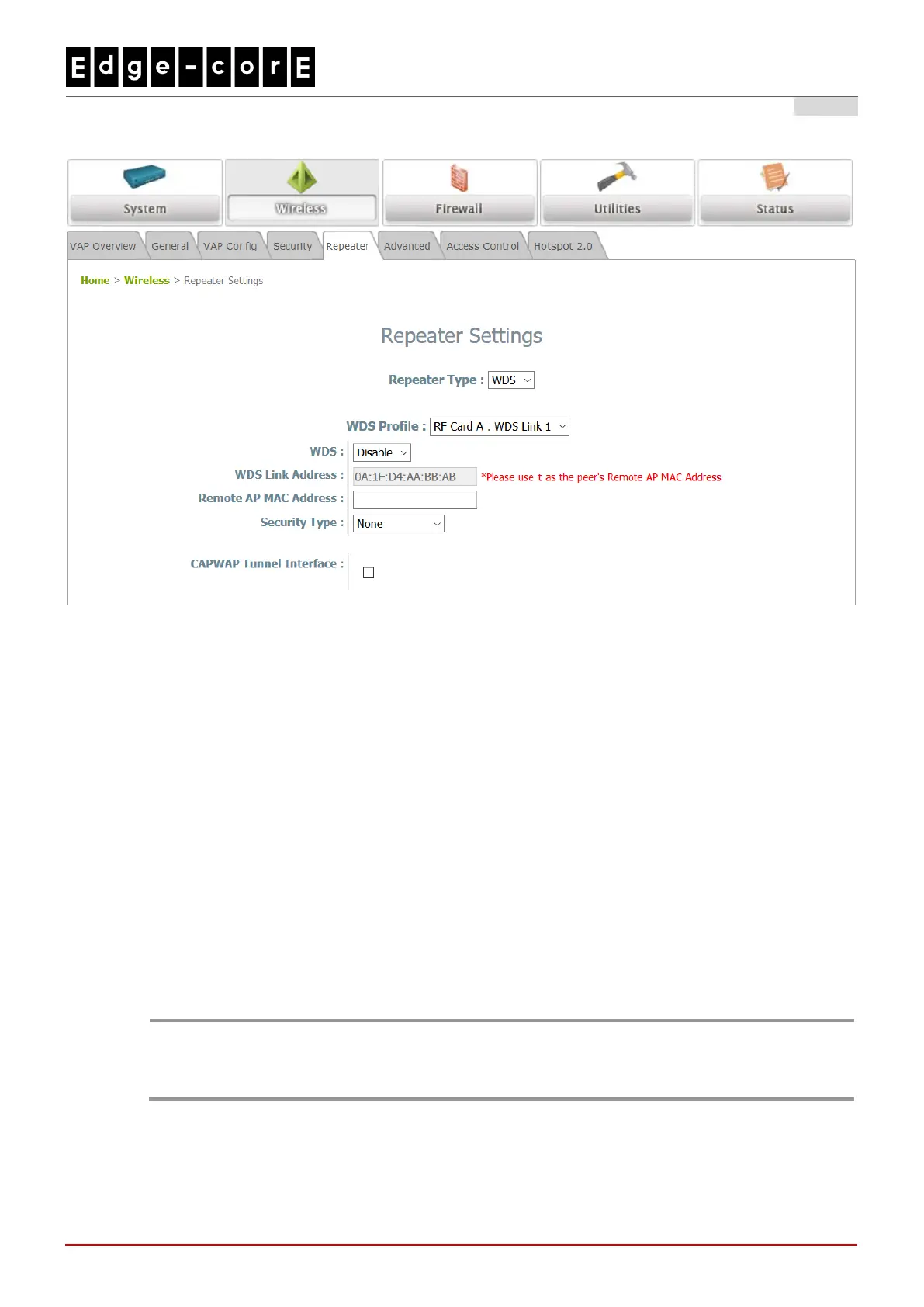

Step 4. Configure WDS (Wireless Distribution System) Settings (Optional)
To extend the wireless coverage, ECW5210-L supports up to 8 WDS links per RF card for connecting
wirelessly to other WDS-capable APs (peer APs). By default, all WDS profiles are disabled.
 Click on the Wireless button on the main menu.
 Select the Repeater Settings tab.
 Choose WDS as the Repeater Type.
 Choose the desired WDS profile:
(a) Enable WDS.
(b) Enter the Remote AP MAC Address (peer AP) and then Click SAVE.
If you are using another ECW5210-L as the peer AP, simply repeat the above-mentioned steps to configure
another peer AP(s).
 Note:
On each and every configuration page, you may click SAVE to save the changes of your configured
settings, but you must reboot the system for the changes to take effect. After clicking SAVE, the
following message will appear: “Some modifications have been saved and will take effect after
APPLY.”
