PARTS LIST
ITEM DESCRIPTION QTY
1 CAMERA (1 EA)
2 MAIN CABLE (1 EA)
3 JUNCTION CABLE (1 EA)
4 RCA ELBOW (1 EA)
5 RCA EXTENSION (1 EA)
6 BOLT (M6) (4 EA)
7 LOCK WASHER (4 EA)
8 FLAT WASHER (4 EA)
9 NUT (M6) (4 EA)
10 3M SEALANT TAPE (1 EA)
11 ZIP-TIES (5 EA)
12 FUSE ADAPTER(LARGE) (1 EA)
13 FUSE ADAPTER(SMALL) (1 EA)
14 RUBBER GROMMET (2 EA)
1
6
8
7
9
2
3
4
10
5

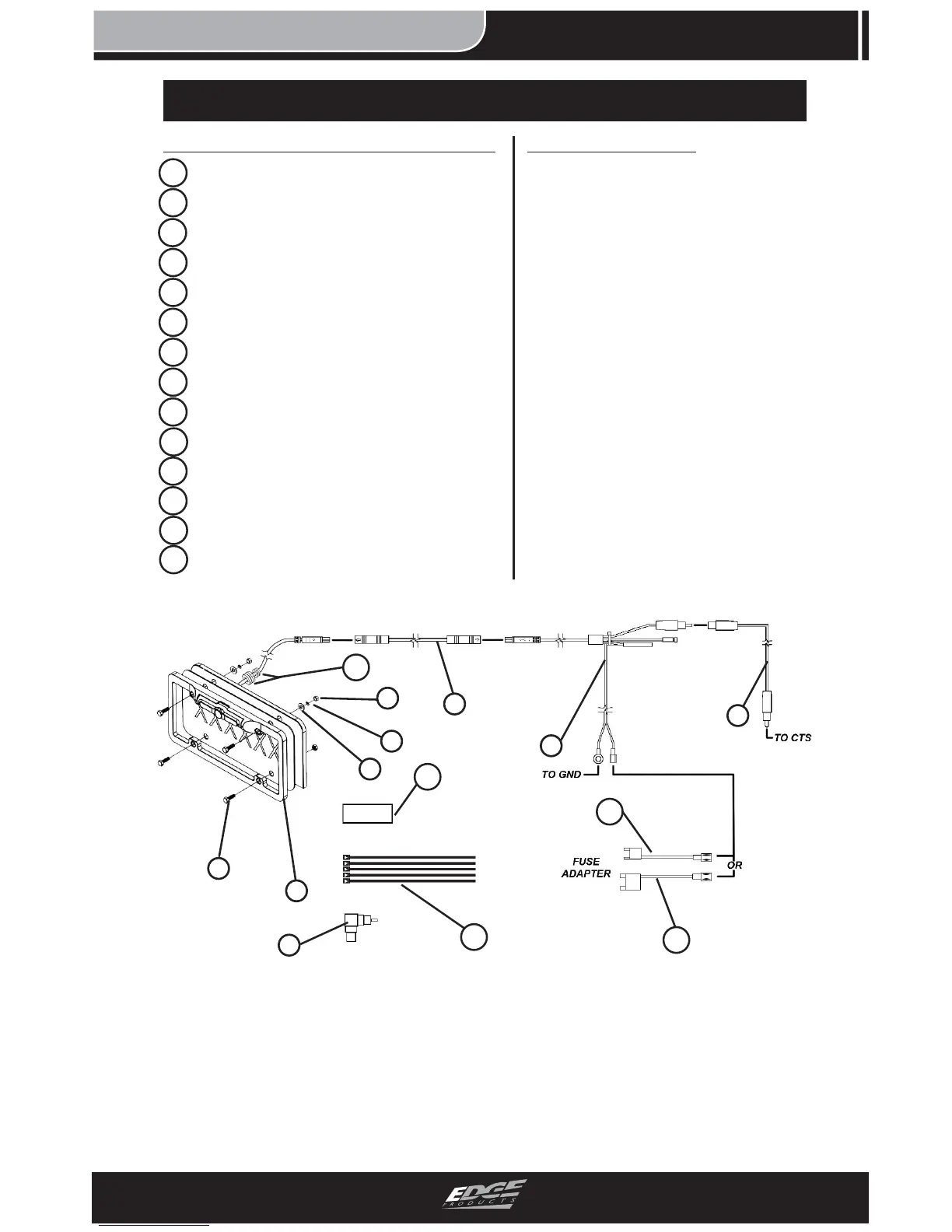

FIGURE 1 - EXPLODED CAMERA ASSEMBLY
REQUIRED TOOLS
SCISSORS
ALLEN WRENCH (SUPPLIED)
3/8” WRENCH/SOCKET
1/4” DRILL BIT
POWER DRILL
(NOTE: The drill and drill
bit may be needed in order
to re-size the existing mount
holes for bolt insertion. If
the camera is ever removed,
continue to use this hardware
to mount your licence plate.)
11
12
13
14
