MOUNTING GUIDELINES
POWER CONNECTIONS
POWER CABLE
Your FLI enclosure is designed with a swift installation routine in mind.
Before xing the enclosure in place please ensure that there is sufcient air ow around the exterior of
the amplier casing, at least two inches is sufcient.
• At least 10 gauge cable should be used for the power connection to the amplier.
• The power cable should be taken directly from the battery. Rubber grommets should be used when
passing through any bulkheads to prevent the cable from becoming chaffed or cut.
• It is vital that a fuse / circuit breaker (of at least equal value to the one tted on the amplier) is
placed inline with the power cable and is no further than eighteen inches away from the battery.
• Please ensure that the fuse is not tted until the entire installation procedure is complete.
• The two tables overleaf are to help you decide on what cable is correct for you. The rst enables you
to select the size of cable depending on the length required. The second will help you convert the
cable size from American Wire Gauge to Metric and Imperial if you need to.

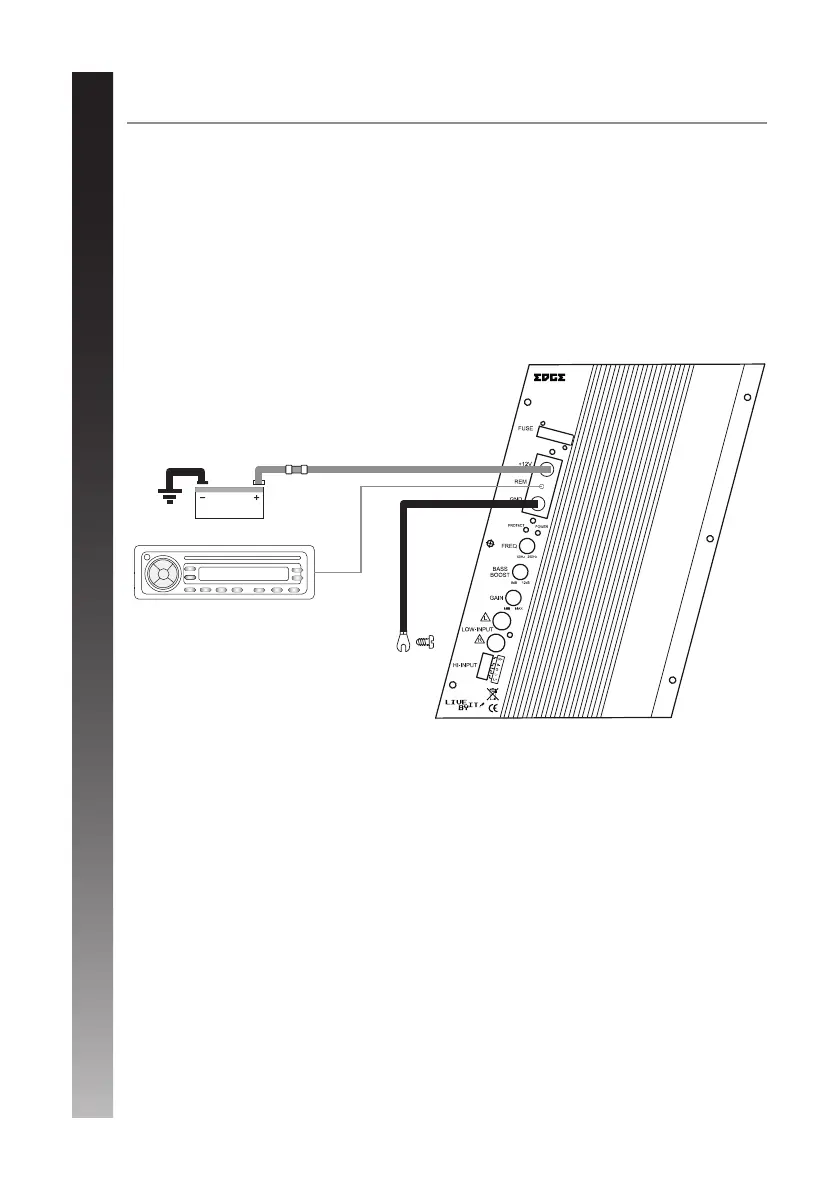

Chassis ground
Remote turn on
Fuse close to battery
Battery
class ab monoblock amplifier
20A
ED7200-E1
