Edgetec TRIFLO - Diagram 1 Correct Spa Bath Pump Installations; Installation Requirement

EDGETEC SYSTEMS PTY LTD Part # 9-2100 MAY 2012
2
Suction
Mini Jet
Return Line
Self Drain Tee
Suction Line
(Minimum 5°
Gradient)
Jet

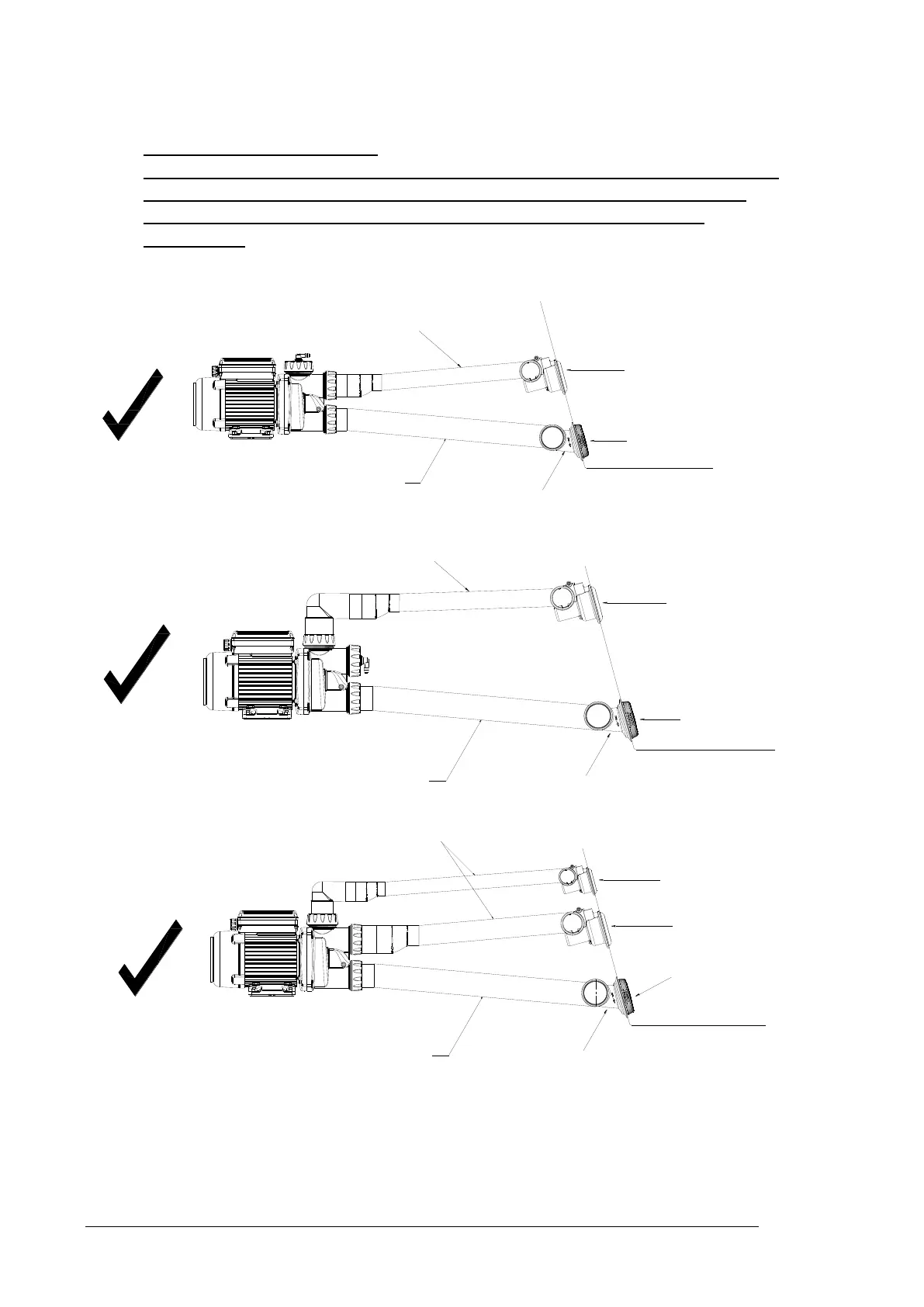

Diagram 1 Correct Spa Bath Pump Installations
Use 40mm or 25mm UPVC Pressure Pipe for plumbing installation,
40mm pipe is preferred for both the suction and return lines.
IMPORTANT REQUIREMENT:
Installation of the TriFlo pump must have access for servicing the pump
or pipe work. A service access panel must be provided so that the
pump can be easily removed for service (if required) on every
installation.
Self Drain Tee
Suction Line
(Minimum 5°
Gradient)
Suction
Jet
Return Line
Self Drain Tee
Suction Line
(Minimum 5°
Gradient)
Suction
Jet
Return Line
