Edgetec TRIFLO - Diagram 2 Incorrect Spa Bath Pump Installations

EDGETEC SYSTEMS PTY LTD Part # 9-2100 MAY 2012
3

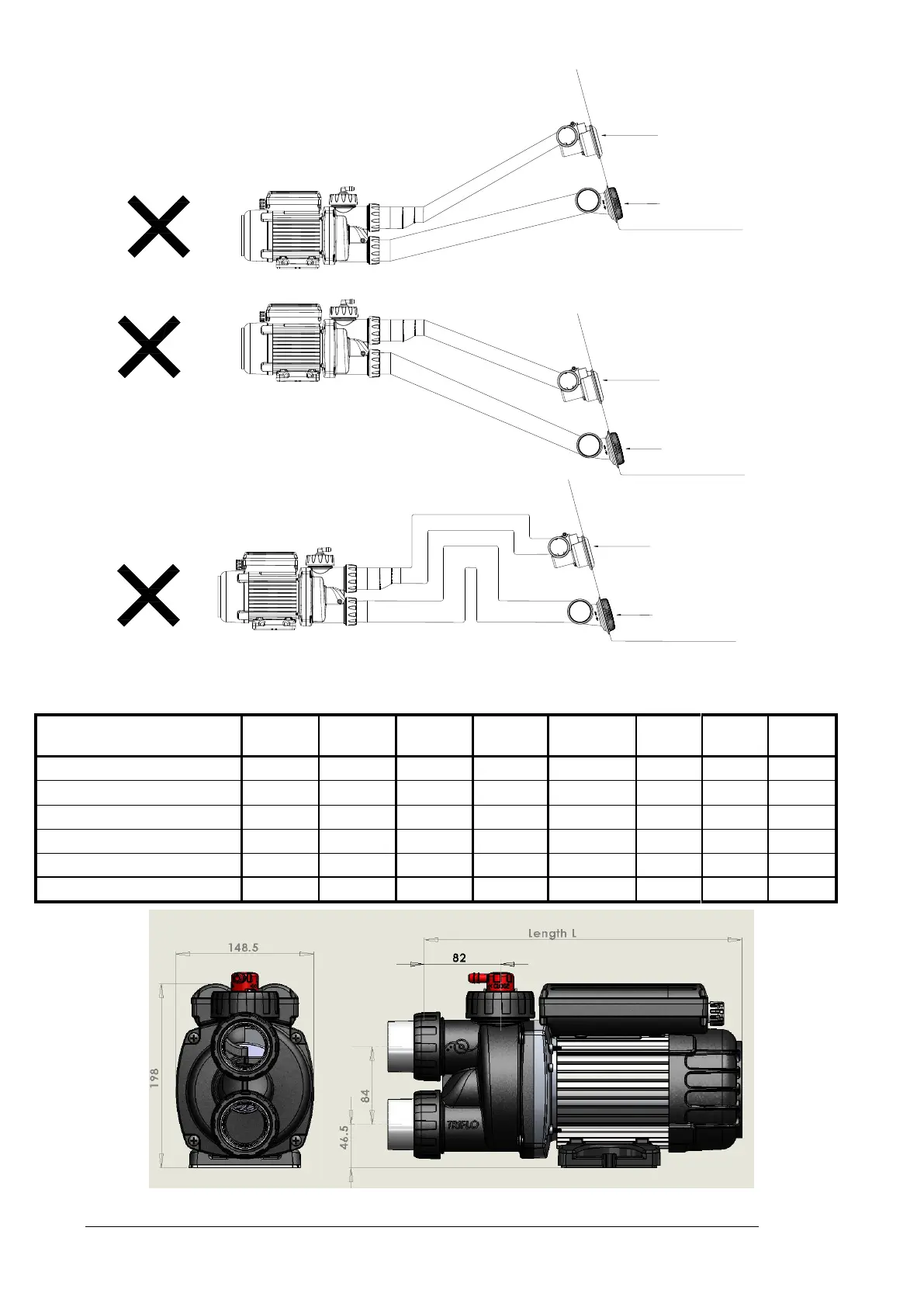

Diagram 2 Incorrect Spa Bath Pump Installations
TriFlo Technical Data
Pump Model
Supply
Voltage
Power
(watts)
Heater
(watts)
Current
(amps)
Max
Head m
Width
(mm)
Height
(mm)
Length
(mm)
TF060-AH-50
230-240
600
0
3.7
11
148
198
384
TF075-AH-50-HF
230-240
750
0
4.4
11
148
198
384
TF110-AH-50
230-240
1100
0
5.4
11
148
198
406
TF060-XH, ET, ST, SK-50
230-240
600
700
6.8
11
148
198
384
TF075-XH, ET,ST, SK-50-HF
230-240
750
700
7.5
11
148
198
384
TF110-XH, ET,ST, SK-50
230-240
1100
700
8.6
11
148
198
406
Jet
Suction
Suction
Jet
Jet
Suction
