3-8
=

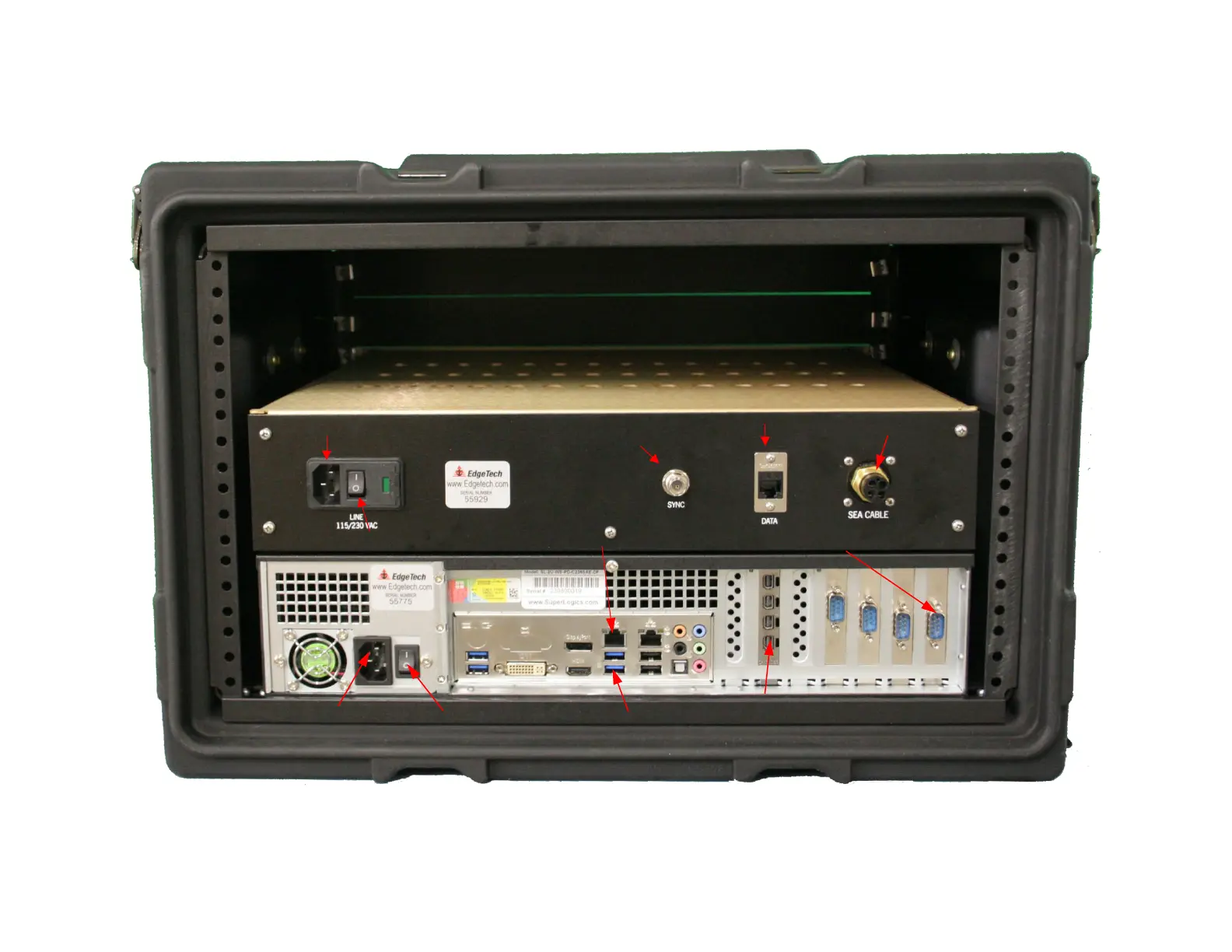

Figure 3-3: 701 DL With Computer Rear Panel
SEA CABLE connector
ETHERNET connector
Video Card
POWER switch
VAC INPUT connector
COM 1-NAV connector
ETHERNET connector
SYNC connector
VAC INPUT connector
POWER switch
