* The heatable room dimensions are calculated assuming the use of pellets of the type described in the note, and home insulation
which complies with Italian law No. 10/91, and subsequent changes together with an expected heat output of 35 Kcal/m³ per
hour.
A LOT DEPENDS ON THE EFFICIENCY OF THE HEAT EMITTING UNITS (radiators).
MANDATAACQUAMANDATA ACQUA
120120
9090
CIRCOLATORE
ACQUA
CIRCOLATORE
ACQUA
LITHIUMLITHIUM
WATER OUTLET
TEMPERATURE
DETECTOR
SMOKE EXTRACTION
MOTOR
SECOND FUSE
WATER CIRCULATION
PUMP
SECOND
FUSE
SCREW FEEDER
MOTOR
TECHNICALAND HEATING SPECIFICATIONS
Hopper capacity 27 kg
Overall efficiency 90,1 %
Water efficiency 86,1 %
Overall available power 11,3 kW
Power available for water heating 10 kW
Time between refuellings (min/max) 10/33 houres
Fuel consumption (min/max) 0,8/2,7 kg/h
Minimum draught 12 Pa
Maximum pressure 2 bar
Weight including packaging (steel/ceramic) 170/204 kg
Heatable room * 295
m
3
Diameter combustion product flue (female) 8 cm
ELECTRICAL SPECIFICATIONS
Power supply 230Vac +/- 10% 50 Hz
On/off switch yes
Average power consumption 150 W
Average power consumption during ignition 400 W
Remote control frequency (optional extra) infrared
Protection on mains power supply * Fuse 2A, 250 Vac 5x20
Electronic circuit board protection Fuse 2A, 250 Vac 5x20

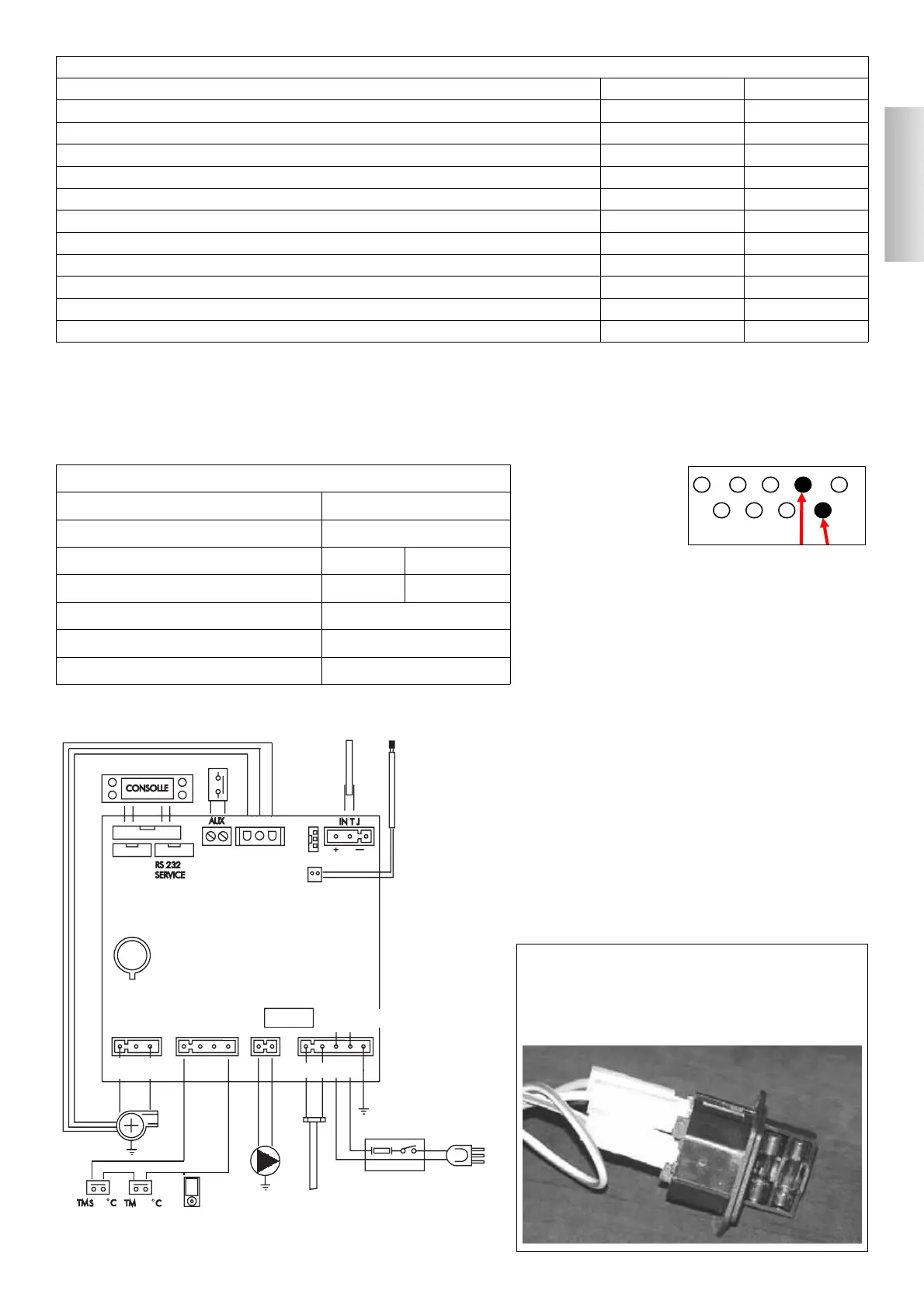

INGNITING ELEMENT
230 Vac POWER
SUPPLY 50Hz +/- 10%
SMOKE RPM
FUSE
* two fuses are inserted on the socket behind the
stove, fitted with a switch one is functional and
the other is spare.
*
*
SERIAL PORT
On the RS232 serial
(clean voltage clean con-
tact on the pins)
port with the appropriate
cable (code 621240), the Dealer may install an optio-
nal device for remote on/off operation, for example a
dialler or room thermostat.
BACKUP BATTERY
A backup battery is found on the control board (3-Volt
CR 2032 battery). Its malfunction is indicated with the
following messages: (not considered a defect but due
to normal wear-and-tear): ERROR RTC RD. For more
detailed information, please contact the DEALER who
has performed the first 1st ignition.
OPTIONAL EXTRAS
DIALLER (code 281900)
GSM dialler for pellet stoves, to turn on/off remotely
with a mobile phone text message.
pin 2
pin 6
BACKUP
BATTERY
