RADIO CONTROL code 633290 (OTTAWA / ATLANTA)
This controls all the functions.
For further information contact our customer service centre.

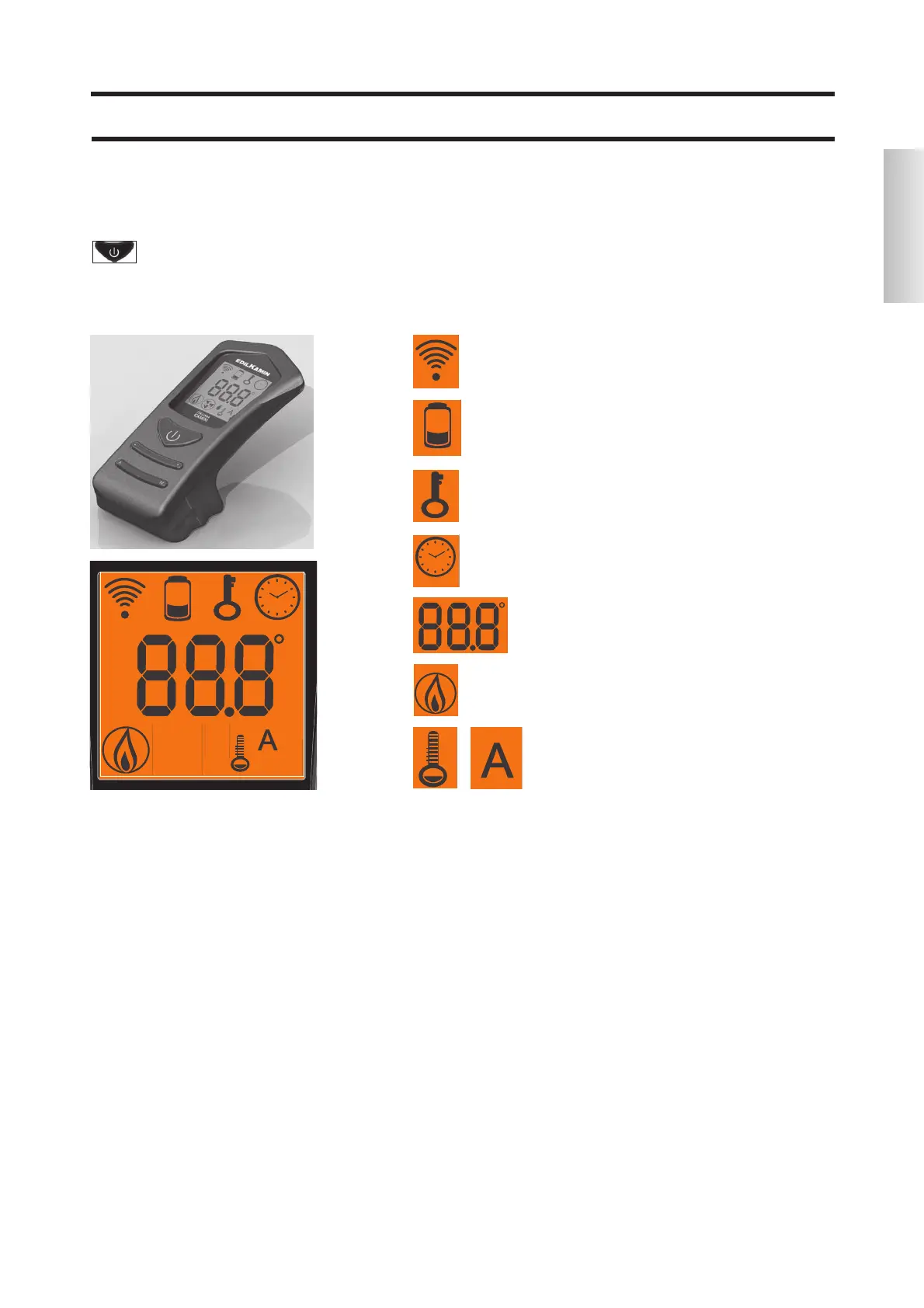

Key to buttons and display:
:
to turn off and on (to go from remote control on stand-by to radio control on)
+/- : to increase/decrease the various regulations
A : to select function
M : to access the control and programming menus
INSTRUCTIONS FOR USE
- icon flashing: radio control searching for network
- icon fixed: radio control with connection enabled
flat battery
(3 mini alkaline batteries type AAA)
keypad locked
(press "A" and "M" in parallel for a few seconds to lock
or unlock the keypad)
programming enabled
- icon flashing: thermo-stoves turning on
- icon fixed: thermo-stoves working
automatic function
(display shows temperature)
alphanumeric display consisting
of 16 figures arranged in two lines
of 8 figures
The display also shows other useful information in addition to the icons described above.
Stand-by Position:
shows the set water temperature (Set 70°C), the flow temperature (Tm 65°C), the kg of pellets remaining (15 kg) in the tank and
the current time (15:33)
- Automatic operating phase:
shows the set water temperature (Set 70°C), the flow temperature (Tm 65°C), the kg and remaining autonomy (50KG 10H) and the
current time (15:33)
Press button "A" on the radio control unit to switch from the classic "Power_Module" mode to "Comfort_Climate" mode.
In "Comfort_Climate" mode, press the +/- button on the radio control unit's synoptic panel to set the desired room temperature.
The following situations, for example, will occur:
-With a room temperature below the setting, the thermo-stoves will modulate the power levels normally in order to pursue the output set.
-If the room temperature has been reached, the thermo-stoves will set its power to P1.
-The temperature is transmitted from the supplied radio control, which must be within range of the radio field (unobstructed linear
distance of 15 m).
- In the event that the connection between the radio control unit and the stove should be lost, the thermo-stove will continue its wor-
king phase at the P1 power level.
n alternate temperature monitoring system is available. In fact, it is possible to connect an external room thermometer (readily avai-
lable on the market) to the serial port:
The thermo-stoves will automatically recognise the thermostat's connection to the serial port and, as a result, one of the following
situations will occur:
-With a room temperature below the external thermostat's setting, the stove will modulate the power levels normally in order to pur-
sue the output set.
-If the external thermostat's room temperature has been reached, the thermo-stoves will set its power to P1.
- An asterisk on the display indicates that the external thermostat is requesting for the rooms to be heated.
