EDIMAX AC-M3000 / M1000
Quick Installation Guide
8

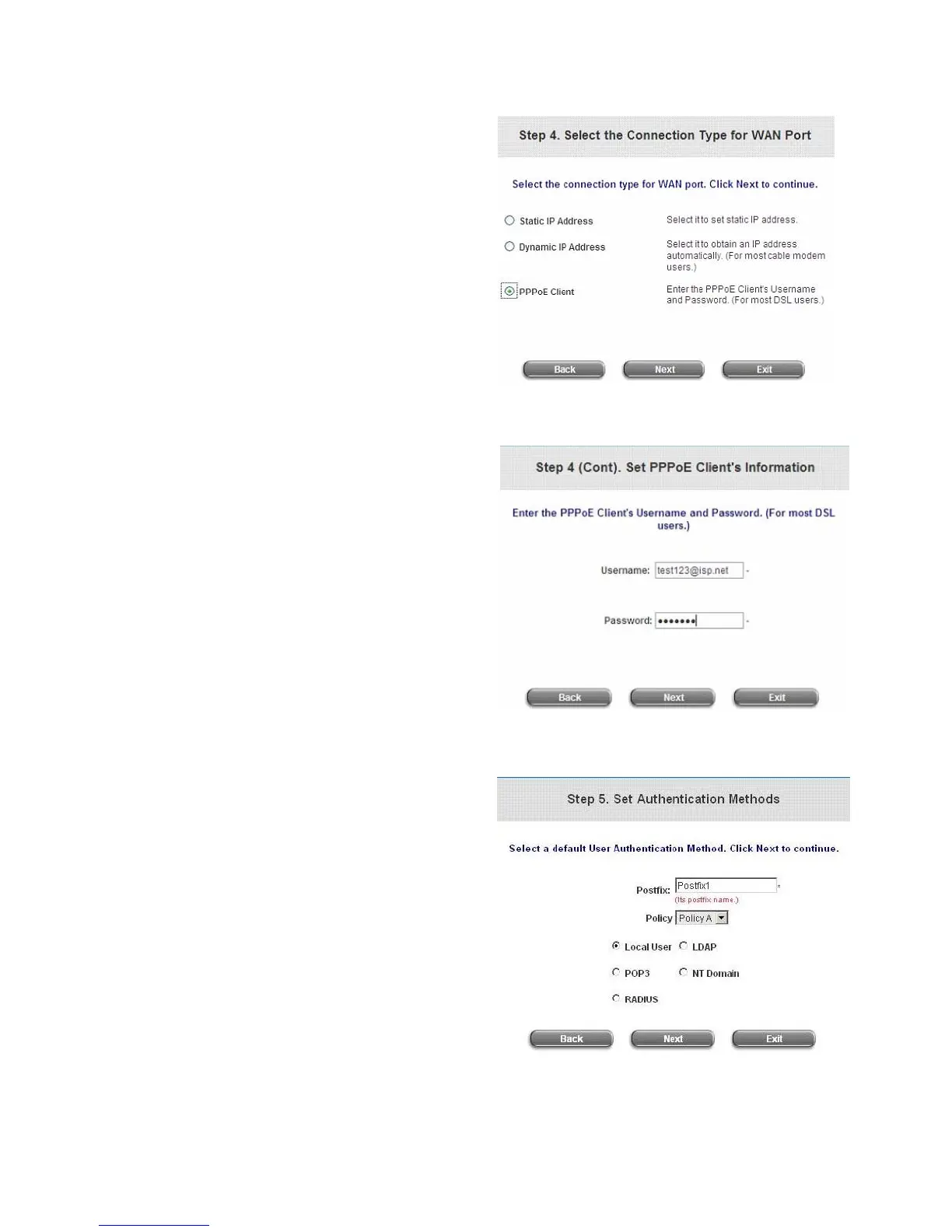

Step 4. Select the Connection Type for WAN
Port
Select the Internet connection type for WAN1
Port. Three Internet connection types can be
selected in this step, Static IP Address, Dynamic
IP Address, and PPPoE Client. PPPoE Client
connection type is selected for this example.
Click Next to continue.
Step 4 (Cont). Set PPPoE Client’s Information
Enter the Username and Password provided by
the ISP.
Click Next to continue.
Step 5. Set Authentication Methods
Enter an identified name as the postfix name in
the Postfix field (e.g. Local), and select a policy
to assign to users using this authentication
method (or use the default). Then select an
authentication method and click Next to
continue.
To Next Page
