GETTING STARTED
A. Hardware Installation
1. Connect the ADSL line.
Connect the line port of the router of the device to the modem interface of
a splitter using a telephone cable. Connect a telephone to the Phone
interface of the splitter using a telephone cable. Connect the Line interface
of the splitter to your existing, incoming line.
The splitter has three interfaces:
Line: Connect to a wall phone jack (RJ-11 jack).
Modem: Connect to the ADSL jack of the device.
Phone: Connect to a telephone set.
2. Connect the router to your LAN network.
Connect the LAN interface of the router to your PC, hub or switch using an
Ethernet cable.
3. Connect the power adapter to the router.
Plug one end of the power adapter into a wall outlet and connect the other

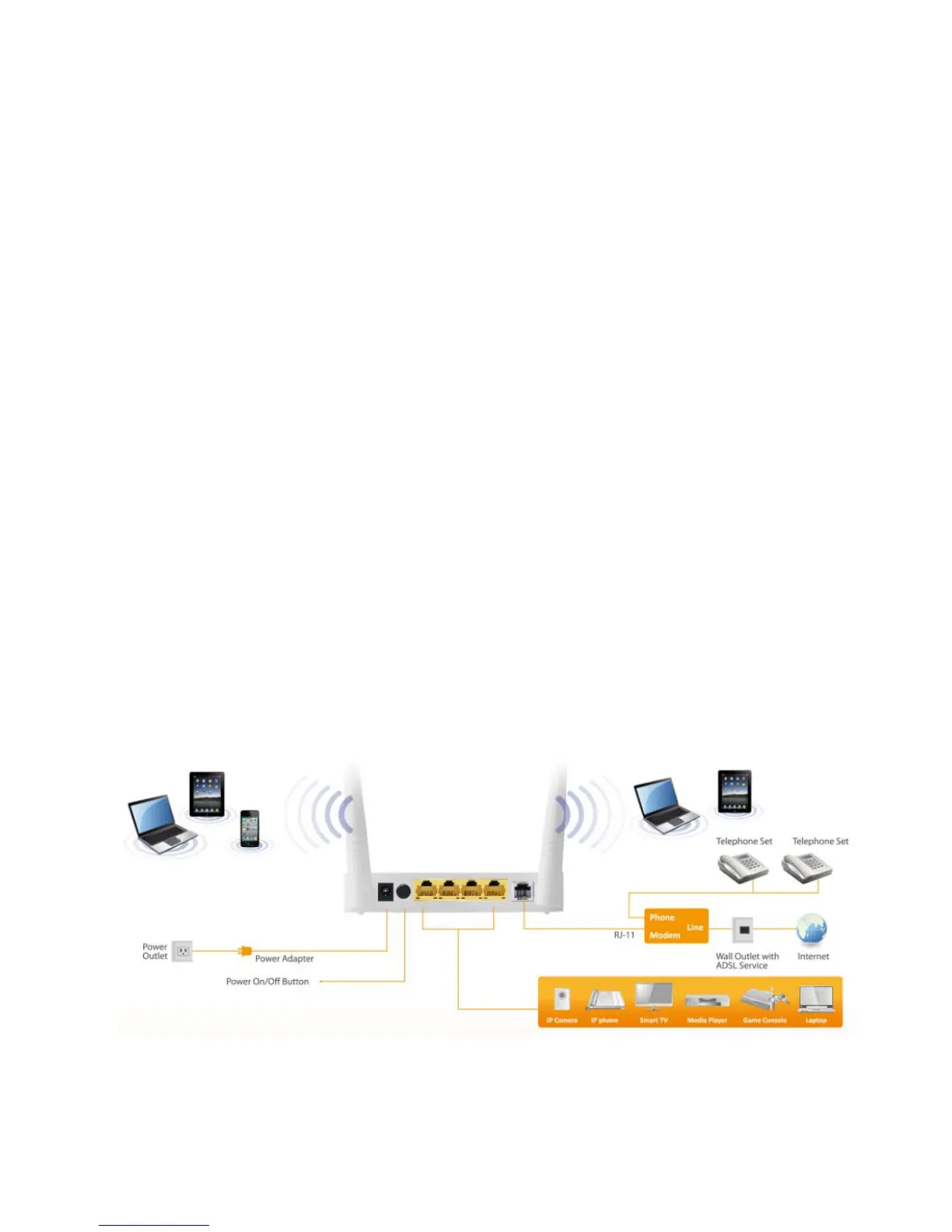

end to the 12V interface of the device. The following diagram shows how to
correctly connect the router, PC, splitter and telephone sets.
4. Check the ADSL LED status.
Please check the ADSL LED on the front panel. This light indicates the status
of your ADSL broadband through your telephone line. If the light is on, you
