Edimax BR-6428nS V3 User Manual

5

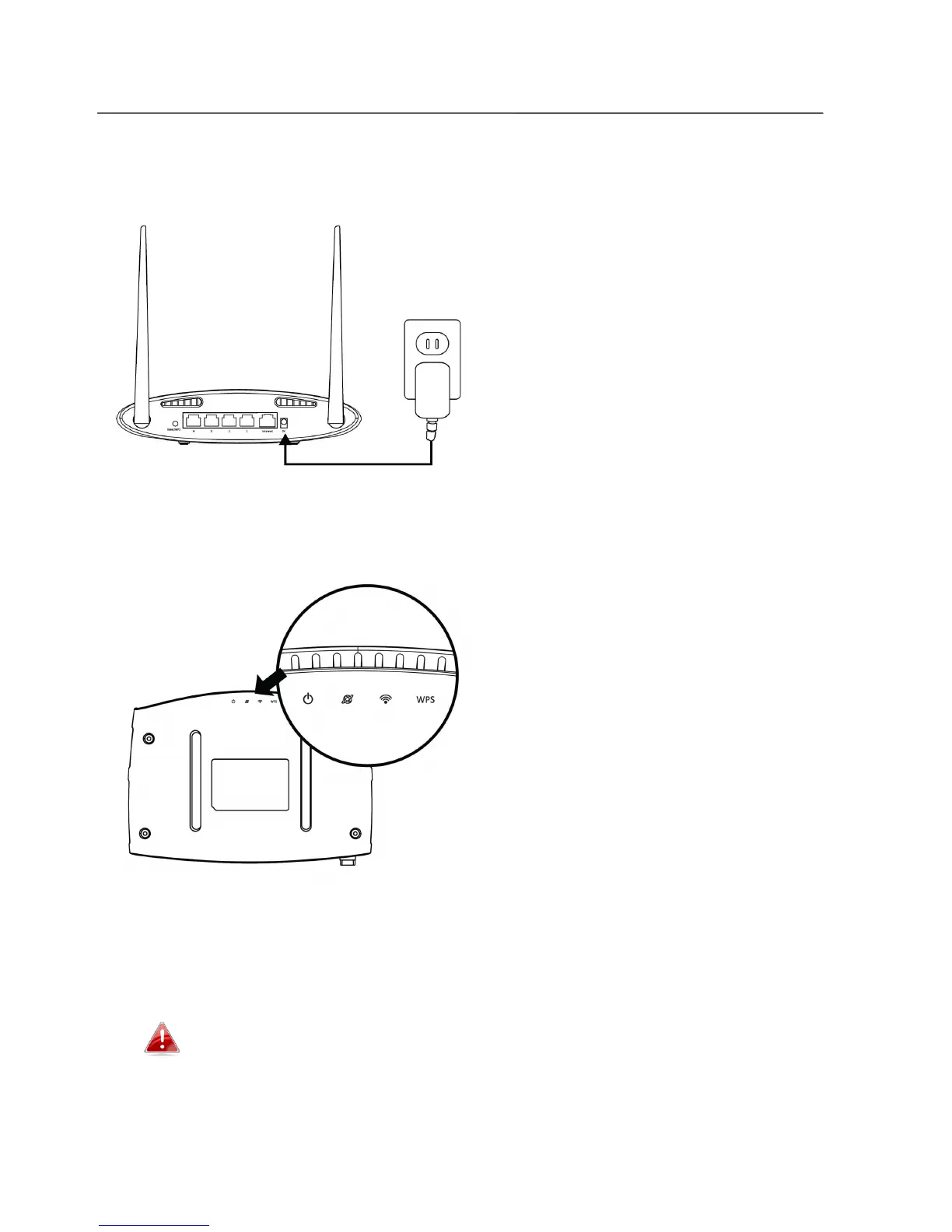

II. Installation
1. Plug the included power adapter into the device’s 5V DC power port and
the other end into an electrical socket.
2. Ensure that the power LED is lit. If not, the device is not properly
connected.
3. Use a Wi-Fi device (e.g. computer, tablet, smartphone) to search for a Wi-Fi
network with the SSID “edimax.setup” and connect to it.
iOS 4 or Android 4 and above are required for setup on a
smartphone or tablet.
4. Open a web browser and if you do not automatically arrive at the “Get
Started” screen shown below, enter the URL http://edimax.setup and click
“Get Started” to begin the setup process.

Edimax BR-6428nS V3 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Input current	1 A
Rack mounting	-
Supported protocols	PPPoE, static IP, dynamic IP, PPTP & L2TP
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product color	White
LED indicators	Activity, LAN, Link, Power, WAN
Flash memory	4 MB
Certification	CE, FCC, NCC, BSMI
Internal memory	32 MB
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Output voltage	5 V

Weight and Dimensions

Depth	162 mm
Width	190 mm
Height	42 mm
Weight	245 g
