11

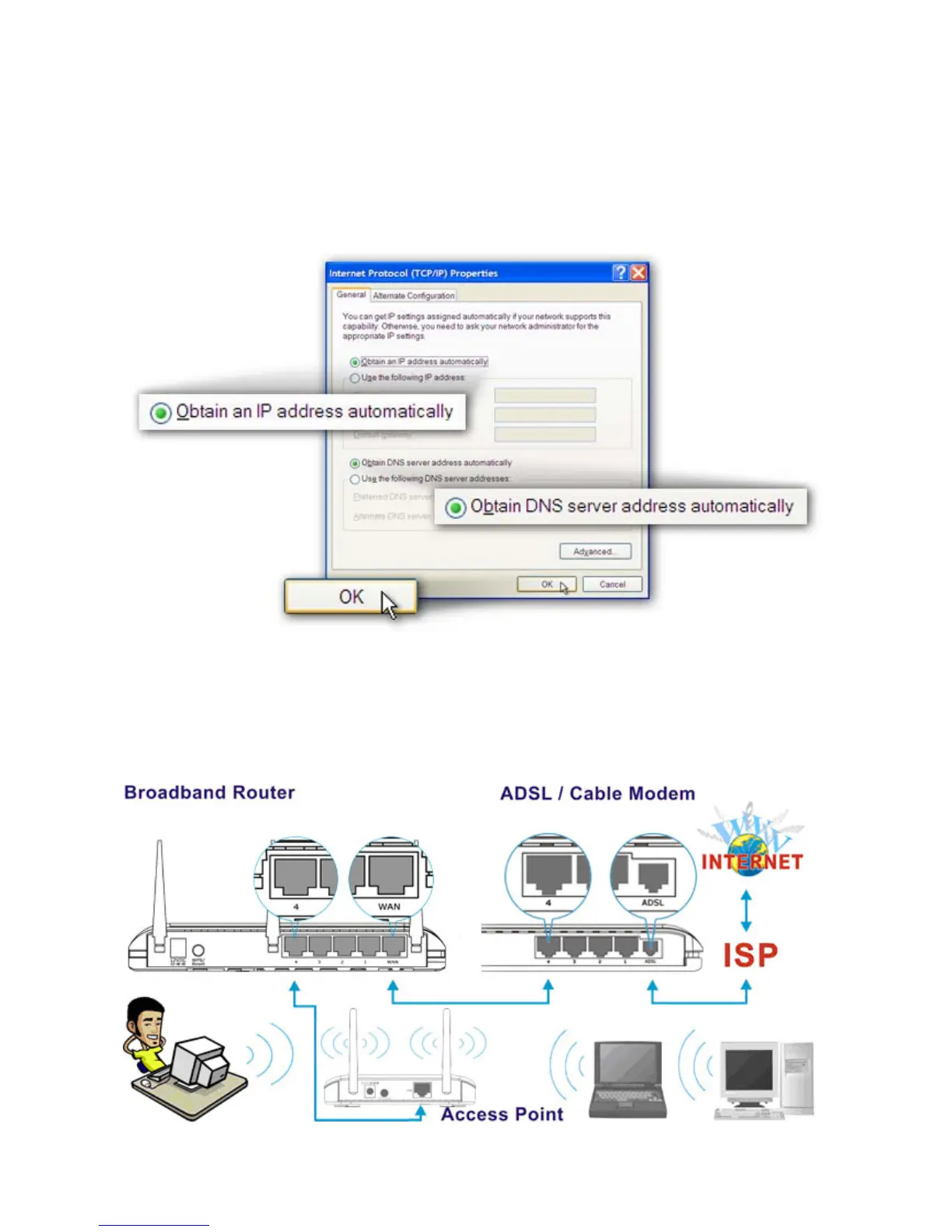

4. After the configuration is done, please change your PC’s IP
address back to original setting either “Obtain an IP address
automatically” / “Obtain DNS server address
automatically” or “Using the following IP address” / “Use
the following DNS server addresses”. Press “OK” to close.
Finally, connect the Access Point to your router or switch.
Now you can use the wireless card in your PC to connect to the
Internet / Intranet wirelessly as shown below:

Other manuals for Edimax EW-7416APn

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Edimax EW-7416APn and is the answer not in the manual?

Edimax EW-7416APn Specifications

General IconGeneral
Interface10-100M UTP Port x 1
Networking featuresIEEE 802.11b/g/n
Antenna typeExternal
Antenna featuresDipole antenna, Detachable antenna
Antennas quantity2
Antenna gain level (max)3 dBi
Flash memory4 MB
Internal memory16 MB
Built-in processorYes
Output voltage12 V
Output power description11n: 15±1dBm, 11g: 15±1dBm, 11b: 18±1dBm
Operating temperature (T-T)10 - 40 °C
Operating relative humidity (H-H)10 - 90 %
CertificationFCC, CE
Security algorithms802.1x RADIUS
Weight and Dimensions IconWeight and Dimensions
Dimensions (WxDxH)127 x 96 x 30 mm
