Edimax EW-7416APn Quick Installation Guide

7

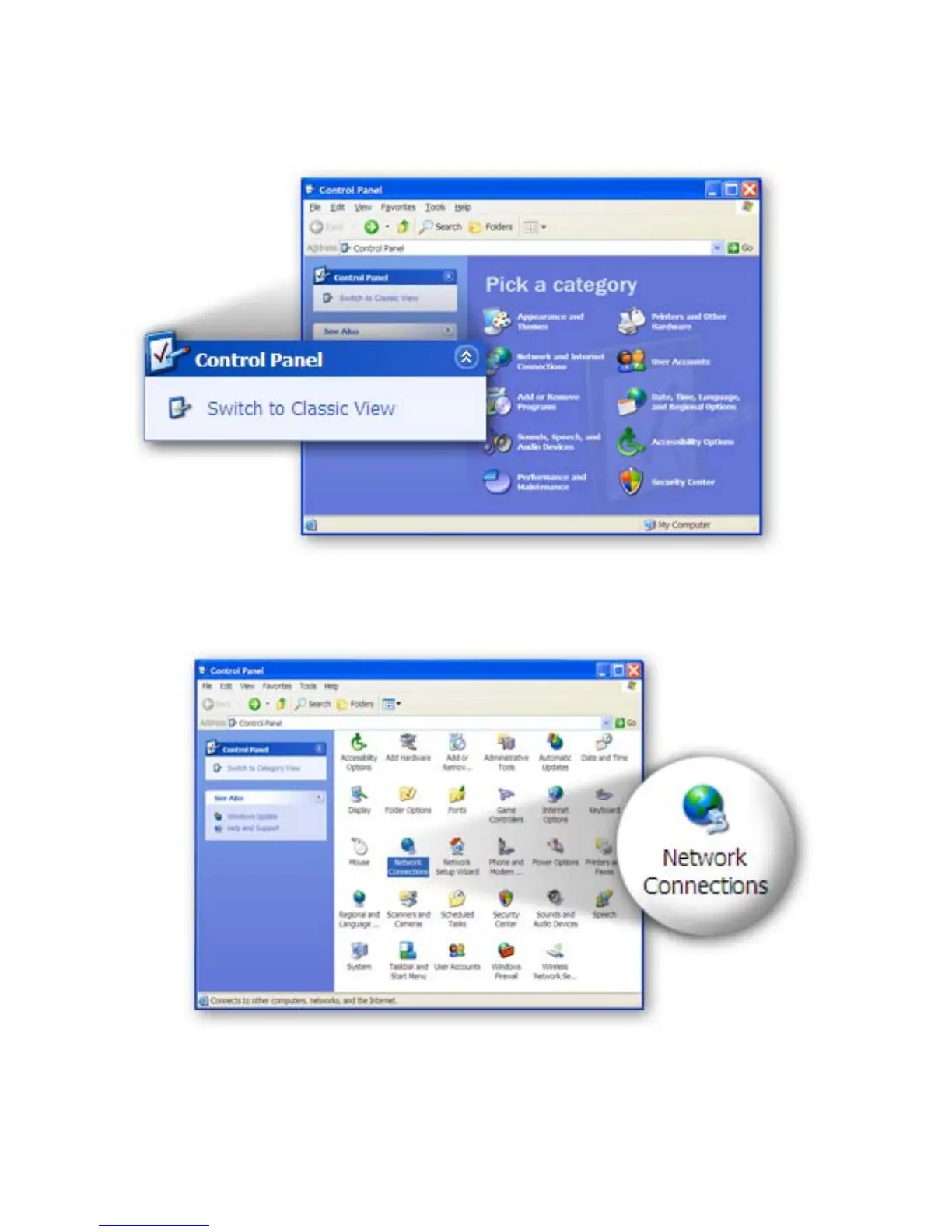

2. Click “Switch to Classic View” on the top left corner to see
more setting icons…
3. Find the “Network Connection” icon then Double-Click to
open the network connection settings.

Edimax EW-7416APn Specifications

General

Interface	10-100M UTP Port x 1
Networking features	IEEE 802.11b/g/n
Antenna type	External
Antenna features	Dipole antenna, Detachable antenna
Antennas quantity	2
Antenna gain level (max)	3 dBi
Flash memory	4 MB
Internal memory	16 MB
Built-in processor	Yes
Output voltage	12 V
Output power description	11n: 15±1dBm, 11g: 15±1dBm, 11b: 18±1dBm
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE
Security algorithms	802.1x RADIUS

Weight and Dimensions

Dimensions (WxDxH)	127 x 96 x 30 mm
