Edimax EW-7428HCn Quick Installation Guide

2

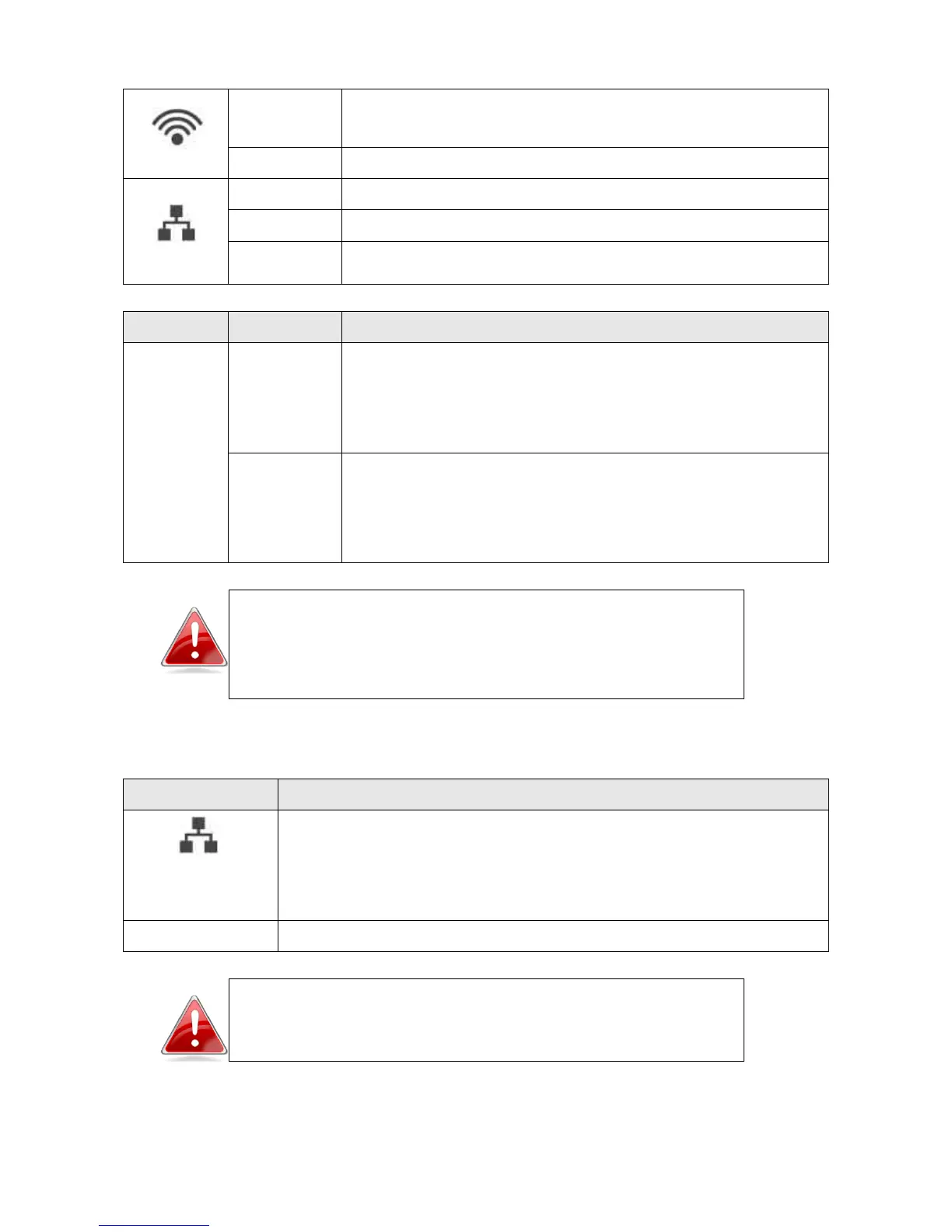

(2) Wi-Fi
On
WPS is activated and the device is waiting for a
WPS signal from another device
Flashing
Wi-Fi activity (transferring data)
(3) LAN
On
Connected to a local area network
Off
Not connected to a local area network
Flashing
LAN activity (transferring data)
Item
Function
Description
(4) Reset/
WPS
WPS
Press and hold this button for 2 seconds to
activate WPS mode, during which this device will
attempt to automatically connect to a
WPS-enabled client device.
Reset
To reset the device to factory default settings,
press and hold the button for 10 seconds, until
the Power LED starts flashing. Release the button
to initiate reset procedures.
Note: Please note that the hardware WPS button
only works when connecting to wireless clients. It
will have no effect when the device itself is in
Wireless Client Mode.
Back Panel
Item Name
Description
(5) LAN Port
Connects to an Ethernet cable. This device is capable of
Power over Ethernet (PoE), so if the cable is connected
to a PoE switch, then this device will be powered by the
Ethernet cable alone.
(6) 5V DC
Connects to the power adapter.
Note: Please do not connect the power adapter if
the device is already connected to a PoE switch via
the LAN port.

Edimax EW-7428HCn Specifications

General

Brand	Edimax
Model	EW-7428HCn
Category	Wireless Access Point
Language	English
