CHAPTER 4 - MAINTAINING THE EDLUND CROWN PUNCH CAN OPENER
This chapter covers regular maintenance procedures that will ensure the best performance and long life of your
opener.
Adjusting the Head
BEFORE PERFORMING ANY MAINTENANCE, YOU MUST DISCONNECT THE OPENER FROM THE AIR SUPPLY.
1. Place the can that you want to adjust the machine to below and against the guard ring tab.
2. Loosen the four (4) "T" bolts at the rear of the vertical (Figure 3) and raise or lower the Head as needed,
keeping the can and guard ring aligned and level.
Tip: Placing a 1/8 to 3/16-inch thick shim between the can and guard ring will help.
3. Tighten the four (4) "T" bolts.

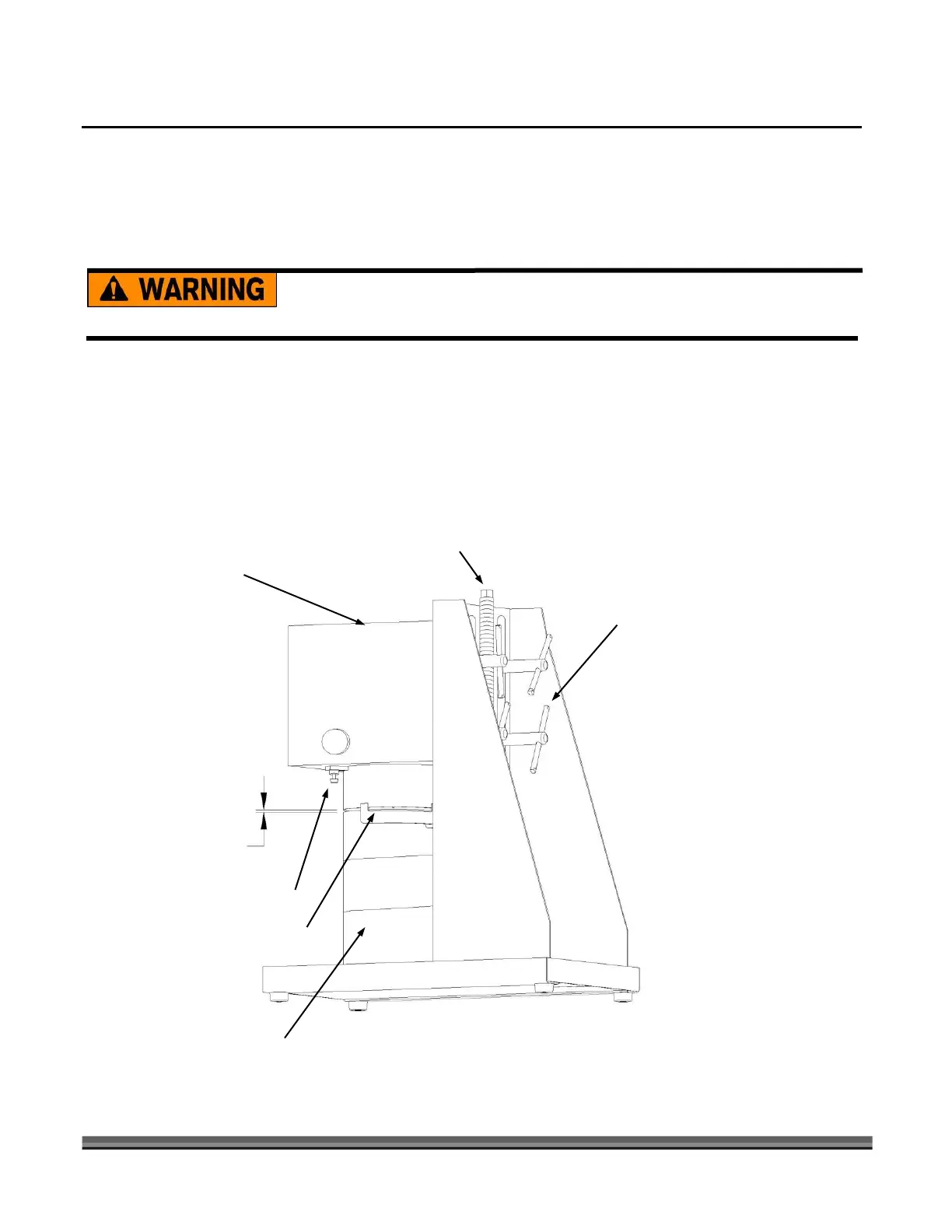

Figure 3
1/8" (3,2 mm)
to
3/16" (4,8m)
Can
"T" Bolts
Ratchet Wrench not shown
Thumbs
crews
Thumb Screw
2X
Guard Ring
Can
Punch Head
Head must be level
Ratchet Wrench
not shown
"T" Bolts
Figure 3
