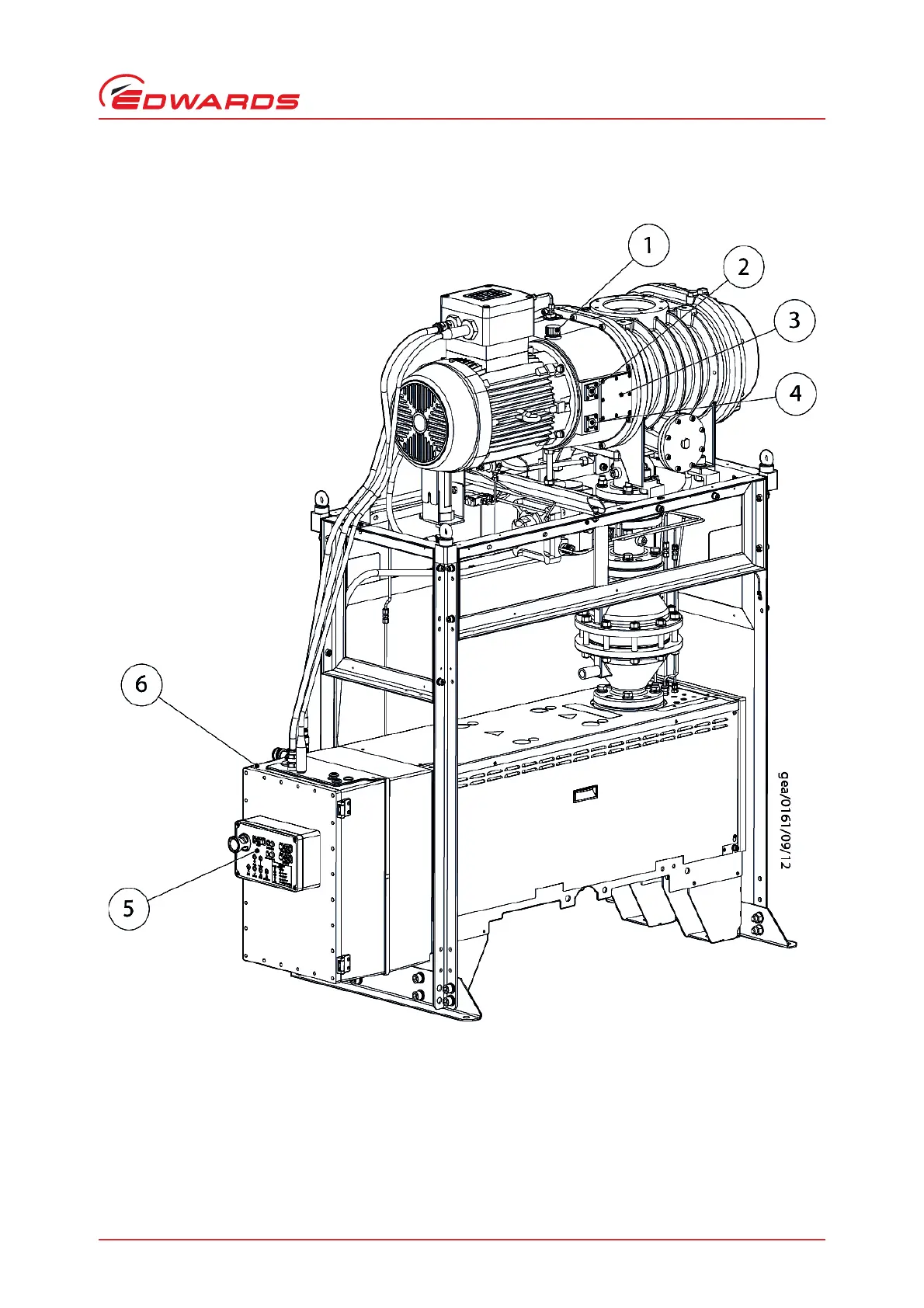

Figure 2 - Side view of CXS/EH pumping combination system showing display module (system with flame
arresters is shown)
1. Shaft seal reservoir vented oil plug
2. Oil level sight glass (shaft seal reservoir)
3. Direction of rotation sight glass (EH1200 only)
4. Oil level sight glass (hydrokinetic drive/gear cover)
5. Display module
6. CXS Exd control box
