INSTALLATION:
STEP 1
Model HA018240 requires 2 sets of wires and ground
(see wiring diagram)
Model HA024240 and HA027240 requires 3 sets of wires and ground
(see wiring diagram)
Model HA036240 requires 4 sets of wires and ground
(see wiring diagram)
STEP 2
Take each wire pair and connect them to one breaker (see wiring diagram). Make sure that each breaker has one wire
pair -black wire connected to it and one red wire.
CAUTION: Ensure that you have made the correct connections. You must follow the wire connection as
shown in Figure 2 & 3 to ensure proper operation of the unit. If you cross a set of wires, the unit will not operate
correctly even though it turns on and otherwise appears to function properly.

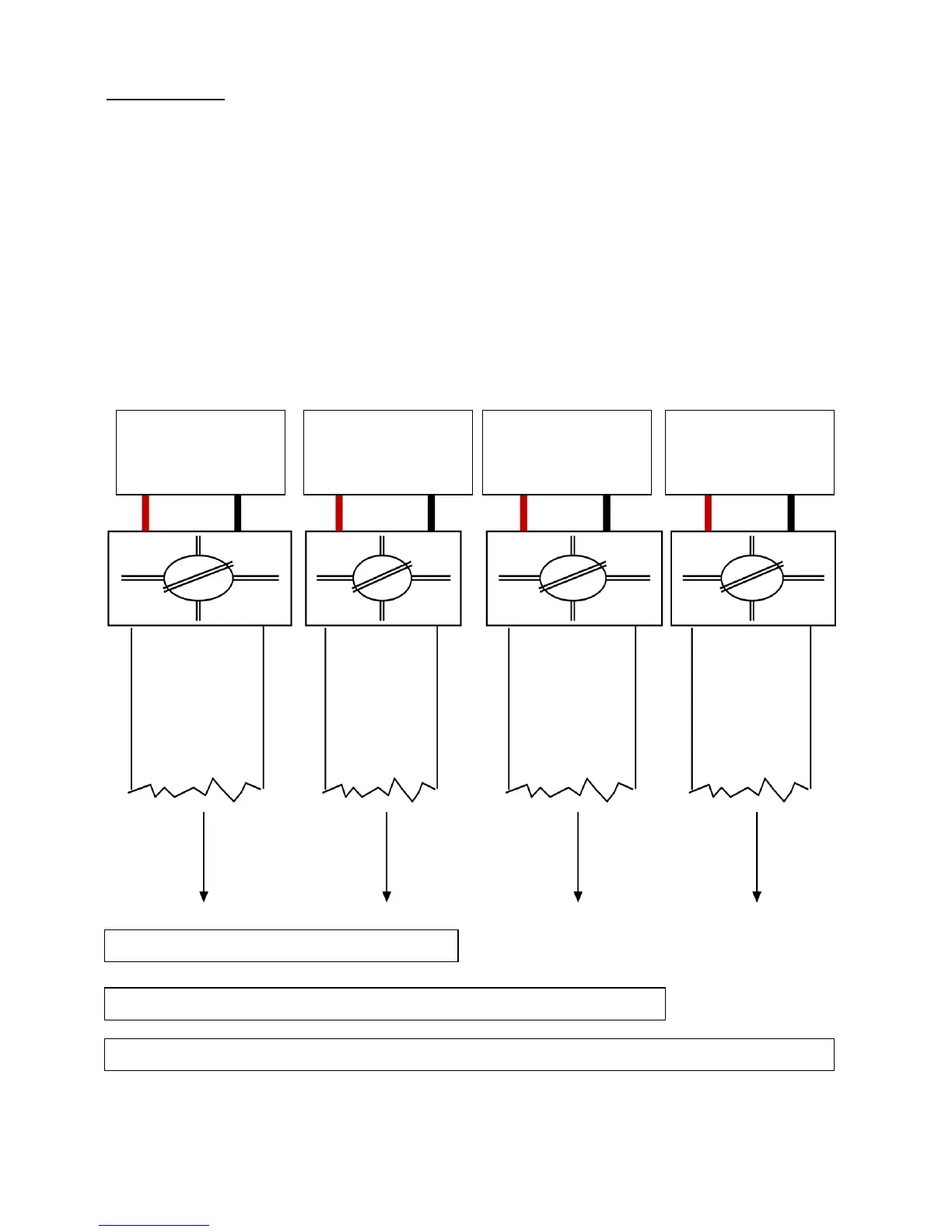

Figure #2
HA018240 requires 2 set of breakers and wires
HA024240 and HA027240 require 3 sets of breakers and wires
HA036240 requires 4 sets of breakers and wires
