EFA SB 327 E - Page 23

Schmid & Wezel
Seite / Page
23 / 33
Stand / Version
01 / 2020

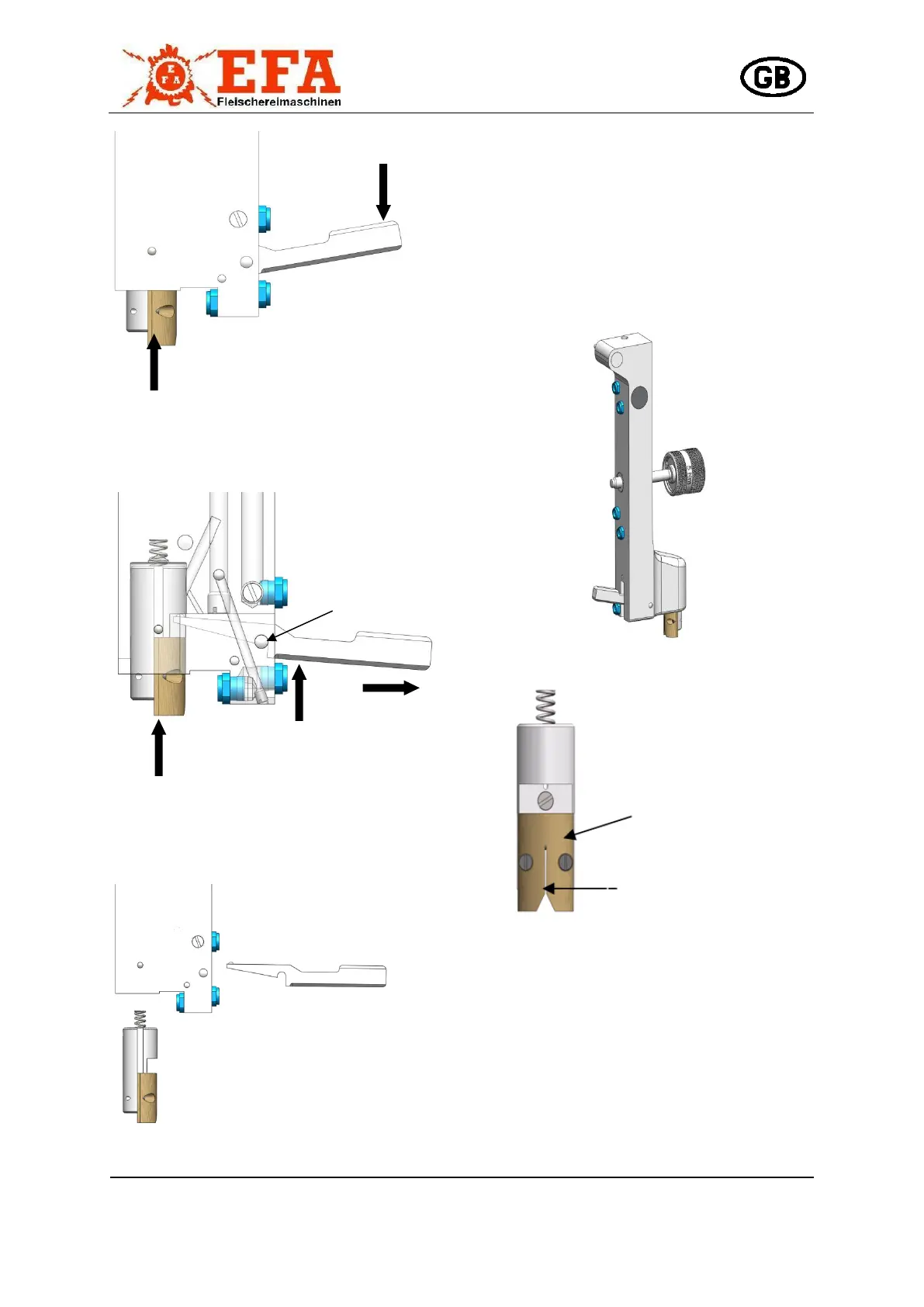

Fig. 7 Replacing the guide (2)
 Push the lever down (1)
 The guide will move up (2)
Fig. 8 Replacing the guide (3)
 Hold the guide at its top point (3)
 Lift the lever up and out of the fixture (4)
 Remove the lever from the rail (5)
Fig. 9 Replacing the guide (4)
 Install the saw belt, see section 22 Assem-
bling the saw belt
 You have now uninstalled the fibre guide (6)
and lever (7)
You can now check both parts for wear and re-
place worn parts as necessary!
Front rail
Take the same steps to disassemble the front
rail of the splitting saw for maintenance pur-
poses.
Fig. 10 Replacing the guide (5)
Fig. 11 Replacing the guide 6
Install the saw belt, see section 22 Assembling
the saw beltMontage Sägeband.
1
2
3
4
Fixture
5
6
7
Fibre
guide
New gap 0,6mm
(Max. gap 2mm)
