EFF EFF 309X - Page 6

**) Potential free loop is closed when connection cable is connected to lockcase.
*) not micro switch locks
COMMON FOR BOLT OUT / HANDLE DOWN / KEY CYLINDER USED
12V DC (-10%) - 24V DC (+15%) STAB. *)
+

LOCKED / OPEN *)
HANDLE DOWN BOLT OUT BOLT IN
COMMON FOR BOLT IN / TRIGGER BOLT IN
SABOTAGE LOOP **)
MONITORING OUTPUTS
White Red Blue
Turquoise
Violet
Orange
Yellow Grey Pink
Brown
TRIGGER BOLT IN
KEY CYLINDER USED
Green/Red

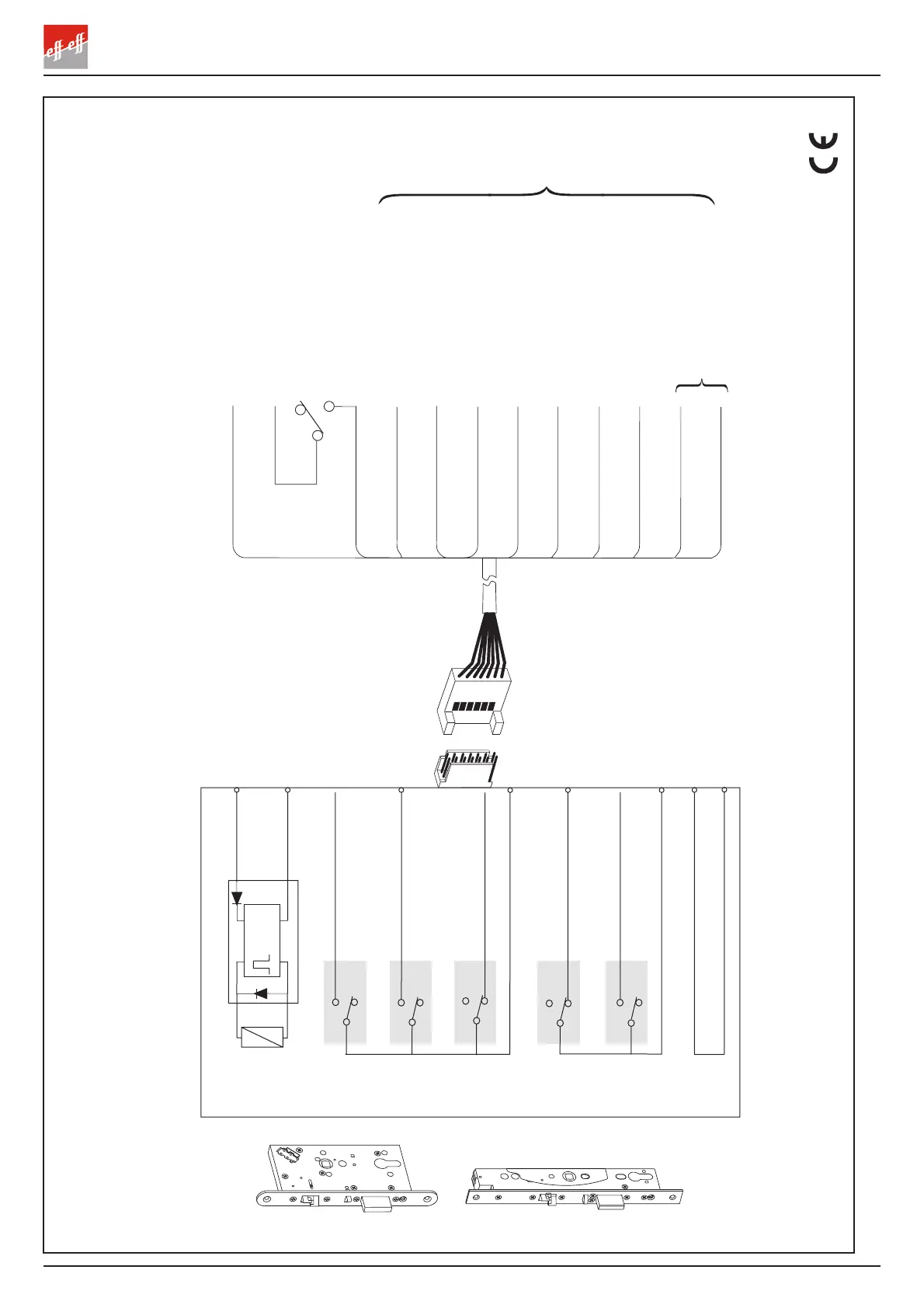

WIRING DIAGRAM
409X/709X
Connection cable Length 10m 16 x 0.14 mm
2
Micro switches of lock case when: - Key cylinder not used - Handle not used - Bolt out - Trigger bolt in - Bolt not in
(POTENTIONAL FREE CONTROL)
Lock case
Control Unit
Solenoid
Red
White
+12 - 24V DC
GND / Control
Orange
Yellow
Brown
Grey
Pink
Violet
Turquoise
Green/red
Blue
COMMON
KEY CYLINDER USED
HANDLE DOWN BOLT OUT
TRIGGER BOLT IN
BOLT IN
COMMON
SABOTAGE LOOP
