8.3.3 RS485 interface wiring

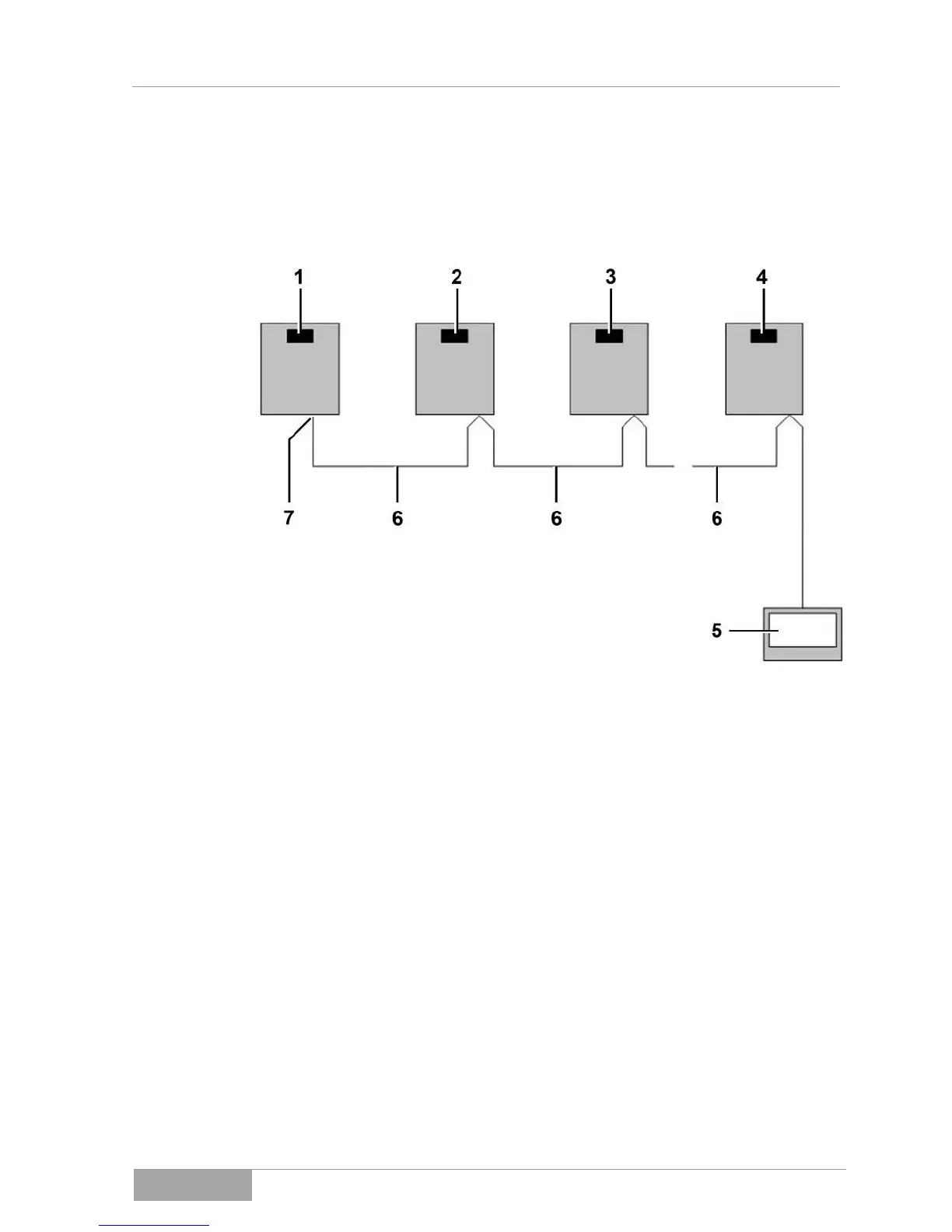

DC Several photovoltaic solar inverters with Solar-Log
TM
1 Solar inverter address 1
2 Solar inverter address 2
3 Solar inverter address 3
4 Solar inverter address 4
5 Solar-Log
TM
6 RS485
7 Terminating resistor jumper "ON"
Fig. 8-3-3 - 1 Solar-Log
TM
