Effekta ES4200 - USB Card Details

Photovoltaic Solar Inverter Series ES
Comunication Interfaces
ES series
62

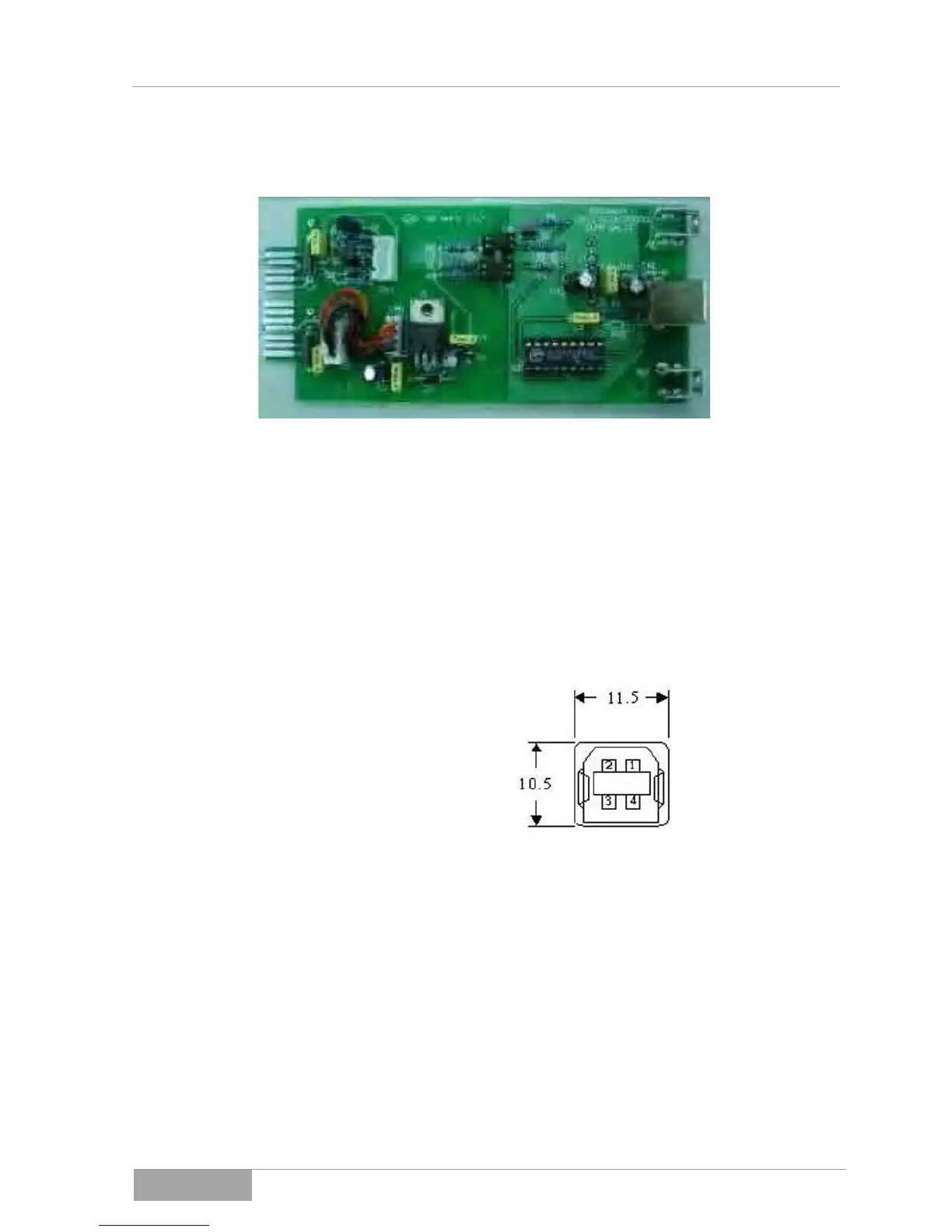

8.3.4 USB card
Fig. 8-3-4 - 1 USB card
Definition:
– Compatible USB version 1.0, 1.5 MBit/s
– Compatible HID Version 1.0
Pin assignment for the USB card
1 VCC (+ 5 V)
2 D –
3 D +
4 GND
Fig. 8-3-4 - 2 USB card pin assignment
