3.2.2 Display and connections ES4200 / ES5000
1 Front panel with LCD display and LED displays
Operation and display of the operating state of the photovoltaic solar
inverter
2 Data transmission interface (option)
USB, RS485, floating contact, TCP/IP
3 AC output terminal
AC output for power supply connection
4 Data transmission interface (standard)
RS232
5 Interface for emergency shutdown
EPO
6 Feed for PV module
Plug and holders for the connection of the solar module:
ES4200: 3 connections (2 MPPT)
ES5000: 3 connections (2 MPPT)

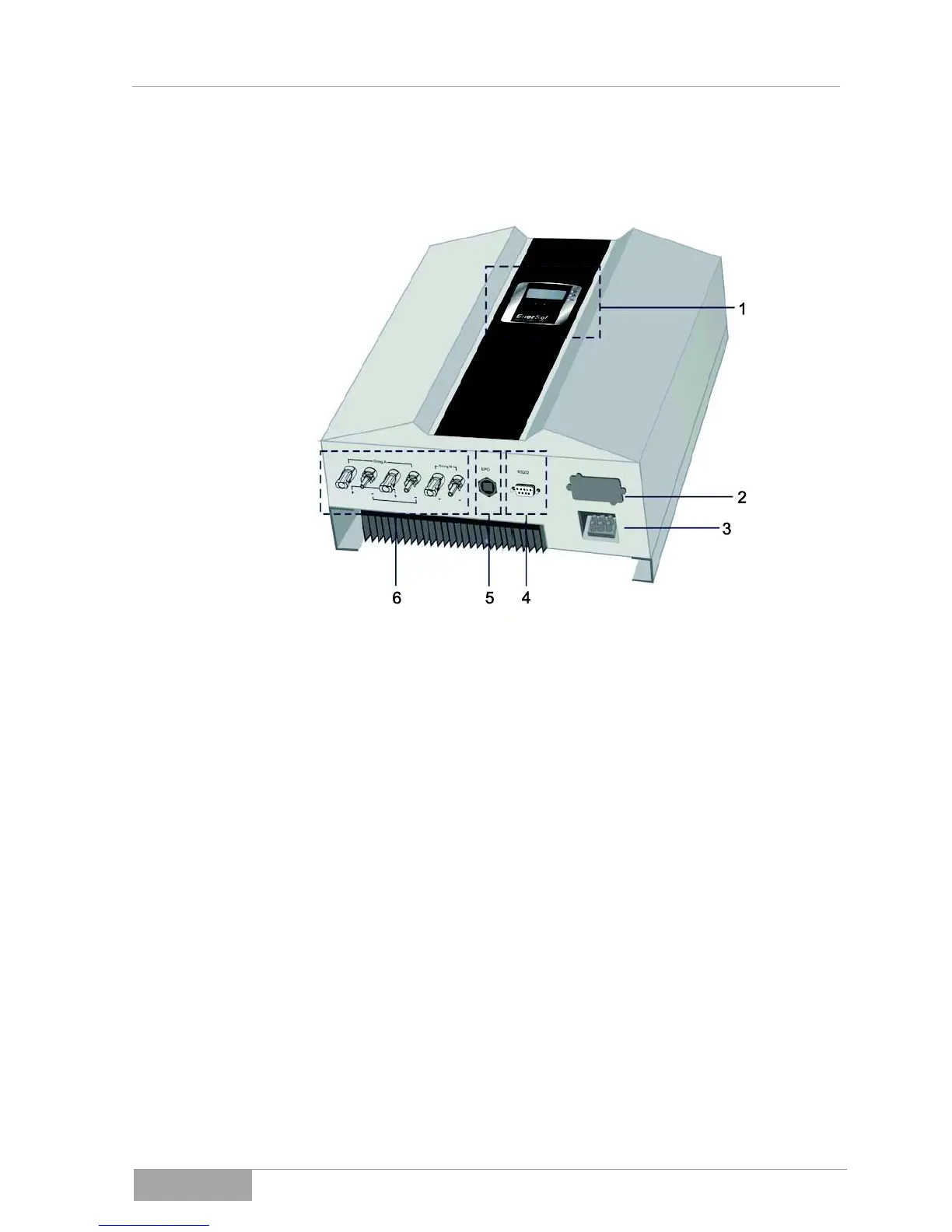

Fig. 3-2 - 2 Display and connections ES4200 / ES5000
