Photovoltaic Solar Inverter Series ES
Electrical Installation
ES series
35

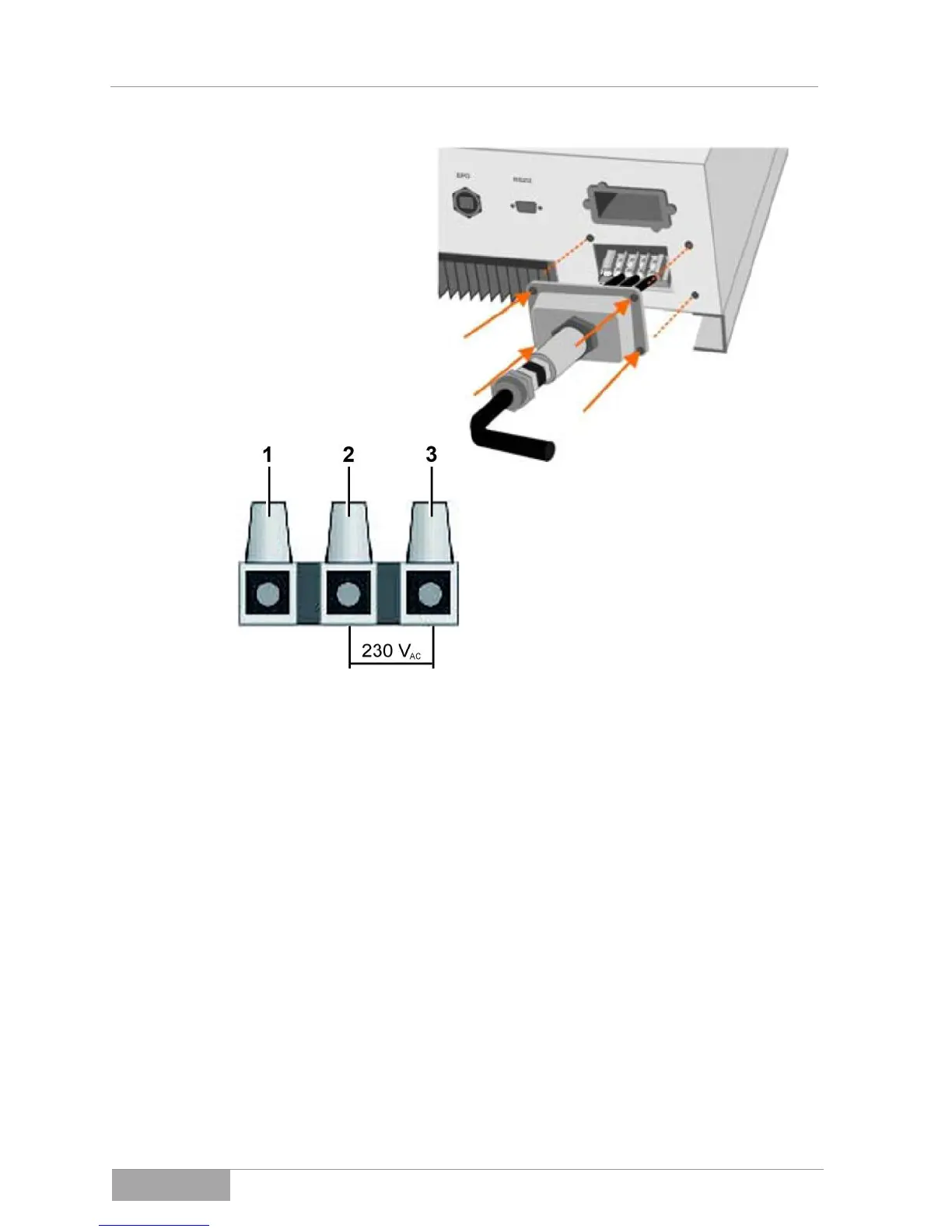

1 PE Grounding conductor (yellow-green)
2 N Neutral
3 L Conductor
Fig. 5-1 - 4 Power cable connection
