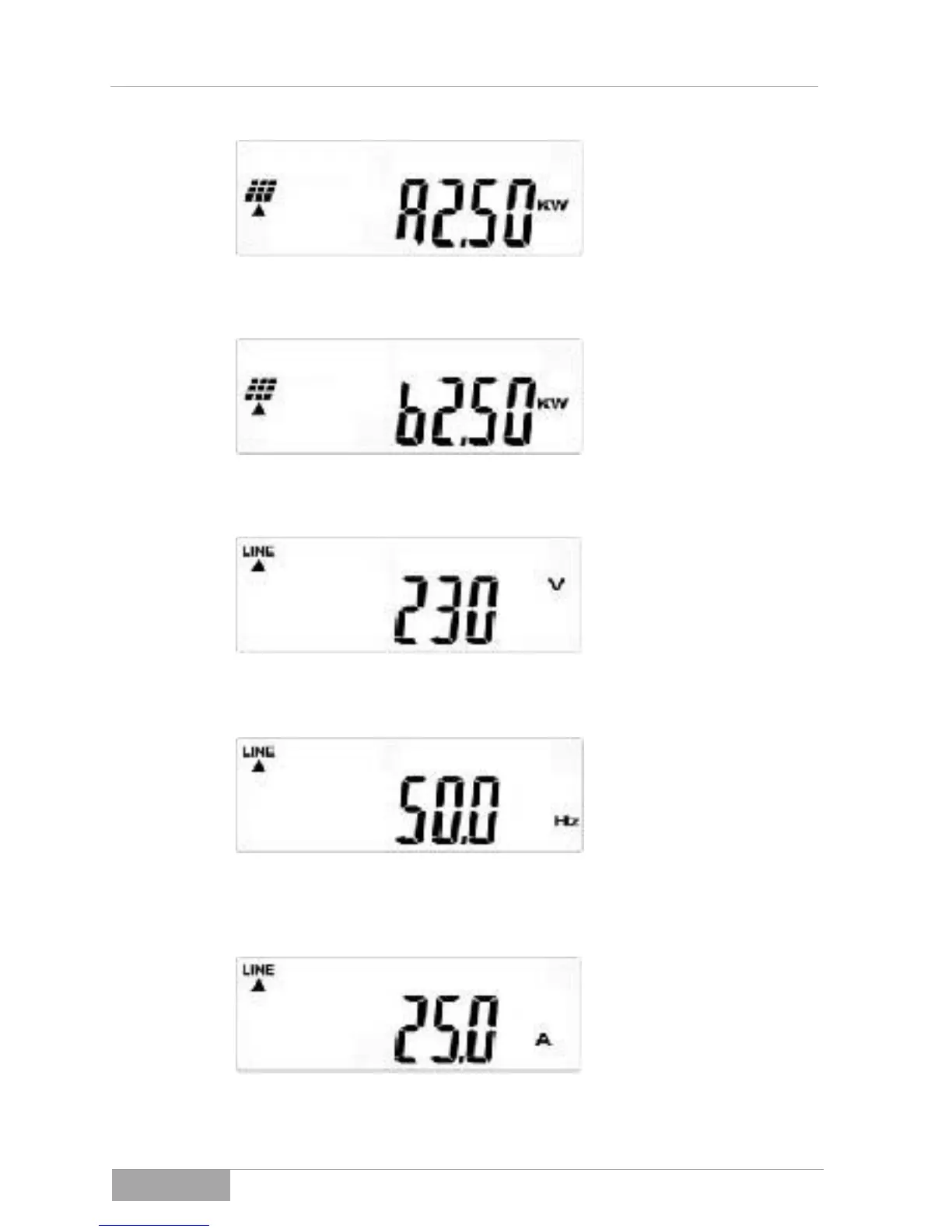

Fig. 7-4 - 10 Display P - String A output power
Fig. 7-4 - 11 Display Q - String B output power
Fig. 7-4 - 12 Display R - Output voltage of the photovoltaic solar inverter
Fig. 7-4 - 13 Display S - Frequency of the photovoltaic solar inverter
output voltage
Fig. 7-4 - 14 Display T - Output current of the photovoltaic solar inverter
