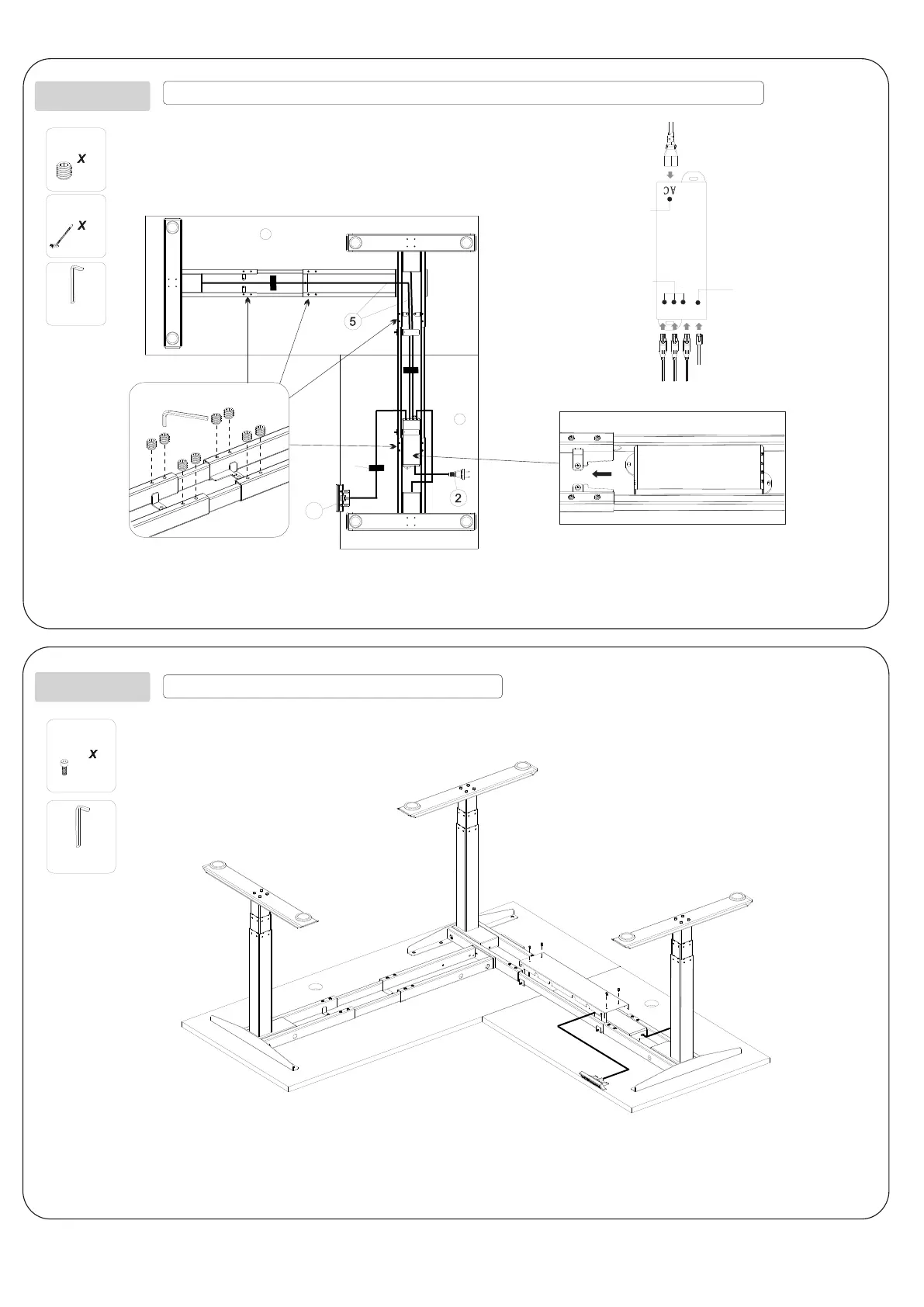

connect all the cables to the Control Box ①.
Allen Key
3mm
Note : Use Zip Ties (D) to secure cables under the table.
7
STEP 10
H
Firmly secure the Crossbar with Screws (A) and
Allen Key
4mm
16
A D
10
A
Attach the Cable Tray ⑧ to the Hangers with screws.
Power Port
Lifting Column Ports
Keypad Port
M 3M 2M 1 H S
STEP 11
M 3M 2M 1 H S
Keypad Port
Lifting Column Ports
Power Port
Slider for Control Box
J
Allen Key
4mm
16
D
10
J
4
