Mount the 10 uF Capacitors

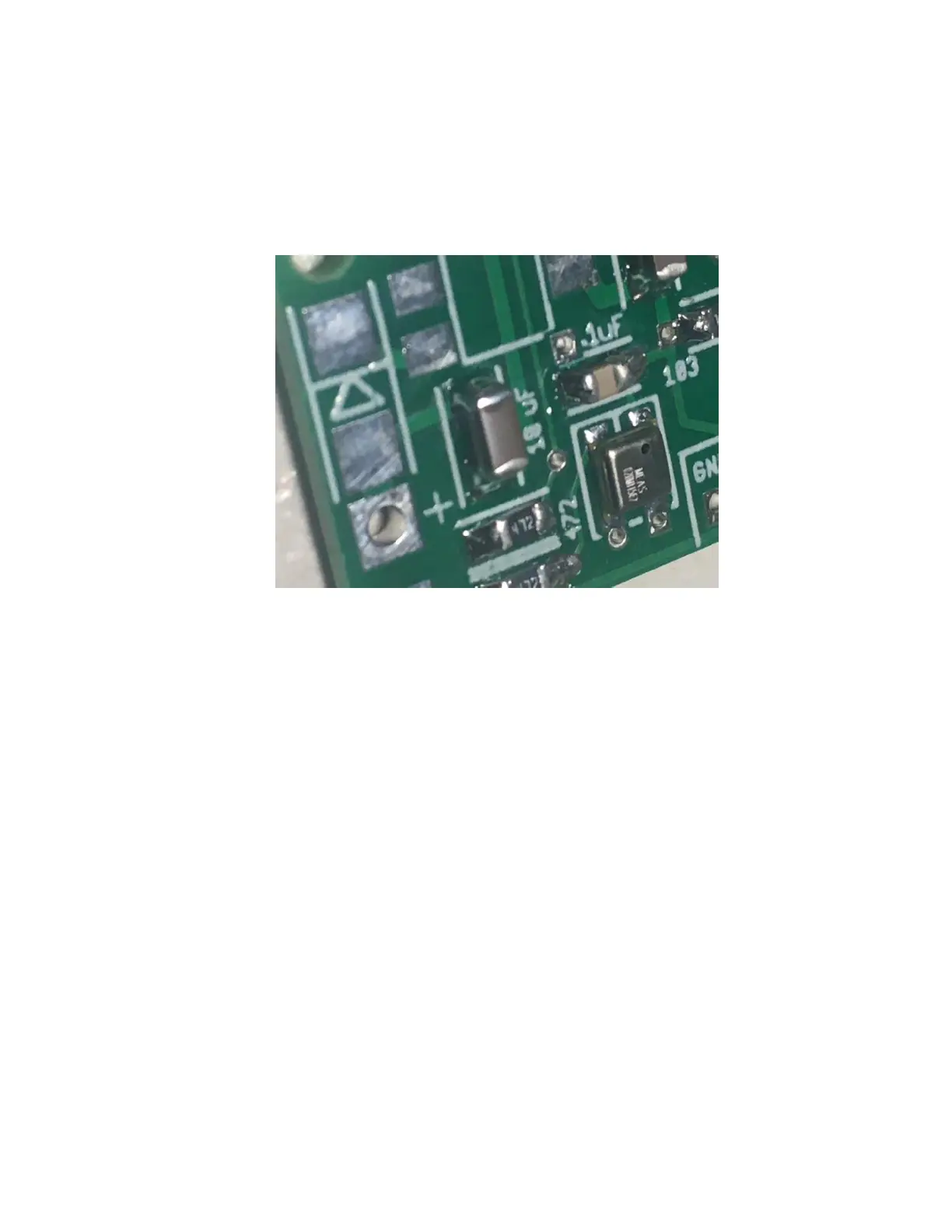

___ Locate the space for the 10 uF capacitor just above the two 4.7K resistors.
___ Solder the 10 uF capacitor in place in the same manner as the other resistors &
capacitors.
___ Locate the second 10 uF capacitor, to the left of the processor and the .1 uF capacitor.
___ Solder the 10 uF capacitor in place in the same manner as the other resistors &
capacitors.
