Mount the Two 4.7K Resistors

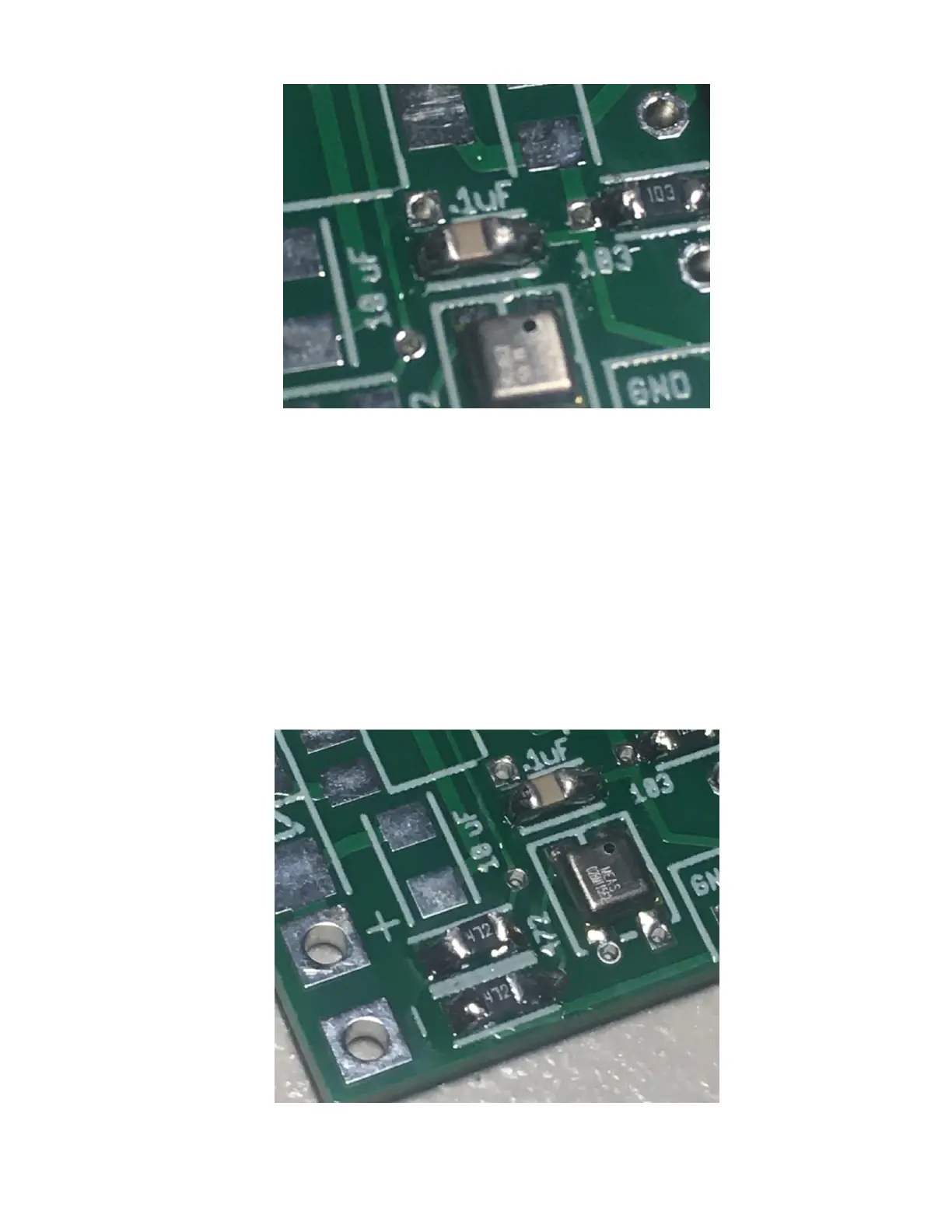

___ Locate the spot for the two 4.7K resistors, they’re just to the left of the silver baro
sensor and are marked “472” on the board.
___ Tin the right pad of the top 4.7K resistor.
___ Solder the top 4.7K resistor in place in the same manner as the other resistors &
capacitors.
___ Similarly, mount the bottom 4.7K resistor.
