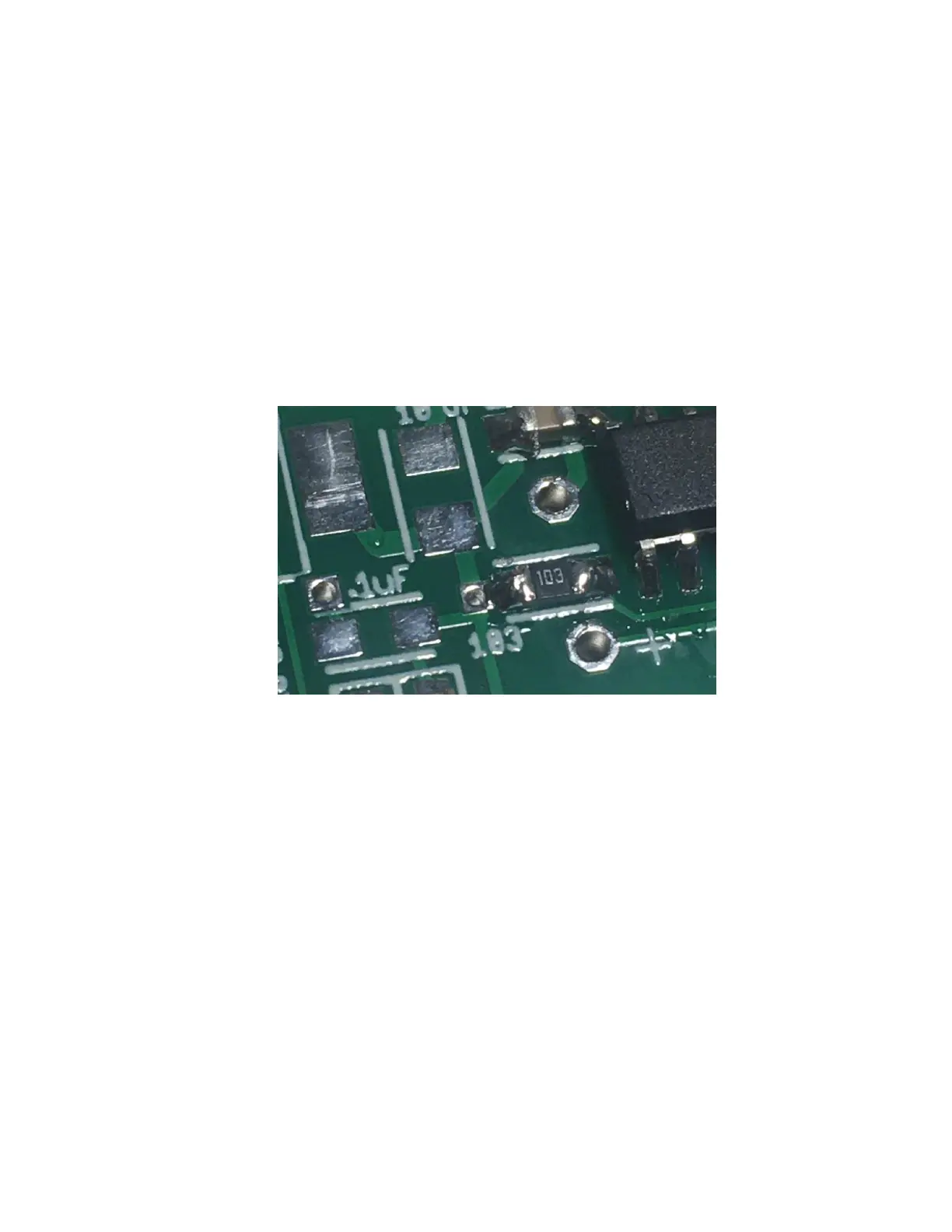

Mount the 10K Resistor
___ Locate the 10K resistor pads, it’s next to the Pin 1 mark on the processor and is marked
“103” on the board.
___ Tin the right pad of the 10K resistor next to the processor.
___ Solder the 10K resistor in place in the same manner as the other resistors. Note:
Unlike the .1 uF capacitor that you soldered earlier, this resistor does NOT connect to the
nearby processor lead, so if you get a solder bridge between the two you will need to remove
the excess solder with some desoldering wick.
Mount the .1 uF Capacitor Next to Baro Sensor
___ Locate the spot on the PC board for the .1 uF capacitor just above the silver baro
sensor.
___ Tin the right pad of the .1 uF capacitor.
___ Solder the .1 uF capacitor in place in the same manner as the other resistors &
capacitors.
