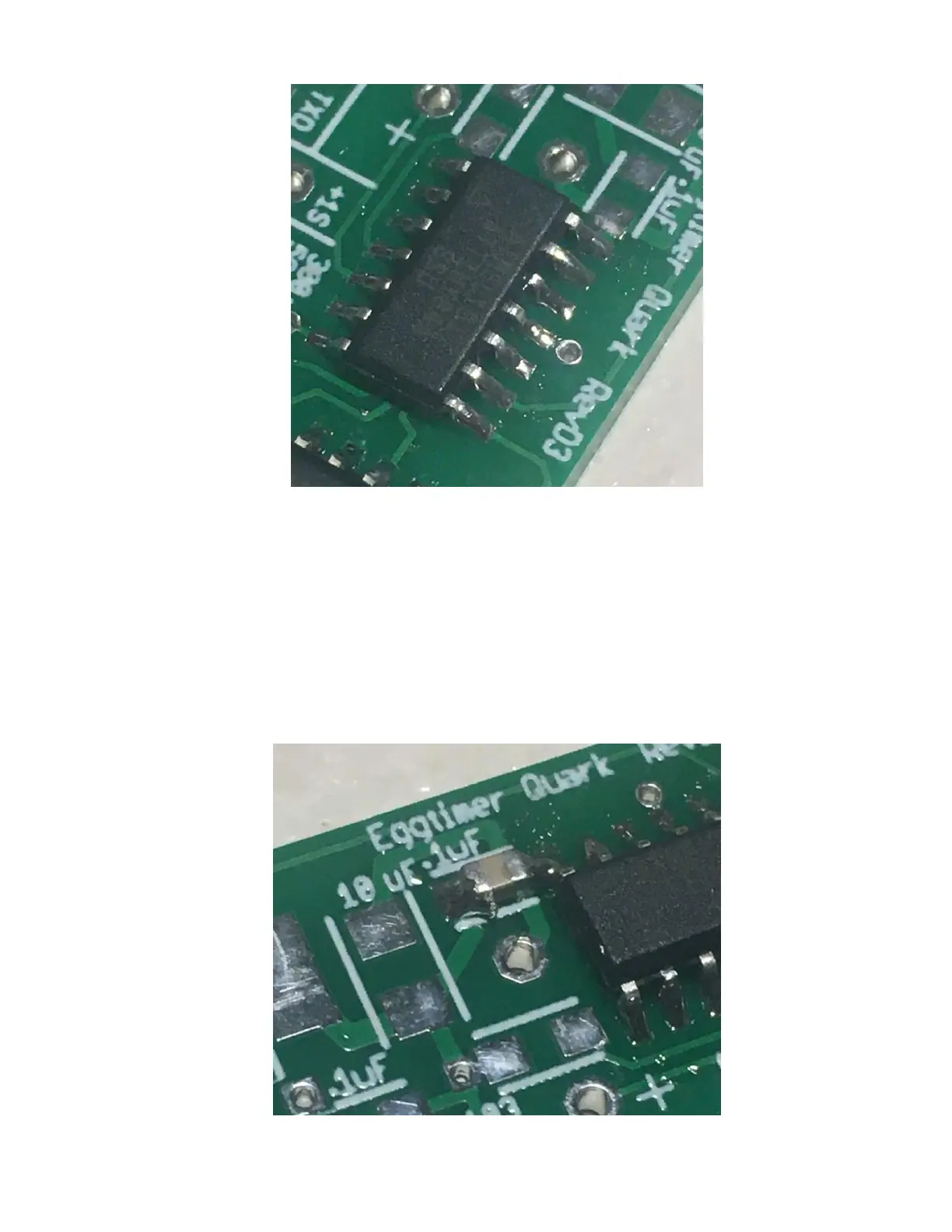

Mount the .1 uF Capacitor Next to the Processor
___ Tin the right pad of the .1 uF capacitor next to the processor.
___ Solder the capacitor in place in the same manner as the resistors. Note that the right
pad is next to the upper-right pad on the processor... they are actually connected, so don’t
worry about any extra solder getting on the processor lead.
