EGi 10401 COMPACT - Page 23

L
T
PIN
4
4 1 5
32 W 32 W 32 W 32 W 32 W 32 W 32 W 32 W
To 115-230 V~
mains
10 W; 100 V10 W; 100 V 10 W; 100 V 10 W; 100 V
05011 - Transformer
4 W; 50 W; 100 V
50 W (min. 4 W ---> (any parallel combination of no less than 4 W, paying careful attention to polarity +/). Examples: 8 x 32 W or 4 x 16 W or 2 x 8 W or 1 x 4 W)
---------------------> 50 W; 100 V (any 100 V speaker or line of speakers if NO MORE than 50 W, paying careful attention to polarity +/)
Audio OUT
PC, tablet, mobile, CD, DVD...
1205 1204
1204
1307 - 15 V Feeder
(K12G/IN, K13G.2, 40730)
2 4 5 6
+ 
1
1305.1 - MILLENNIUM amplifier
(any EGi amplifier with PIN input)
FM antenna
100 V
; 40 W
Z3
Z1
Z2

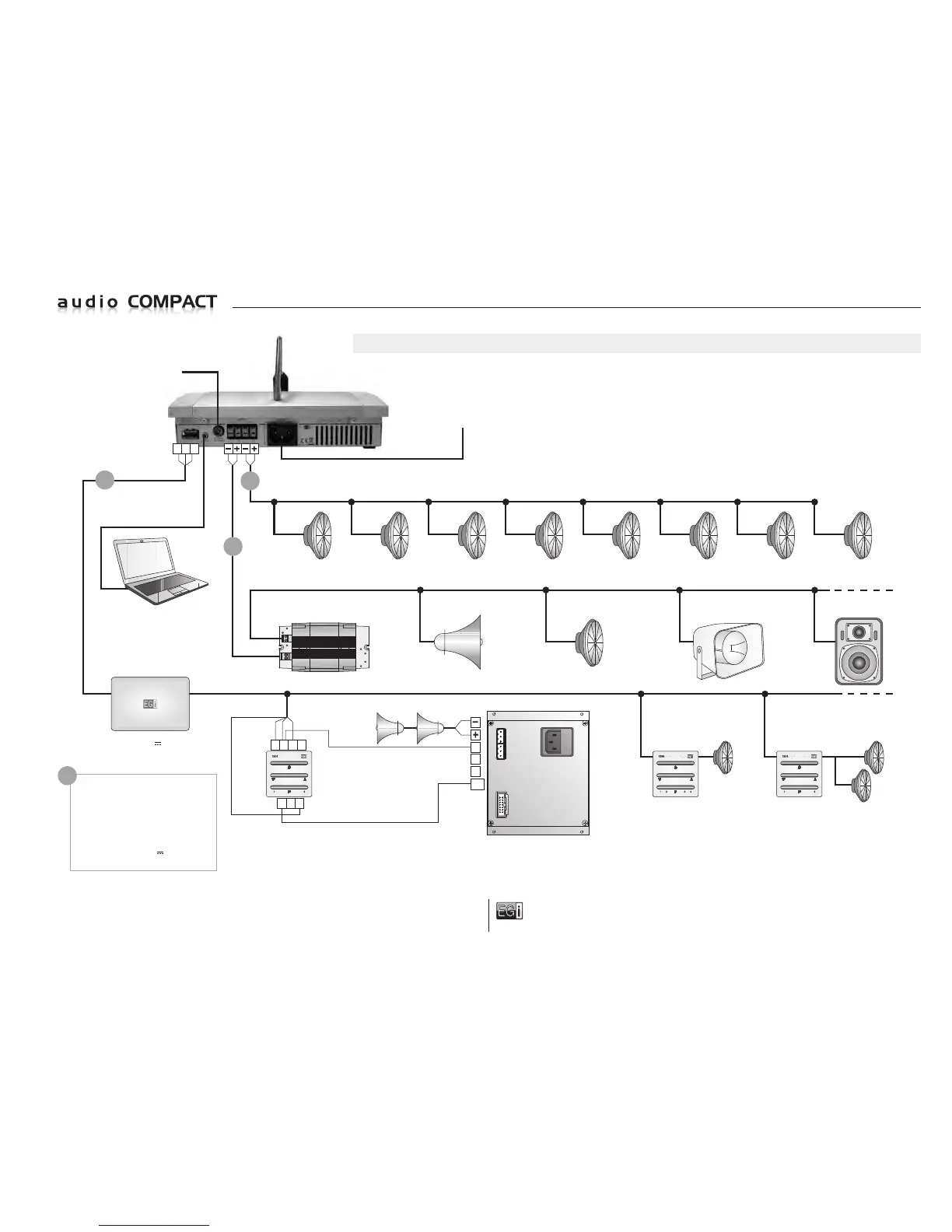

Wiring diagram
24
Input via
3.5 mm stereo jack
Z3
NOTE: The Z3 or Zone 3 output is the equivalent
of a MILLENNIUM output with one music channel
and one message channel to be able to activate
and control the1204 and 1205 control units while
at the same time these units control any
MILLENNIUM amplifier with a PIN input.
Calculate the power of the 15 V
feeder depending
on the number of control units to be installed.
EXAMPLE OF TYPE OF CONNECTION
