BASIC MAINTENANCE PROCEDURESBASIC MAINTENANCE PROCEDURES
CHECKING BRAKE PADSCHECKING BRAKE PADS

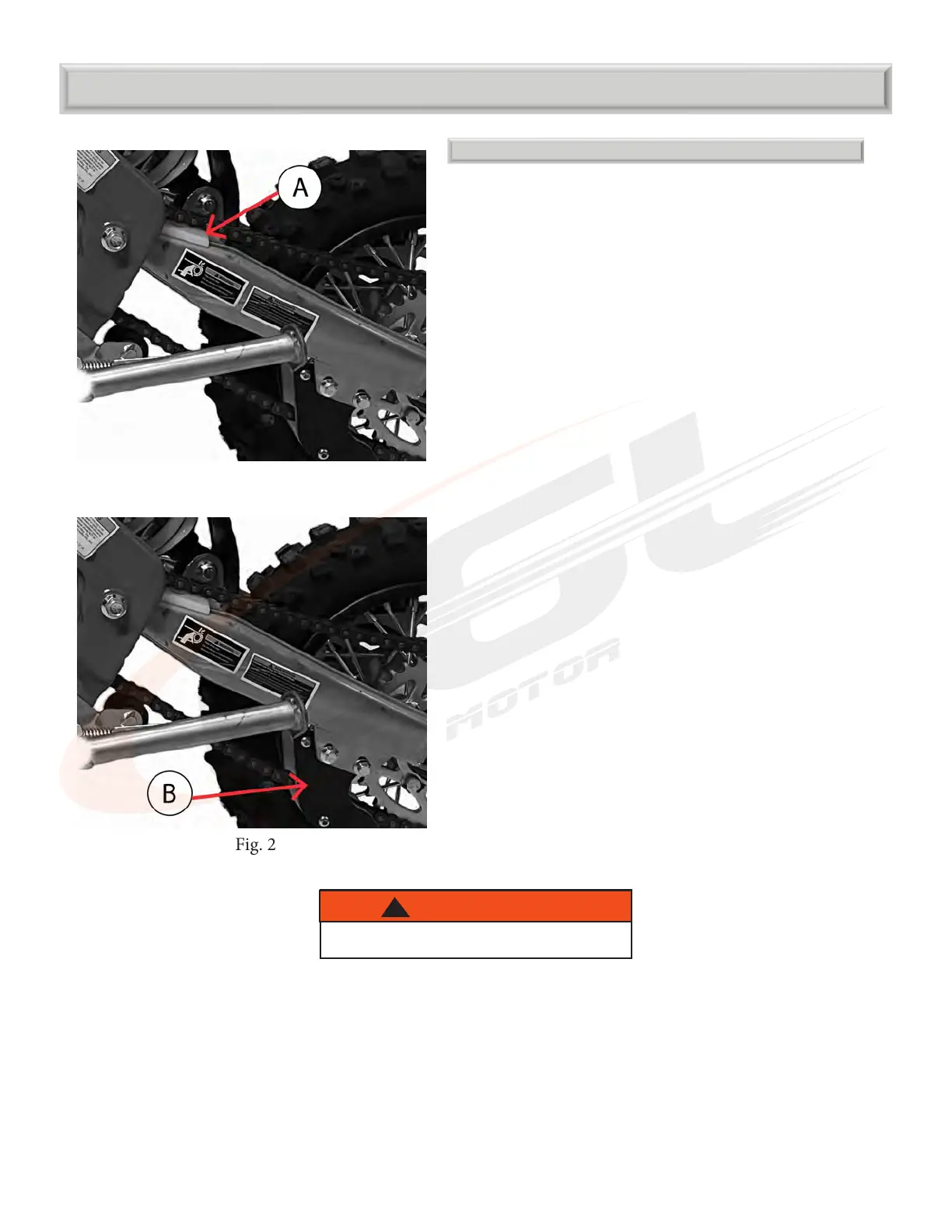

DRIVE CHAIN SLIDERS DRIVE CHAIN SLIDERS
1. Check the swing-arm chain slider (A)(A) for wear
and/or damage. Fig. 1Fig. 1
2. Replace the slider if falls below the limits
indicated below:
Top Section: 5 mm
Bottom Section: 3 mm
3. Check the rear sprocket chain guide slider (B)(B)
for wear and/or damage. Fig. 2Fig. 2
Fig. 1
Fig. 2
THE SLIDERS MUST BE REPLACED IF WORN DOWN
TOO FAR
NOTICE
!
