Ego Power+ LM2020 - Component Replacement and Lubrication

56-VOLT LITHIUM-ION CORDLESS MOWER — LM2020SP/LM2020SP-FC/LM2020/LM2020-FC 41

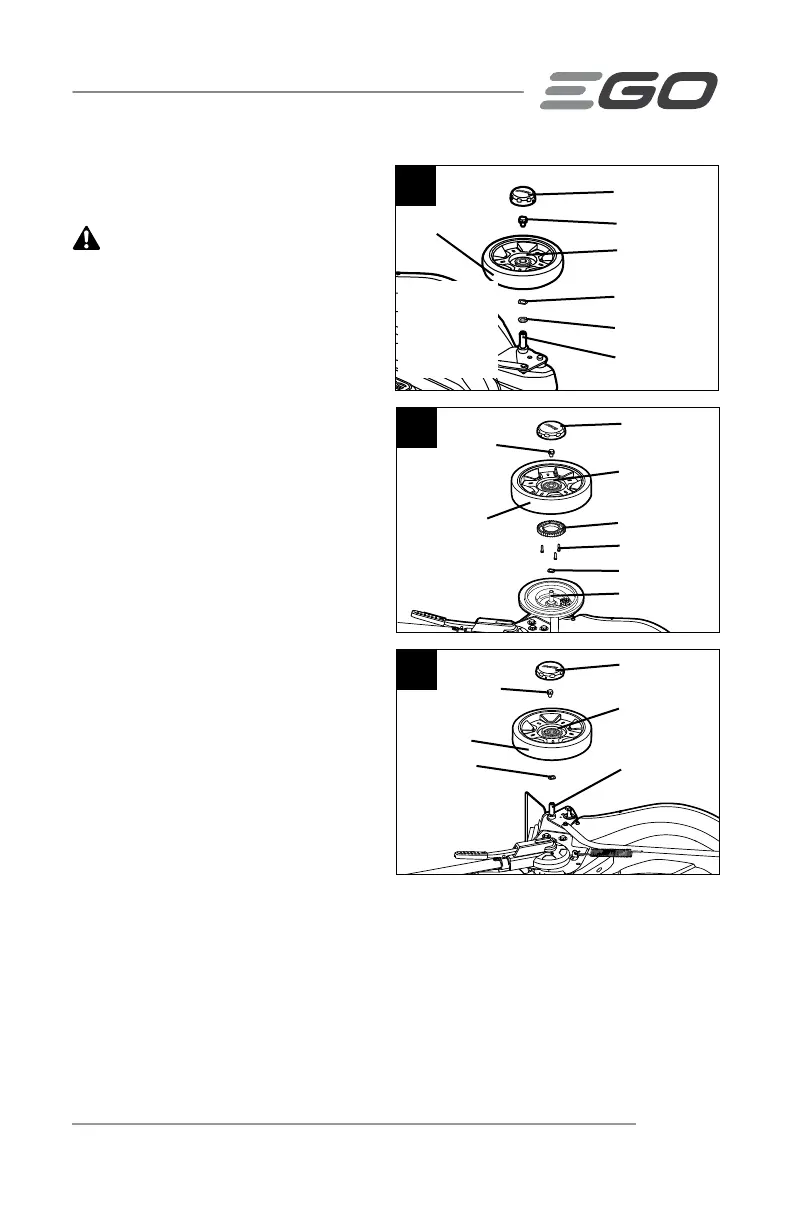

REPLACING THE WHEELS
(Fig. 32a, 32b & 32c)
WARNING:
Always remove
the battery pack when servicing or
transporting the mower.
1. Turn the mower on its side with the
upper surface against a wall.
2. Use a at blade screwdriver to pry
the dust cover away from the wheel.
3. Use an adjustable or 1/2 inch
(13mm) wrench to turn the bolt
counterclockwise to loosen it.
4. Remove the bolt, the worn wheel
and the washer(s) from the wheel
axle.
NOTICE:
◾
When replacing the rear wheel
for the self propelled mower
(LM2020SP/LM2020SP-FC), remove
the drive gear from the worn wheel
and assemble it to the new wheel
with the 3 screws.
32b
Dust Cover
Round Recess
facing outside
Rear Wheel
Bolt
Wave Washer
Screw
Drive Gear
Wheel Axle
Rear wheel for
LM2020SP/
LM2020SP-FC
32c
Dust Cover
Round Recess
facing outside
Rear Wheel
Bolt
Wave Washer
Wheel Axle
Rear wheel for
LM2020/
LM2020-FC
32a
Dust Cover
Round Recess
facing outside
Front Wheel
Bolt
Wave Washer
Plain Washer
Wheel Axle
Front wheel for
LM2020SP/
LM2020SP-FC/
LM2020/
LM2020-FC
