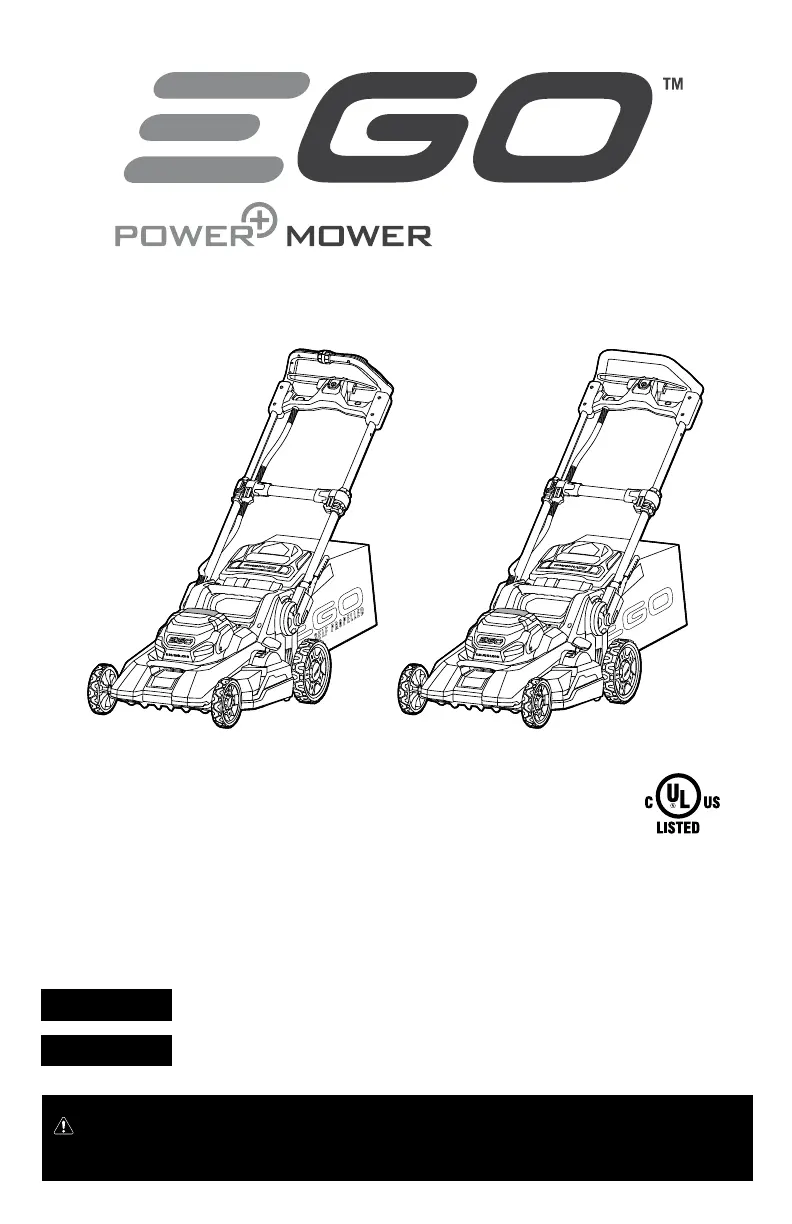

OPERATOR'S MANUAL
56-VOLT LITHIUM-ION
CORDLESS MOWER
MODEL NUMBER LM2130SP/LM2130SP-FC/
LM2130/LM2130-FC/LM2150SP/LM2150SP-FC
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
Español p. 115
Français p. 57

Questions and Answers

  • T
    Terrence SweeneyAug 15, 2025
    What to do if my Ego Power+ LM2150SP fails to start?
    • M
      Matthew GardnerAug 15, 2025
      If your Ego Power+ Lawn Mower won't start, several factors could be the cause. Begin by charging the battery pack. Ensure the battery pack is correctly mounted in the battery compartment until you hear a click. If the battery pack or mower circuitry is too hot, allow them to cool down. Make sure the side rails are fully extended and the clamps are locked. Check that the handle is engaged in one of the three operating positions. Finally, inspect the mower deck for clogs and ensure the blade moves freely.
  • H
    Heather StewartAug 18, 2025
    Why does my Ego Power+ LM2150SP Lawn Mower cut unevenly?
    • T
      Thomas KellyAug 18, 2025
      Uneven cutting with your Ego Power+ Lawn Mower can stem from a few reasons. The blade may be dull, requiring sharpening or replacement. The grass-cutting height might not be set properly, so move the deck height to a higher setting. Also, the blade could be assembled incorrectly; reassemble it.
  • S
    Sharon RodriguezAug 21, 2025
    Why doesn't my Ego Power+ LM2150SP mulch properly?
    • R
      Richard AshleyAug 21, 2025
      If your Ego Power+ Lawn Mower isn't mulching correctly, it could be due to wet grass clippings sticking to the underside of the deck; wait until the grass dries before mowing. Alternatively, the mower might be set to cut too much grass at once, so raise the deck to a higher cutting-height setting.
  • R
    rwebbAug 26, 2025
    Why is the running time of my Ego Power+ Lawn Mower short?
    • D
      David HartAug 26, 2025
      The battery run time of your Ego Power+ Lawn Mower can be affected by grass conditions and cutting-height settings. To improve the running time, raise the blade height and slow your pace to reduce the cutting load.
  • B
    Belinda RuizAug 29, 2025
    Why does my Ego Power+ LM2150SP stop while mowing?
    • A
      Andrea ClarkAug 29, 2025
      Your Ego Power+ Lawn Mower might stop mowing for several reasons. The battery pack may be depleted, so you should charge it. The mower could be in an overload condition, so raise the cutting height or slow down your mowing. The mower deck might be clogged with grass and debris, so unclog it, raise the cutting height, and/or cut a narrower swath. Also, the battery pack or mower circuitry could be too hot; allow them to cool until the temperature drops below 152°F (67°C). Finally, the side rail might be retracted; in this case, unlock the clamps, fully extend the side rails, and lock the clamps again.
  • J
    Jacqueline RoseAug 31, 2025
    Why does my Ego Power+ LM2150SP have excessive vibration?
    • D
      Destiny PetersonSep 1, 2025
      Excessive vibration in your Ego Power+ Lawn Mower can be attributed to several issues. The cutting blade might be loose, so tighten the outer nut. The cutting blade set could be unbalanced, so balance the blade set. A bent cutting blade can also cause vibration, so replace the blade. The mower could be set to cut too much grass at once, so raise the deck to a higher cutting-height setting. If the motor shaft is bent, contact the service center.
  • M
    Miss Jessica Chase MDSep 4, 2025
    What to do if handle-locking clamps cannot be closed in position on my Ego Power+ LM2150SP?
    • D
      Dr. Calvin Baker DDSSep 4, 2025
      If the handle-locking clamps on your Ego Power+ Lawn Mower cannot be closed, the side rails may not be fully extended. Fully extend the side rails, then lock the clamps.
  • E
    Edward HughesSep 7, 2025
    Why is my Ego Power+ Lawn Mower difficult to pull back?
    • A
      Amanda TorresSep 7, 2025
      If your Ego Power+ Lawn Mower is difficult to pull back when the self-propel is turned off, the wheels are temporarily locked. Simply push ahead slightly and then move the mower as desired.
  • M
    Melissa DiazSep 12, 2025
    Why motor works but the blade doesn’t cut the grass on my Ego Power+ LM2150SP Lawn Mower?
    • S
      Stephanie SimmonsSep 12, 2025
      If the motor of your Ego Power+ Lawn Mower works but the blade doesn’t cut grass, the blade is not tightened to the required torque. Re-tighten the blade to the recommended torque of 36-43 ft-lb (49-59Nm).

Summary

SAFETY SYMBOLS

SAFETY RULES FOR CORDLESS LAWN MOWER

CHILDREN

Provides specific safety guidelines regarding children and mower operation.

OPERATION ON A SLOPE

Outlines precautions and procedures for safely operating the mower on slopes.

INTRODUCTION

SPECIFICATIONS

PACKING LIST

ACCESSORIES

DESCRIPTION

ASSEMBLY

UNPACKING

Guides the user through the initial process of removing and inspecting the mower from its packaging.

ASSEMBLING THE GRASS BAG

Provides step-by-step instructions for assembling the grass bag for use with the mower.

ADJUSTING THE FOLDABLE HANDLE

Explains how to adjust and lock the mower's handle into different positions for operation or storage.

CUTTING-HEIGHT ADJUSTMENT

OPERATION

STARTING;STOPPING THE MOWER

Details the procedures for safely starting and stopping the lawn mower's motor.

VARIABLE-SPEED SELF-PROPEL SYSTEM

Explains how to use and adjust the variable-speed self-propel feature of the mower.

MOWER-STATUS INDICATOR

Explains the function of the mower-status indicator for battery level and working status.

MOWER PROTECTION FEATURES

MOWER OVERLOAD PROTECTION

Explains the mower's overload protection and how to respond to it.

BATTERY HIGH-TEMPERATURE PROTECTION

Describes the battery high-temperature protection and actions to take.

MOWING TIPS

SLOPE GAUGE

Explains how to use the slope gauge to assess and avoid dangerous mowing slopes.

MULCHING TIPS

MAINTENANCE

CLEANING THE MOWER

Provides instructions on how to clean the lawn mower, especially the deck underside.

SHARPENING THE BLADE

Explains how to sharpen the mower blade to maintain optimal cutting performance.

LUBRICATION

Details the lubrication points and schedule for the lawn mower.

REPLACING THE WHEELS

Provides instructions for removing and replacing the mower's wheels.

STORING THE MOWER

TROUBLESHOOTING

WARRANTY

Ego Power+ LM2150SP Specifications

General IconGeneral
BrandEgo Power+
ModelLM2150SP
CategoryLawn Mower
LanguageEnglish
