56-VOLT LITHIUM-ION CORDLESS MOWER — LM2020SP/LM2020SP-FC/LM2020/LM2020-FC44

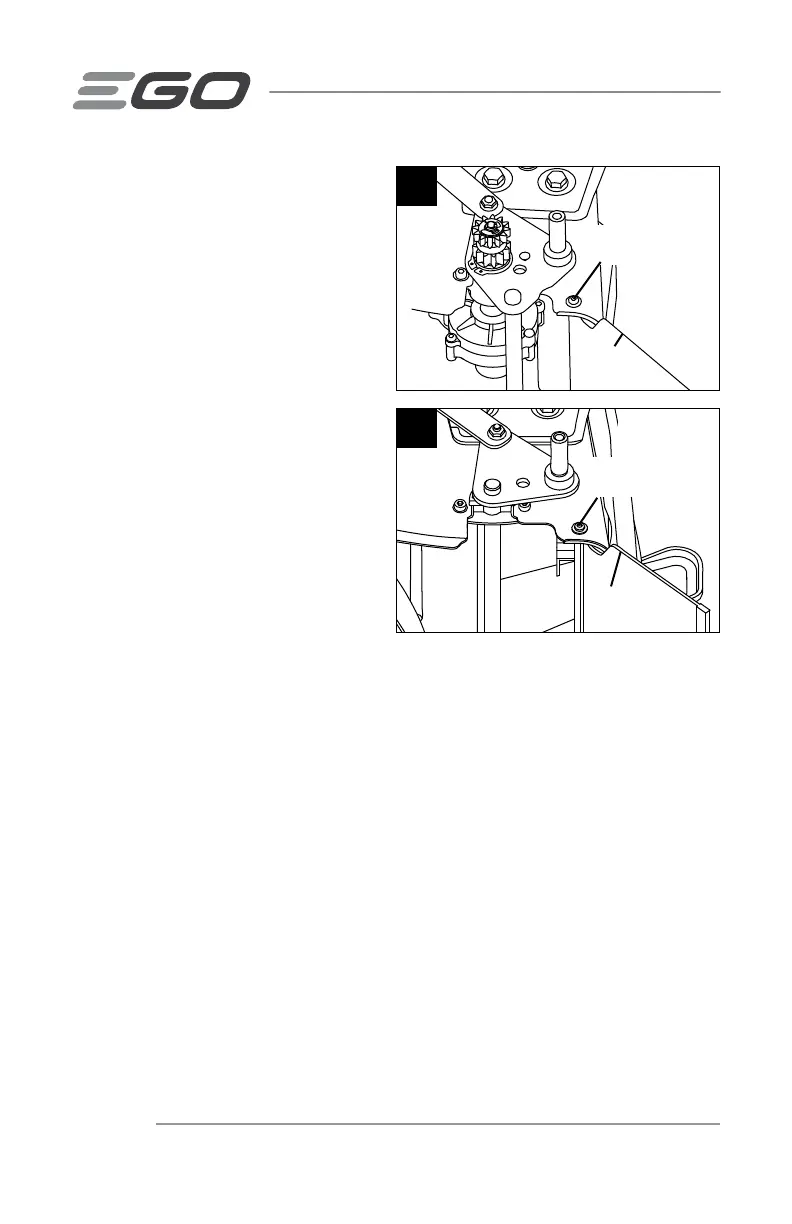

6. Loosen the locking screw for the
trailing shield on both sides; remove
the worn trailing shield and the
at washer. Save the washer for
reassembly (Fig. 34a & 34b).
7. Replace with a new trailing shield
and attach it with the two locking
screws and at washers.
34a
Locking Screw For
Trailing Shield
For LM2020SP/
LM2020SP-FC
Trailing
shield
34b
For LM2020/
LM2020-FC
Locking Screw For
Trailing Shield
Trailing
shield
