During drive gear mounting, the
surface of the gear stating "OUT"
should face toward outside
(Fig. 32d).
5. Mount the washer(s) and the new
wheel on the wheel axle. Note that
the round recess must face outward.
6. Lock the wheel with the bolt by
tightening the bolt clockwise.
7. Mount the dust cover onto the wheel
and press it in place.

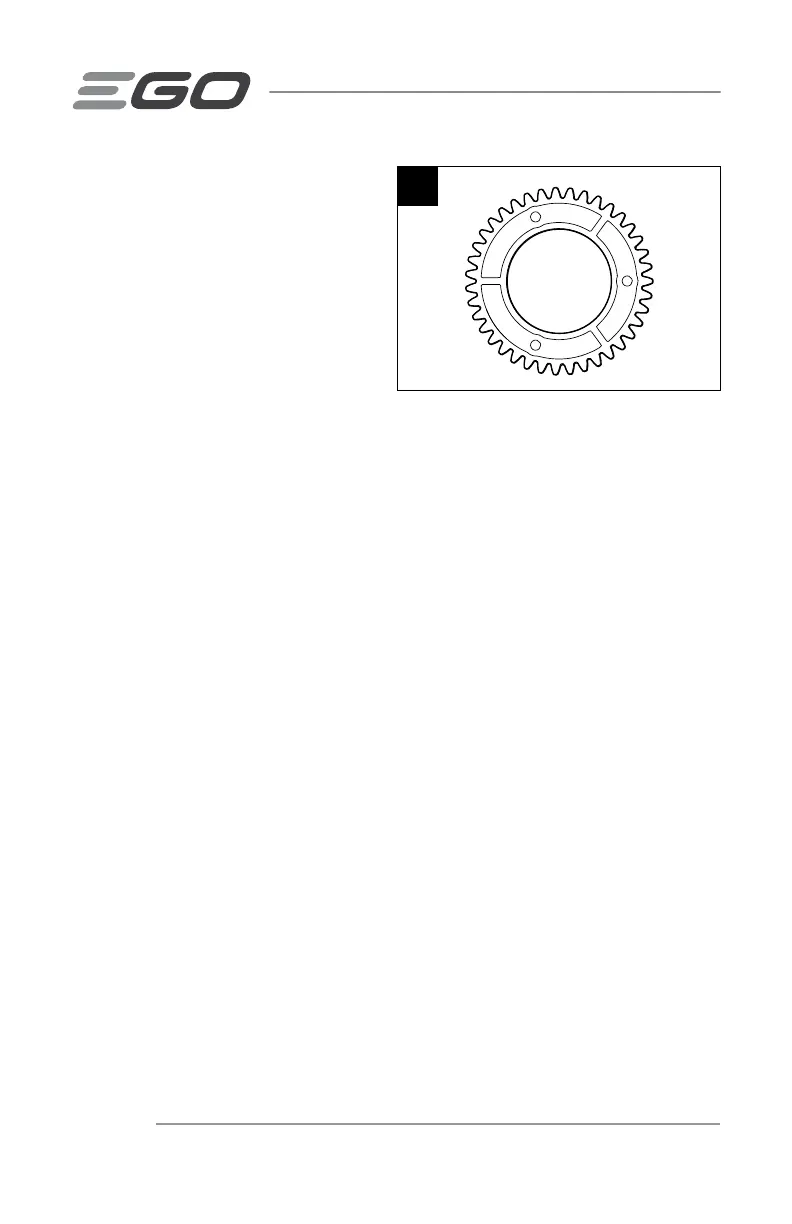

OUT
