Ego Power+ LM2160SP - REPLACING THE TRAILING SHIELD; Procedure for Replacing the Trailing Shield

56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2160SP/LM2160SP-FC52
REPLACING THE TRAILING
SHIELD
WARNING:
Always remove
the battery pack when servicing or
transporting the mower.
WARNING:
Never operate the
mower unless the trailing shield is in
place and working. Never operate the
mower with damaged safety devices.
Failure to do so can result in personal injury. The trailing shield is subject to wear and
damage, which could expose moving parts or allow objects to be thrown. For safety
protection, frequently check the trailing shield and replace it immediately with only the
identical replacement part, listed in this manual.
1. Remove the battery.
2. Turn the mower on its side with the upper surface against the wall.
3. Loosen and remove the three locking screws for the trailing shield; remove the
worn trailing shield (Fig. 38).
4. Replace with a new trailing shield and attach it with the three locking screws.

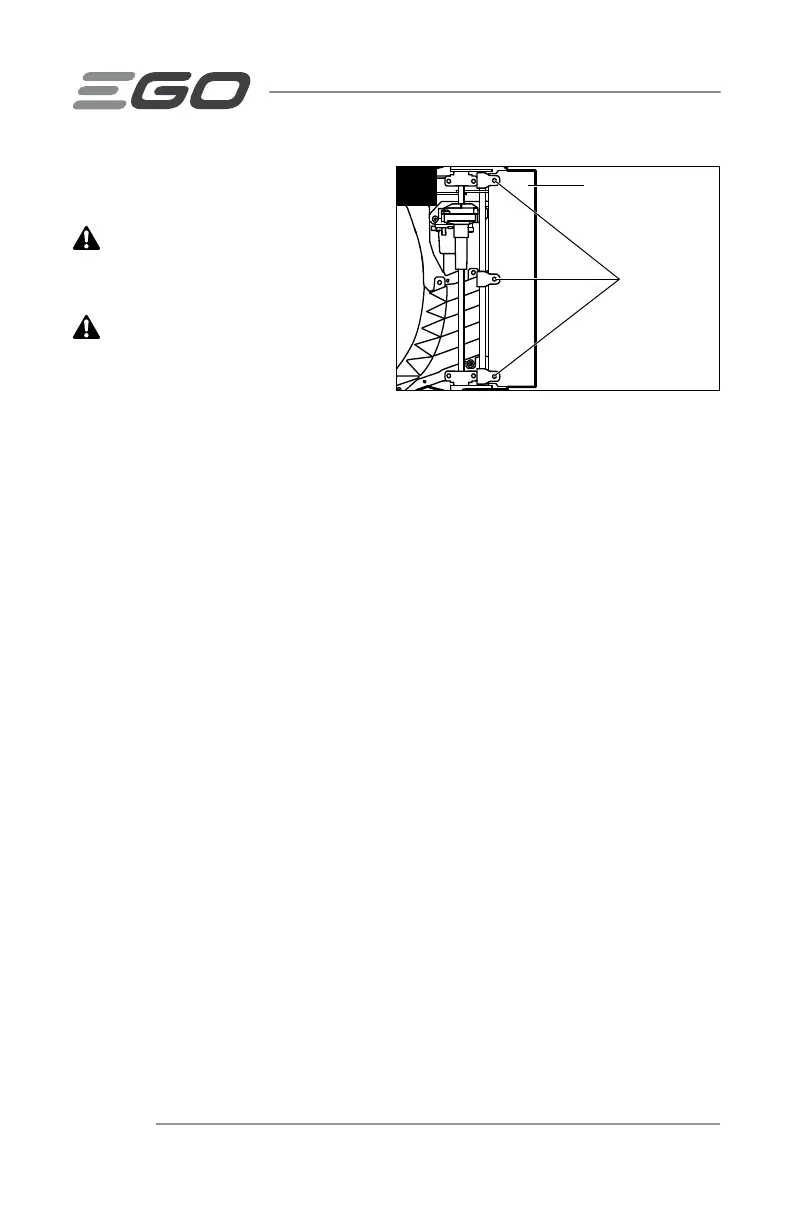

38
Locking screw
Trailing shield
