MULCHING KIT — ABP52008

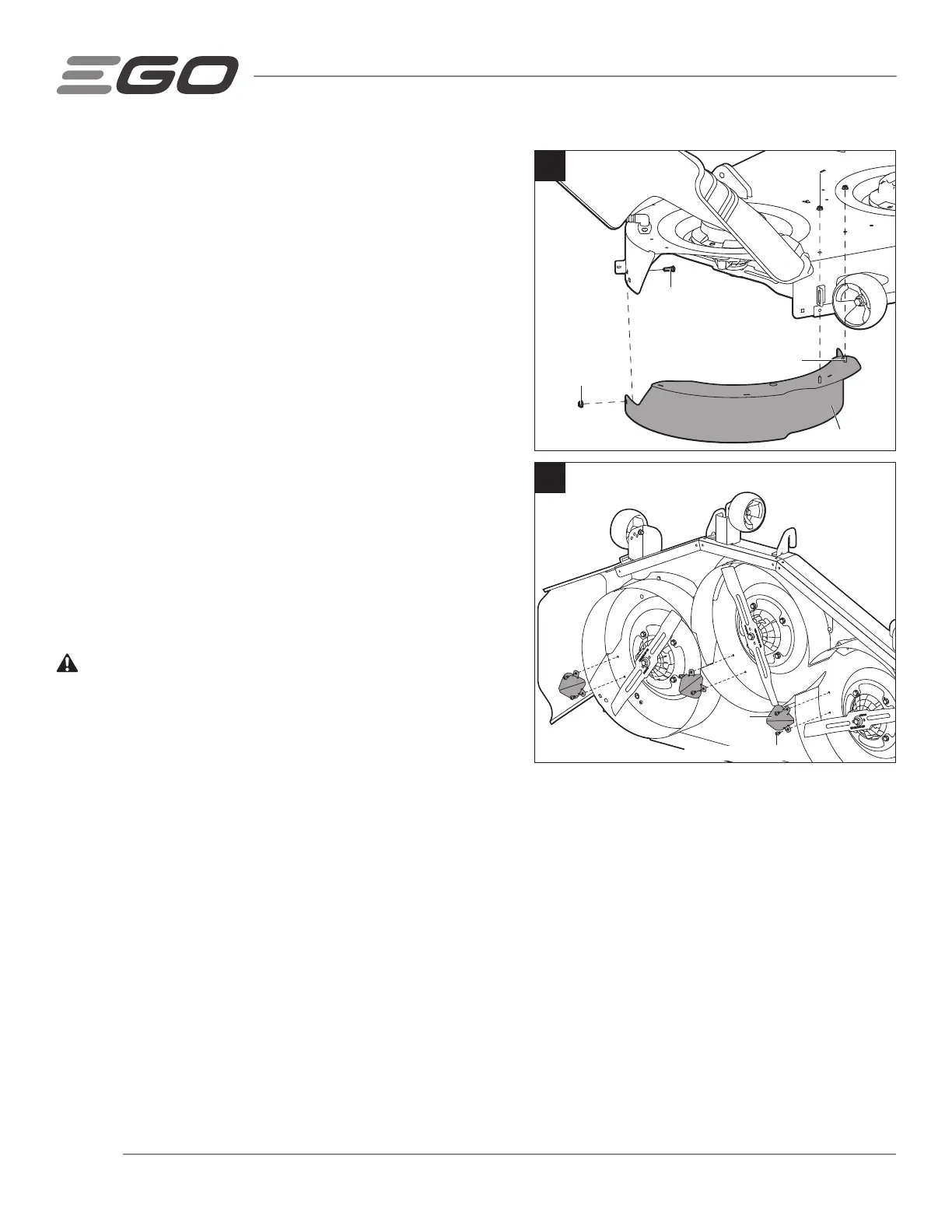

5. Attach the right baffle to the mower deck
- Use two lock nuts to secure the welded posts of the right baffle
to the underside of the mower deck at positions shown in Fig. 7.
Finger-tighten the lock nuts.
- Install a carriage bolt and a lock nut through the side-wall hole
of the mower deck and the baffle to secure the right baffle to
the mower deck.
- Securely tighten all three lock nuts by an impact wrench with
a 3/8 in (10mm) socket (not included).
6. Attach the three kickers to the mower deck
- Align the two holes in one of the kickers with the holes in the
mower deck, insert two Torx self-tapping screws as shown in
Fig. 8.
- Securely tighten the two screws with a Torx T30 screwdriver
(not included).
- Install the other two kickers to the mower deck in the same
way.
7. Reassemble the mower deck onto the mower
- After the installation of the mulching kit is complete,
reassemble the mower deck onto the mower in the reverse
order.
WARNING:
The baffle bar under the side-discharge chute
must be removed in order to install and use the mulching kit, and
must be re-installed when the mulching kit is removed.
7
Lock Nut
Lock Nut
Carriage Bolt
Welded post
Right Baffle
8
Kicker
Torx Self-tapping Screw
To Next Page
